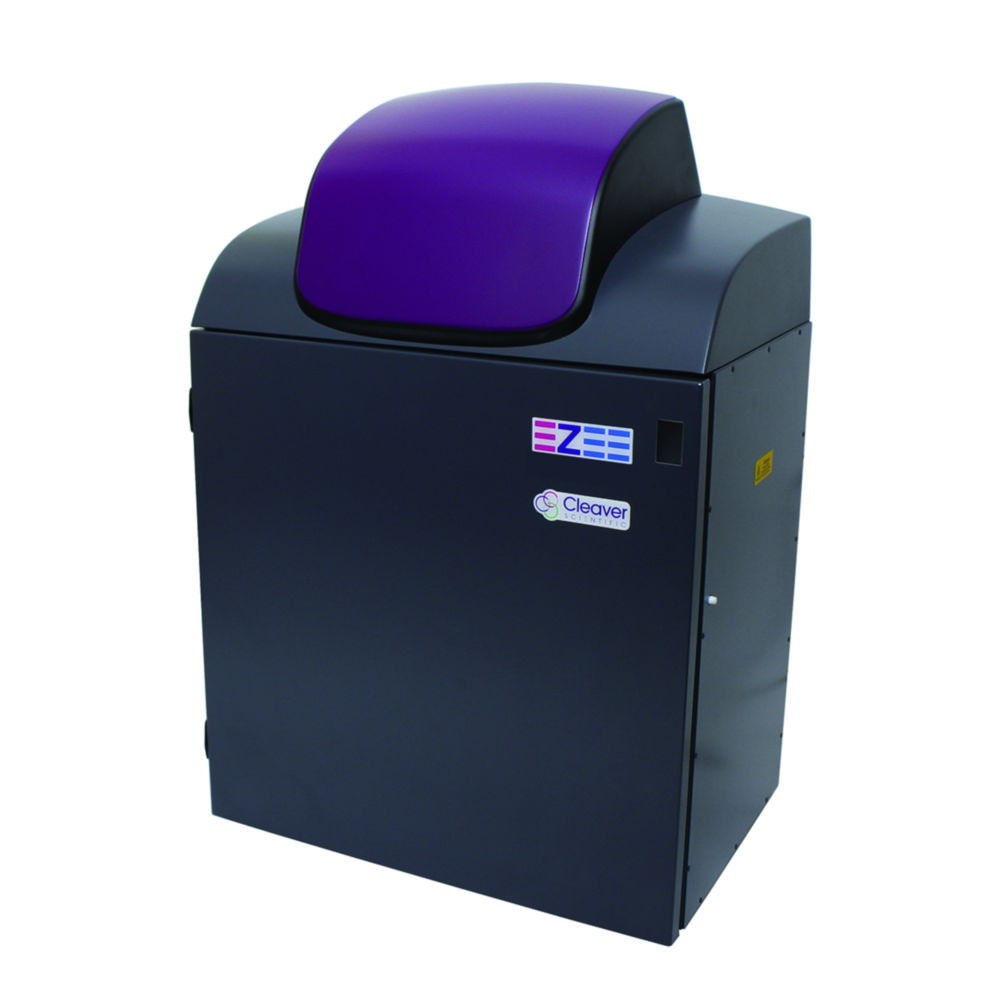

Gel documentation system gelPRO-302E

An entry level system for routine fluorescence and gel documentation. Suitable for DNA gels, protein gels, colony counting, colorimetric blots and films. Spacious darkroom for viewing gels up to 25 x 30 cm. Internal lighting comes from a UV transilluminator or a white or blue light LED module. This system can be upgraded to a chemiluminescence imager.

• High resolution 5 MP camera for good spatial resolution
• Effective resolution up to 15.1 MP
• Motor driven zoom lens and filter wheel
• Integral white LED lighting for sample positioning, visible light applications and colorimetric markers
• Pre-defined 1-click protocols for rapid imaging
• Genepix automatic control software
• Unlimited user saveable protocols
• Can be used in a 21 cfr part 11 compliant environment

Scope of supply:
Darkroom, camera, UV transilluminator, UV emission filter, license free acquisition and analysis software

• Specifications
• Resolution: 5 megapixels
• Effective resolution: 15.1 megapixels
• Lens: Zoom, f1.2 with lens feedback
• Sensor bit-depth: 12/16 bit
• Greyscales: 65536
• Dynamic range: 4.8
• Transilluminator wavelength: 302 nm
• Transilluminator size: 250 x 300 mm
• Dimensions (W x D x H): 570 x 450 x 840 mm
• Weight: 37 kg
• Power supply: 230 V/50 Hz
