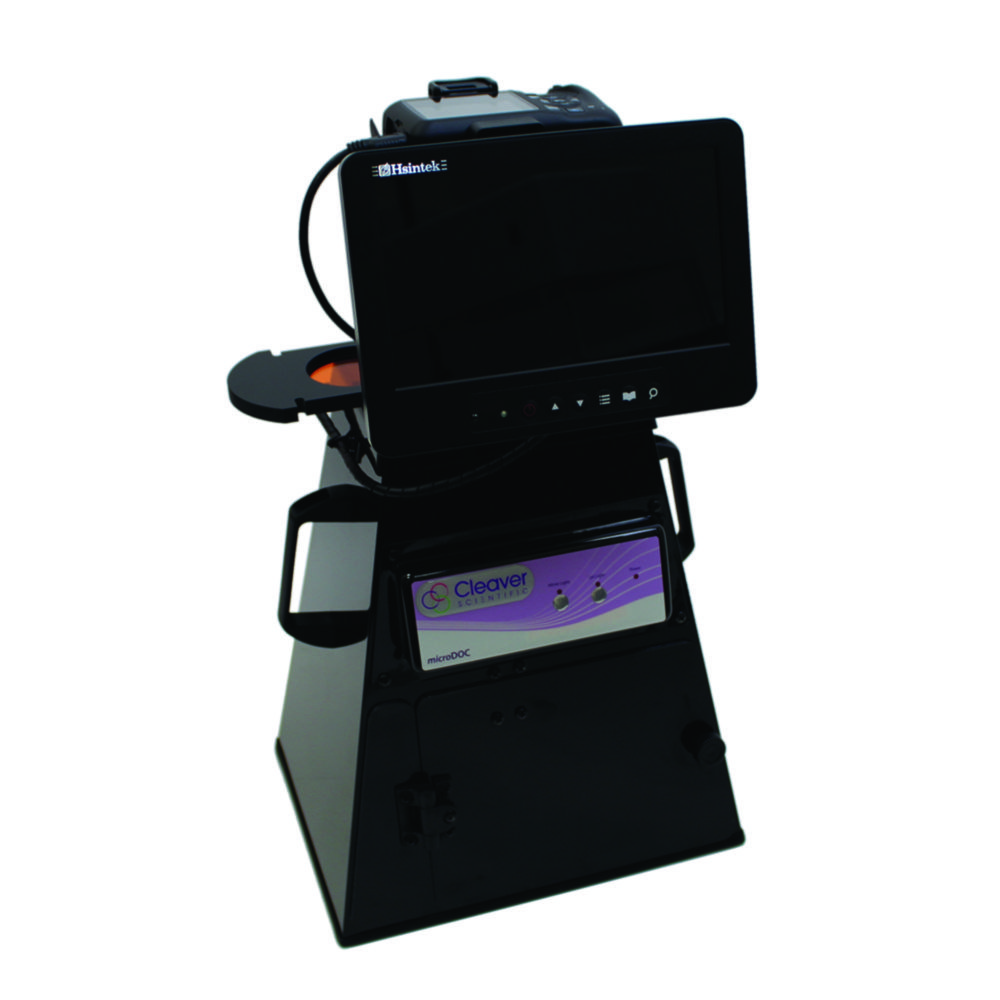

Gel documentation system microDOC
Recently upgraded with a new 24.1 megapixel digital CMOS camera to guarantee superb resolution, the microDOC is the researcher’s choice for a simple ultra-compact gel documentation system that meets constraints in both budget and space within the laboratory. A large 8″ TFT screen enables images, including agarose and fluorescent gels, colorimetric gels, autoradiography film and blotting membrane, to be captured clearly and easily. The system is computer-free and supplied with an 8 GB storage card and 58 mm ethidium bromide filter as standard, while an optional SYBR filter is also available. Files are saved onto the storage card in RAW, TIFF-RGB and JPEG formats and may be transferred to computer for analysis with the highly recommended TotalLab™ 1D software.
Camera:
- File Format Design rule for Camera File system, DPOF (version 1.1) compliant
- Focus-Area Selection AF mode and manual focus are available
- Hood
- Multi-Power Source for camera, Inner light lamp, TFT screen
- Safety Door Switch Automatically disconnects UV transilluminator, while opening the chamber door during operation
- With Video and Audio Input
Toote variatsioonid
| Catalog number | PK | Depth | Dimensions (WxDxH) | Height | Lens | Light type | Max. voltage | Min. voltage | Power supply | Sensor | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.231 823 | 1.00 | 325 mm | 290 x 325 x 515 mm | 515 mm | Canon EF/EF-S 18-55 mm | LED | 220 V | 110 V | 110 ... 220 V, 50/60 Hz | CMOS | microDOC | 7.7 kg | 290 mm |
