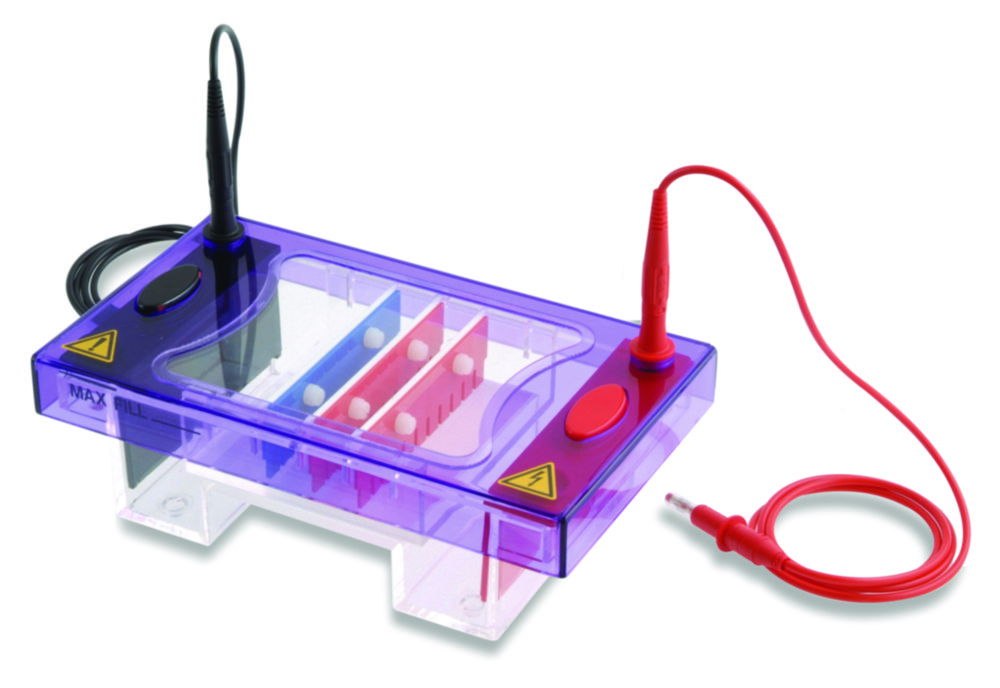

Gel electrophoresis tank MultiSUB Midi
Extending only the width of this unit allows more samples to be resolved per gel than the MultiSUB Mini without a significant increase in buffer or gel volumes. A maximum of 100 samples per gel can be resolved making this unit ideal for those routinely checking medium numbers of samples over short to medium gel run lengths.
Supplied with:
MultiSUB Midi 7: 10 x 7 cm UV tray, 2 x 16 sample combs.
MultiSUB Midi 10: 10 x 10 cm UV tray, 2 x 16 sample combs.
MultiSUB Midi DUO: 10 x 7 cm + 10 x 10 cm UV tray, 2 x 16 sample combs.
Each model has additional loading guides and dams.
- Specifications
- Gel dimensions (W x L): 10 x 7 cm and 10 x 10 cm
- Unit dimensions (W x L x H): 22 x 12.5 x 9 cm
-
Max. sample capacity: 10 x 7 cm tray, 50 samples
10 x 10 cm tray, 100 samples - Buffer volume: 300 ml
Toote variatsioonid
| Catalog number | PK | Depth gel | Depth | Dimensions (WxDxH) | Gel (WxD) | Height | Nominal capacity | Type | Width gel | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.228 823 | 1.00 | 100 mm | 220 mm | 125 x 220 x 90 mm | 100 x 100 mm | 90 mm | 300 ml | MultiSUB Midi 10 | 100 mm | 125 mm | ||
| 6.265 449 | 1.00 | 70 mm | 220 mm | 125 x 220 x 90 mm | 100 x 70 mm | 90 mm | 300 ml | MultiSUB Midi 7 | 100 mm | 125 mm | ||
| 6.238 115 | 1.00 | - | 220 mm | 125 x 220 x 90 mm | - | 90 mm | 300 ml | MultiSUB Midi DUO | - | 125 mm |
