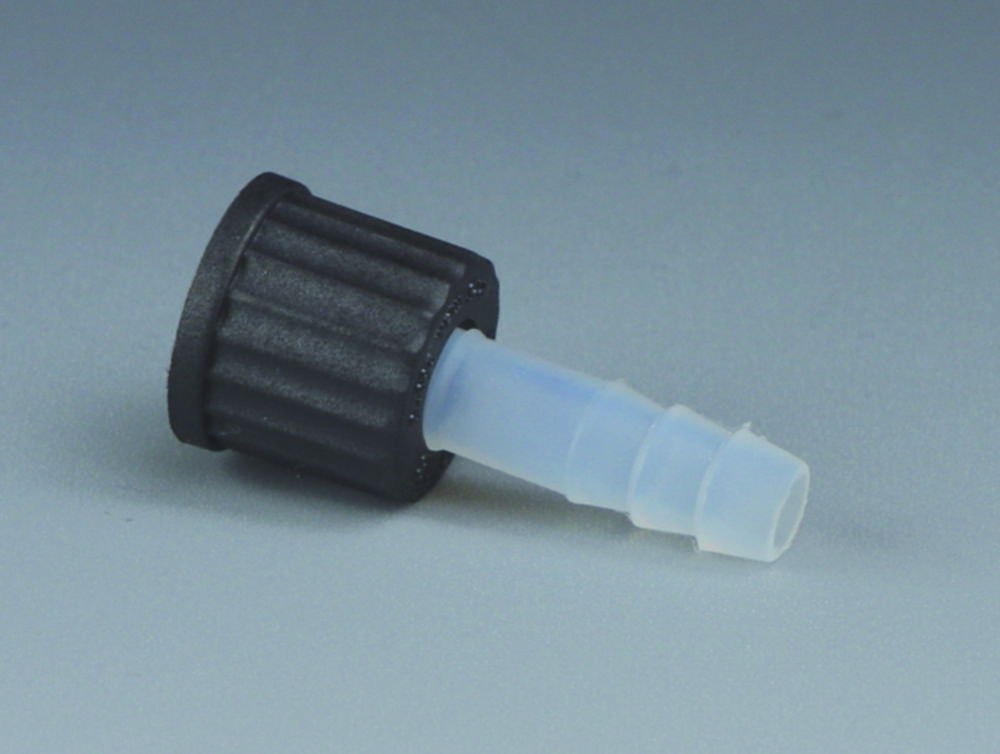

GL screwthread ferrules, straight
Screw connector caps made of PPS, ferrules GL14 and GL18 made of PFA, GL25 and GL32 made of PTFE, with flexible sealing rim and FKM O-ring. When in use, the contents only come into contact with PFA or PTFE.
Toote variatsioonid
| Catalog number | PK | Ext. Ø | Int. Ø | Overall length | Shape (Glass components) | Thread | Kogus | |
|---|---|---|---|---|---|---|---|---|
| 9.051 320 | 1.00 | 8.7 mm | 6.0 mm | 45 mm | Straight | GL14 | ||
| 9.051 323 | 1.00 | 21.0 mm | 16.0 mm | 80 mm | Straight | GL32 | ||
| 9.051 321 | 1.00 | 10.4 mm | 7.0 mm | 51 mm | Straight | GL18 | ||
| 9.051 322 | 1.00 | 16.0 mm | 10.0 mm | 68 mm | Straight | GL25 |
