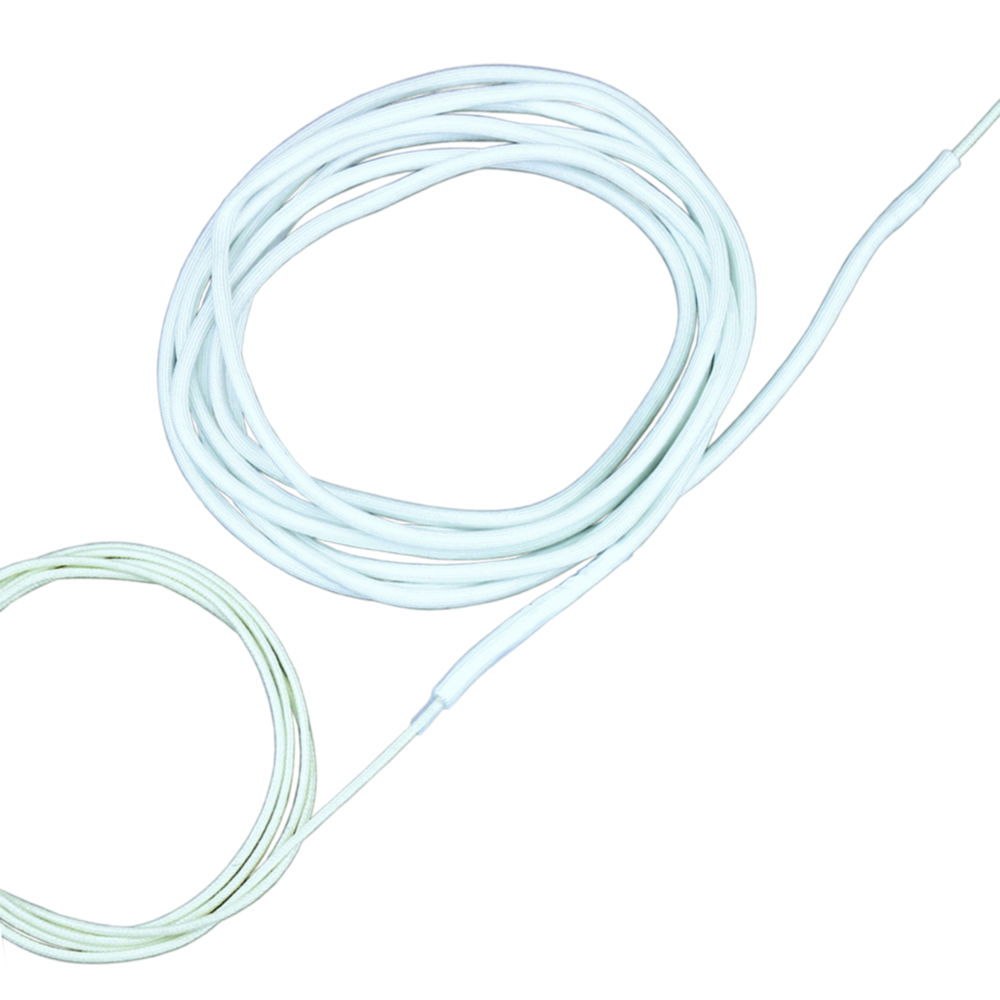

Glass fibre-insulated heating cables series KM-HC-G
LabHEAT®-Heating cables. No protection against ingress of water; glass fibre insulation without protective braiding; outer diameters from 3.5 to 4.5 mm; min. bending radius > 5 mm; max. heating element temperature 450 °C; preterminated with 2 x 1.5 m cold end.
Toote variatsioonid
| IP code | Length | Max. temperature | Max. voltage | Catalog number | Power supply | Rated capacity | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|
| IP 20 | 2.0 m | 450 °C | 230 V·AC | 9.642 753 | 230 V·AC | 300 W | 1.00 | ||
| IP 20 | 1.0 m | 450 °C | 230 V·AC | 9.642 751 | 230 V·AC | 150 W | 1.00 | ||
| IP 20 | 4.0 m | 450 °C | 230 V·AC | 9.642 756 | 230 V·AC | 600 W | 1.00 | ||
| IP 20 | 5.0 m | 450 °C | 230 V·AC | 9.642 757 | 230 V·AC | 750 W | 1.00 | ||
| IP 20 | 3.0 m | 450 °C | 230 V·AC | 9.642 755 | 230 V·AC | 450 W | 1.00 | ||
| IP 20 | 6.0 m | 450 °C | 230 V·AC | 9.642 758 | 230 V·AC | 900 W | 1.00 | ||
| IP 20 | 2.5 m | 450 °C | 230 V·AC | 9.642 754 | 230 V·AC | 375 W | 1.00 | ||
| IP 20 | 1.5 m | 450 °C | 230 V·AC | 9.642 752 | 230 V·AC | 225 W | 1.00 | ||
| IP 20 | 0.5 m | 450 °C | 230 V·AC | 9.642 750 | 230 V·AC | 75 W | 1.00 |
