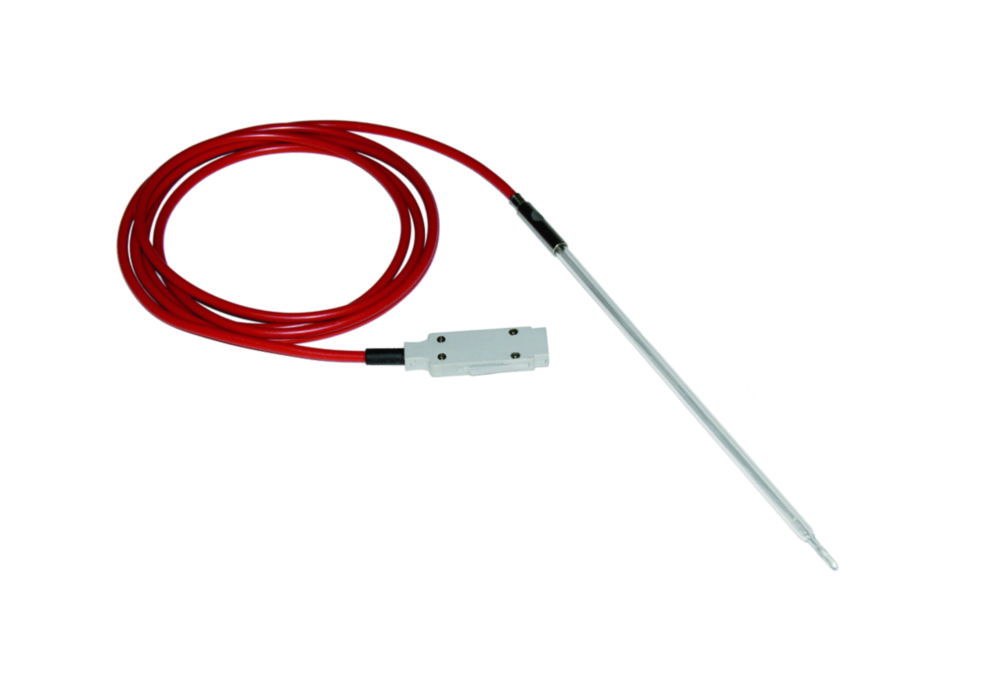

Glass sensor Pt 100 with adapter sleeve for PHYSICS 100
- Resistance temperature probes Pt 100, class A, 4-wire connection
- Connection-wire teflon/silicone isolated, with PHYSICS-Plug
- Probe made of glass N 16 B
- Instrument and thermometer combination, optional, available with calibration
Toote variatsioonid
| Catalog number | PK | Accuracy class | Cable length | Ø | Length | Material | Max. temperature | Min. temperature | Resolution | Temperature | Type of probe | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.273 450 | 1.00 | A | 2 m | 6 mm | 150 mm | Glass | 250 °C | -50 °C | 0.01 °C | -50 ... 250 °C | Pt 100 | ||
| 6.273 453 | 1.00 | A | 2 m | 6 mm | 300 mm | Glass | 250 °C | -50 °C | 0.01 °C | -50 ... 250 °C | Pt 100 | ||
| 6.273 451 | 1.00 | A | 2 m | 6 mm | 200 mm | Glass | 250 °C | -50 °C | 0.01 °C | -50 ... 250 °C | Pt 100 | ||
| 6.273 452 | 1.00 | A | 2 m | 6 mm | 250 mm | Glass | 250 °C | -50 °C | 0.01 °C | -50 ... 250 °C | Pt 100 | ||
| 6.273 454 | 1.00 | A | 2 m | 6 mm | 350 mm | Glass | 250 °C | -50 °C | 0.01 °C | -50 ... 250 °C | Pt 100 |
