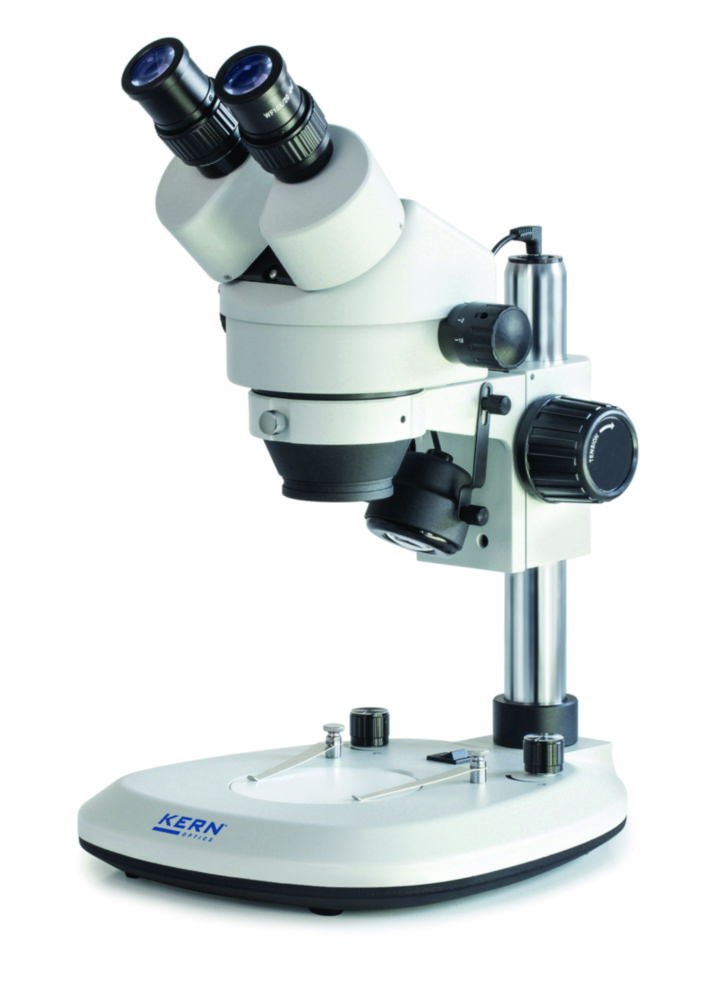

Greenough Stereo Microscopes Lab-Line OZL
The flexible all-rounder with zoom function for schools, training companies, inspection authorities and laboratories.
- Tube 45° inclined
- Wide Field HWF 10x/20 mm
- Diopter adjustment: Both-sided
- Illumination: 3 W-LED Incident and 3 W-LED transmitted, seperately dimmable
- Interpupillary distance 55 to 75 mm
- Large selection of eyepieces, external illumination units as well as auxiliary objectives are available as accessories
- OZL 466 with strong, continuously dimmable, integrated LED ring illumination in the objective housing
- OZL 468 with integrated handle and stable, mechanical stand
- Protective dust cover, eye piece rubber caps, as well as multi-lingual user instructions included in the scope of supply
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | Light type | Max. voltage | Min. voltage | Objective system | Catalog number | Power supply | Tube | Type | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 240 mm | 300 x 240 x 420 mm | 420 mm | LED | 240 V | 100 V | Zoom | 6.286 168 | 100 ... 240 V | Trinocular | OZL 464 | 300 mm | 1.00 | ||
| 240 mm | 300 x 240 x 420 mm | 420 mm | LED | 240 V | 100 V | Zoom | 6.319 061 | 100 ... 240 V | Binocular | OZL 465 | 300 mm | 1.00 | ||
| 235 mm | 230 x 235 x 360 mm | 360 mm | LED | 240 V | 100 V | Zoom | 4.657 869 | 100 ... 240 V | Binocular | OZL 445 | 230 mm | 1.00 | ||
| 240 mm | 300 x 240 x 420 mm | 420 mm | LED | 240 V | 100 V | Zoom | 4.670 714 | 100 ... 240 V | Trinocular | OZL 468 | 300 mm | 1.00 | ||
| 240 mm | 300 x 240 x 420 mm | 420 mm | LED | 240 V | 100 V | Zoom | 4.679 951 | 100 ... 240 V | Trinocular | OZL 466 | 300 mm | 1.00 | ||
| 240 mm | 300 x 240 x 420 mm | 420 mm | LED | 240 V | 100 V | Zoom | 6.286 167 | 100 ... 240 V | Binocular | OZL 463 | 300 mm | 1.00 |
