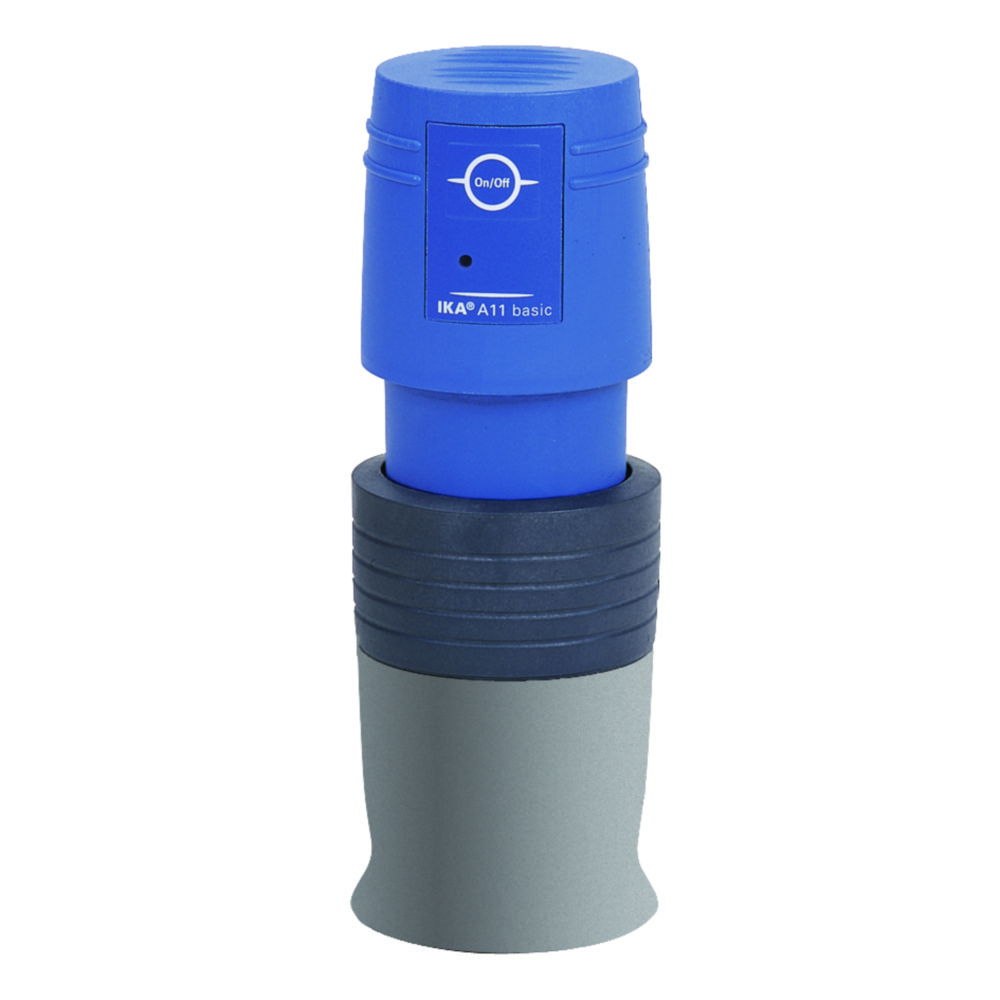

Grinding mill, A11 basic
Batch mill for 2 different grinding procedures:
Impact grinding of hard, brittle or non-elastic grinding materials with high-grade stainless steel beater. This beater can be used for a Mohs hardness up to 6 (incl. with delivery). Cutting grinding for pulverizing soft, fibrous materials with a cutting blade (not incl. with delivery).
- Moist and gluey materials can be pulverized by adding water
- Grinding chamber made of Tefcel (PTFE, glass fibre-reinforced) with stainless steel inlet (1.4571), useful volume 80ml (incl. with delivery). For embrittlement of grinding materials with liquid nitrogen in the grinding chamber
- Optionally, a 250ml grinding chamber is available
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Feed quantity | Height | IP code | Max. feed quantity | Max. speed | Max. voltage | Catalog number | Plug type | Power supply | Speed | Type | Weight | Width | PK | Rated capacity | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 85 mm | 85 x 85 x 240 mm | 80 ml | 240 mm | IP 43 | 80 ml | 28000 1/min | 230 V·AC | 4.008 002 | CH | 230 V·AC, 50/60 Hz | 28000 1/min | A 11 basic | 1.5 kg | 85 mm | 1.00 | - | ||
| 85 mm | 85 x 85 x 240 mm | 80 ml | 240 mm | IP 43 | 80 ml | 28000 1/min | 230 V·AC | 6.202 305 | UK | 230 V·AC, 50/60 Hz | 28000 1/min | A 11 basic | 1.5 kg | 85 mm | 1.00 | 0.1 kW | ||
| 85 mm | 85 x 85 x 240 mm | 80 ml | 240 mm | IP 43 | 80 ml | 28000 1/min | 230 V·AC | 9.737 801 | EU | 230 V·AC, 50/60 Hz | 28000 1/min | A 11 basic | 1.5 kg | 85 mm | 1.00 | 0.1 kW |
