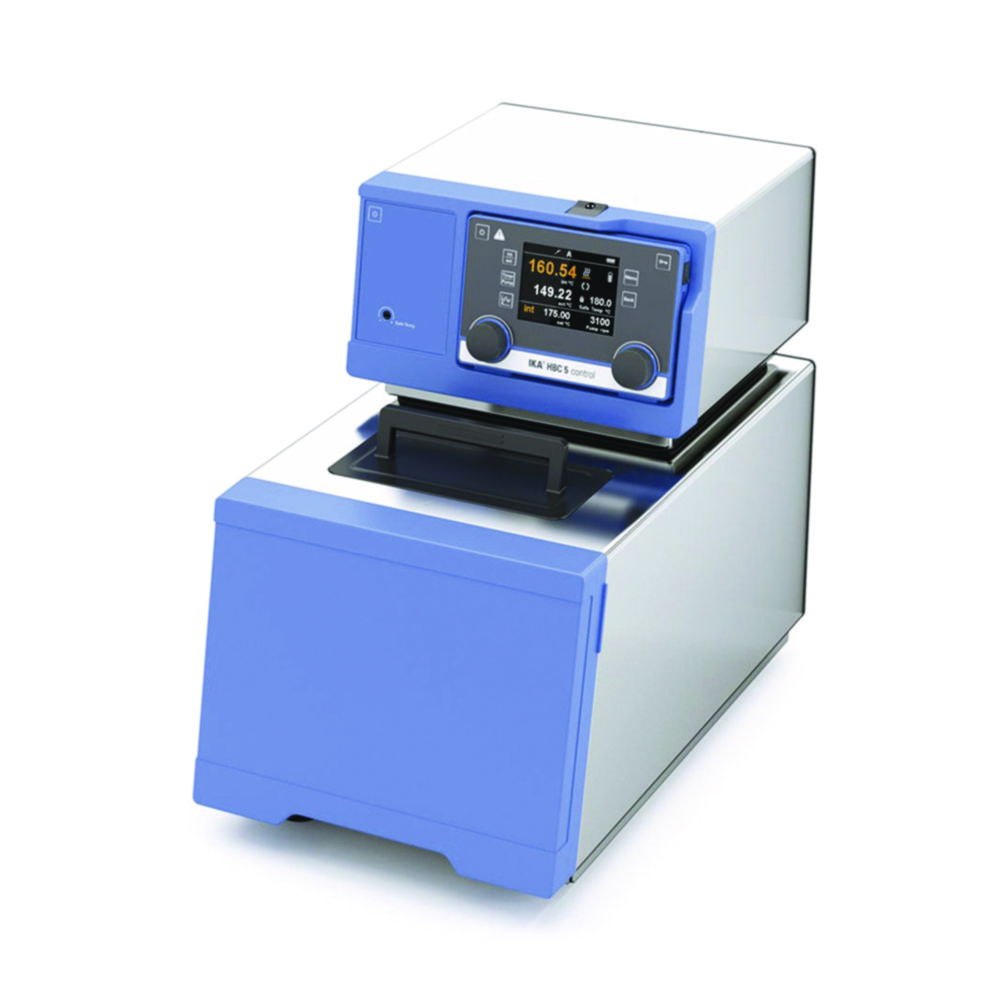

Heated bath circulators HBC control, with stainless steel bath

Heated bath circulators with stainless steel bath for operating temperatures up to 250 °C. Easy switching between internal and external control. With integrated cooling coil and powerful pressure and suction pump in a housing made of temperature and chemical resistant plastic. The large surface of the radiator allows for an optimum heat exchange, even heating of the medium and very fast heat-up times. The bath is easy to clean and has a drain valve with hose connection on the front for draining the bath. Can be operated with flammable liquids.

Adjustable safety circuit

Simple menu navigation with push buttons and rotary knobs

Visual and audible warning functions

USB/RS 232 interface

With removable TFT display for controlling and monitoring the device parameters. The display can be used as a remote control, e.g. in a fume hood

With timer function

A solenoid valve can be connected

Toote variatsioonid

Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	IP code	Material bath	Max. flow rate	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	atr_llg_min_volume_bath	Catalog number	Power supply	Temp. Stability	Temperature	Temperature	Type	Type of display	Volume bath	Weight	Width opening	With timer	PK	Kogus
82 mm	275 x 500 x 406 mm	500 mm	406 mm	275 mm	2500 W	IP 21	Stainless steel		0.45 bar	250 °C	230 V	7 l	-10 °C	5 l	9.720 320	230 V, 50...60 Hz	0,01 K	RT	RT+10 ... 250 °C	HBC 5 control	TFT	5 ... 7 l	17.3 kg	172 mm	Yes	1.00
82 mm	275 x 506 x 456 mm	506 mm	456 mm	275 mm	2500 W	IP 21	Stainless steel		0.45 bar	250 °C	230 V	11 l	-10 °C	8 l	9.720 322	230 V, 50...60 Hz	0,01 K	RT	RT+10 ... 250 °C	HBC 10 control	TFT	8 ... 11 l	18.3 kg	172 mm	Yes	1.00
