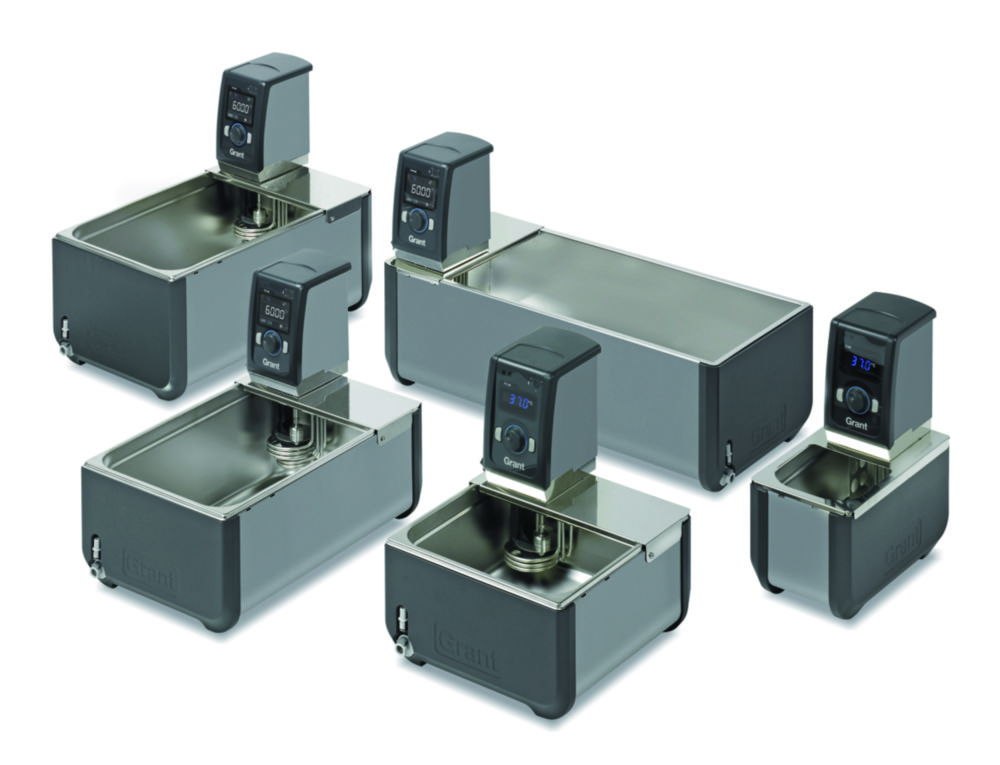

Heated circulating baths with stainless steel tank Optima™ TXF200-ST series
For sophisticated applications requiring complex programming and ultra-precise temperature control in a setting range from -15 to 200 °C.
- Powerful integral pump for external fluid circulation
- Large, bright full colour display with a choice of 5 languages
- 5 point user calibration
- Low-liquid detection (float switch)
- Memory capacity for 10 programs with 100 segments
Scope of supply: Thermostat, bridge plate, stainless steel tank
For cooling below ambient temperature, please order cooler separately.
Toote variatsioonid
| Ext. depth | Ext. height | Ext. width | Heating capacity | Catalog number | Plug type | Temp. Stability | Type | Waranty | Weight | PK | Bath depth | Depth opening | External dimensions (WxDxH) | Material bath | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Power supply | Temperature | Volume bath | Width opening | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 535 mm | 465 mm | 330 mm | 2000 W | 9.699 670 | EU | ±0.01 °C | TXF200-ST26 | 3 years | 10.3 kg | 1.00 | 190 mm | 501 mm | 330 x 535 x 465 mm | Stainless steel | 200 °C | 230 V | 26 l | 5 °C | 230 V, 50...60 Hz | -5 ... 200 °C | 26 l | 300 mm | ||
| 335 mm | 415 mm | 280 mm | 1400 W | 9.699 667 | EU | ±0.01 °C | TXF200-ST5 | 3 years | 5.8 kg | 1.00 | 150 mm | 280 mm | 280 x 335 x 415 mm | Stainless steel | 200 °C | 230 V | 5 l | -15 °C | 230 V, 50...60 Hz | +15 ... 200 °C | 5 l | 150 mm | ||
| 360 mm | 415 mm | 330 mm | 1400 W | 9.699 668 | EU | ±0.01 °C | TXF200-ST12 | 3 years | 7.3 kg | 1.00 | 150 mm | 280 mm | 330 x 360 x 415 mm | Stainless steel | 200 °C | 230 V | 12 l | 5 °C | 230 V, 50...60 Hz | -5 ... 200 °C | 12 l | 300 mm | ||
| 535 mm | 415 mm | 330 mm | 2000 W | 9.699 669 | EU | ±0.01 °C | TXF200-ST18 | 3 years | 7.3 kg | 1.00 | 150 mm | 501 mm | 330 x 535 x 415 mm | Stainless steel | 200 °C | 230 V | 18 l | 5 °C | 230 V, 50...60 Hz | -5 ... 200 °C | 18 l | 300 mm | ||
| 730 mm | 460 mm | 330 mm | 2000 W | 9.699 671 | EU | ±0.01 °C | TXF200-ST38 | 3 years | 13.8 kg | 1.00 | 190 mm | 650 mm | 330 x 730 x 460 mm | Stainless steel | 200 °C | 230 V | 38 l | 5 °C | 230 V, 50...60 Hz | -5 ... 200 °C | 38 l | 300 mm |
