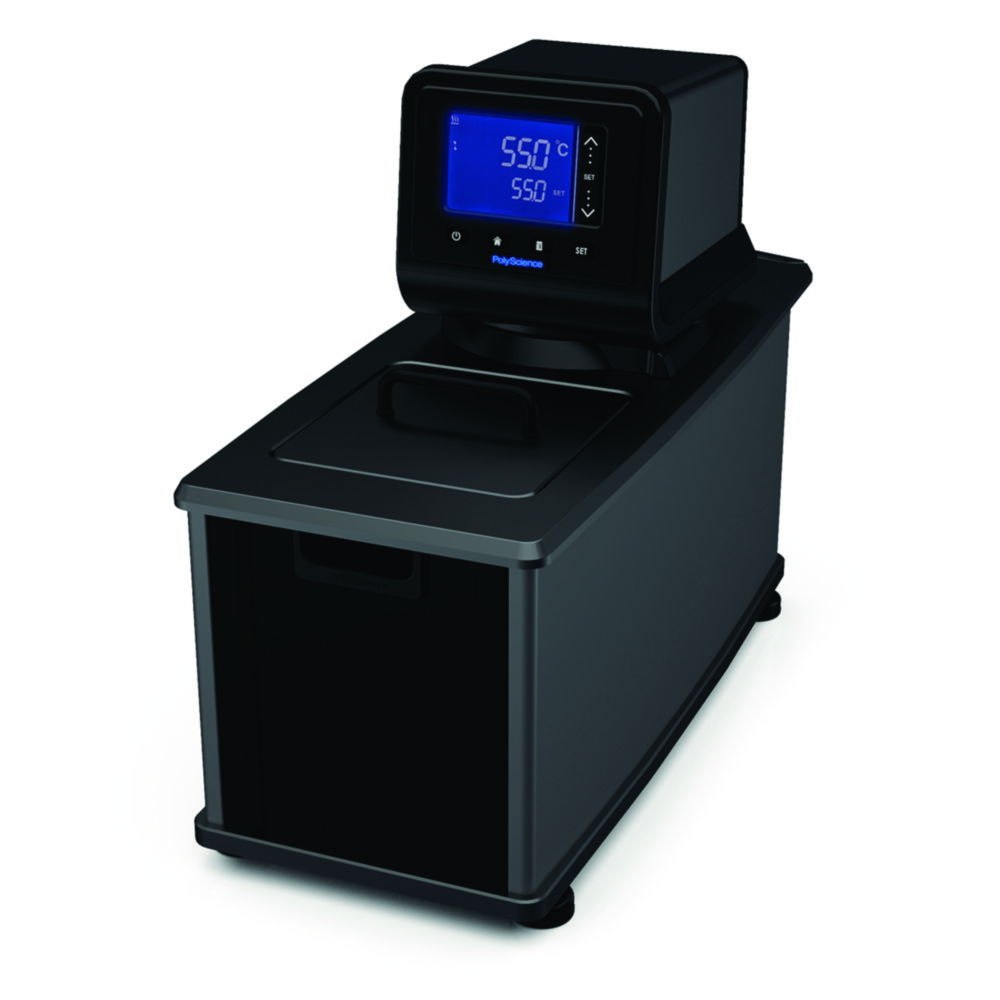

Heated Circulating Baths with Standard Digital (SD) Temperature Controller
- Large, universal icon and English display
- LidDock™ lid holder
- DuraTop™, precision-molded phenolic bath top resists laboratory chemicals
- Large bath opening and drain
- Easy hook-up of fluid connections
- Swivel 180™ Rotating Controller
- Pressure Pump with two speeds
- On-board connectivity: RS-232 serial output
- On-screen prompts
- Automatic performance optimization
- Single-point calibration capability
Toote variatsioonid
| PK | Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Catalog number | Ext. height | Ext. width | Heating capacity | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Power supply | Temp. Stability | Temperature | Temperature | Type of display | Volume bath | Width opening | With lid | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 | 140 mm | 359 mm | 672 x 457 x 422 mm | 457 mm | 4.658 638 | 422 mm | 672 mm | 2.2 kW | Stainless steel | 170 °C | 240 V | 28 l | -10 °C | 240 V, 50 Hz | ±0,04 °C | RT | RT+10 ... 170 °C | LCD-Touch | 28 l | 314 mm | Yes | |||
| 1.00 | 140 mm | 316 mm | 610 x 419 x 422 mm | 419 mm | 4.658 634 | 422 mm | 610 mm | 2.2 kW | Stainless steel | 170 °C | 240 V | 20 l | -10 °C | 240 V, 50 Hz | ±0,04 °C | RT | RT+10 ... 170 °C | LCD-Touch | 20 l | 250 mm | Yes | |||
| 1.00 | 140 mm | 276 mm | 569 x 368 x 422 mm | 368 mm | 4.658 631 | 422 mm | 569 mm | 2.2 kW | Stainless steel | 170 °C | 240 V | 15 l | -10 °C | 240 V, 50 Hz | ±0,04 °C | RT | RT+10 ... 170 °C | LCD-Touch | 15 l | 212 mm | Yes | |||
| 1.00 | 127 mm | 142 mm | 499 x 221 x 409 mm | 221 mm | 4.658 628 | 409 mm | 499 mm | 2.2 kW | Stainless steel | 170 °C | 240 V | 7 l | -10 °C | 240 V, 50 Hz | ±0,04 °C | RT | RT+10 ... 170 °C | LCD-Touch | 7 l | 157 mm | Yes |
