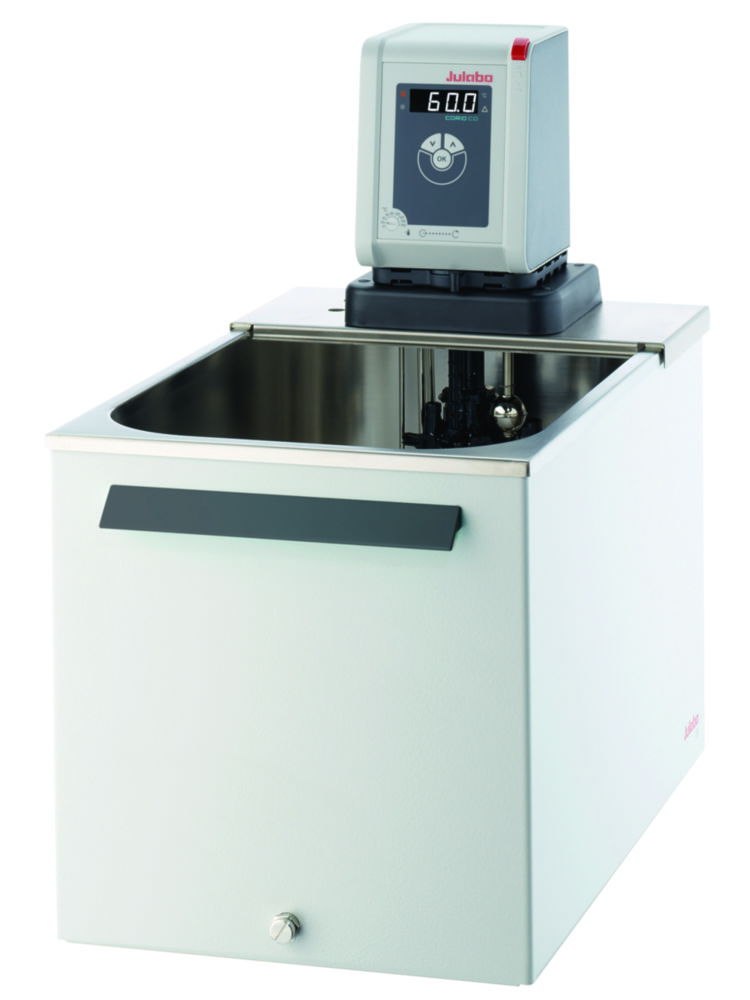

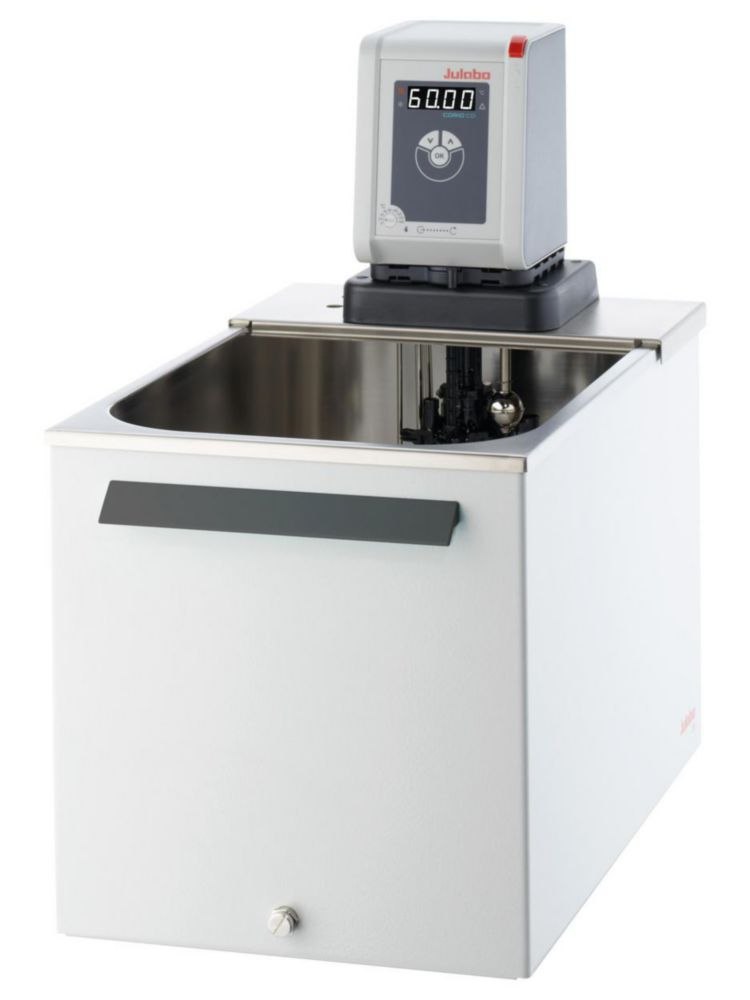

Heating bath circulator, CORIO™ CD-B, with stainless steel bath tank
Heating bath circulator for internal and external temperature applications with stainless steel bath tank and pump connections.
- Bright, white, easy to read display
- Very quiet
- Pump change-over between internal and external circulation
- USB connection
- Integrated drain screw (except for B5)
- Class III (FL) according to DIN 12876-1
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Temp. Stability | Temperature | Type | Volume bath | Weight | Width opening | With lid | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 180 mm | 380 x 400 x 420 mm | 400 mm | 420 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 13 l | -20 °C | 9 l | 4.657 998 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B13 | 9 ... 13 l | 9.1 kg | 300 mm | No | 1.00 | |||
| 200 mm | 350 mm | 380 x 580 x 470 mm | 580 mm | 470 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 27 l | -20 °C | 17 l | 4.658 001 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B27 | 17 ... 27 l | 13 kg | 300 mm | No | 1.00 | |||
| 200 mm | 180 mm | 380 x 400 x 470 mm | 400 mm | 470 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 17 l | -20 °C | 13 l | 4.657 999 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B17 | 13 ... 17 l | 9.3 kg | 300 mm | No | 1.00 | |||
| 150 mm | 350 mm | 380 x 580 x 420 mm | 580 mm | 420 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 19 l | -20 °C | 14 l | 4.658 000 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B19 | 14 ... 19 l | 11.5 kg | 300 mm | No | 1.00 | |||
| 300 mm | 300 mm | 540 x 340 x 570 mm | 340 mm | 570 mm | 540 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 41 l | -20 °C | 35 l | 4.658 003 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B39 | 35 ... 41 l | 18 kg | 330 mm | No | 1.00 | |||
| 150 mm | 150 mm | 230 x 380 x 410 mm | 380 mm | 410 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 5 l | -20 °C | 3.5 l | 4.657 997 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B5 | 3.5 ... 5 l | 8.2 kg | 150 mm | No | 1.00 | |||
| 150 mm | 320 mm | 910 x 360 x 430 mm | 360 mm | 430 mm | 910 mm | 2 kW | IP 21 | Stainless steel | 150 °C | 230 V | 39 l | -20 °C | 26 l | 4.658 002 | 230 V, 50 Hz | ±0,03 °C | 20 ... 150 °C | CD-B33 | 26 ... 39 l | 21 kg | 660 mm | No | 1.00 |
