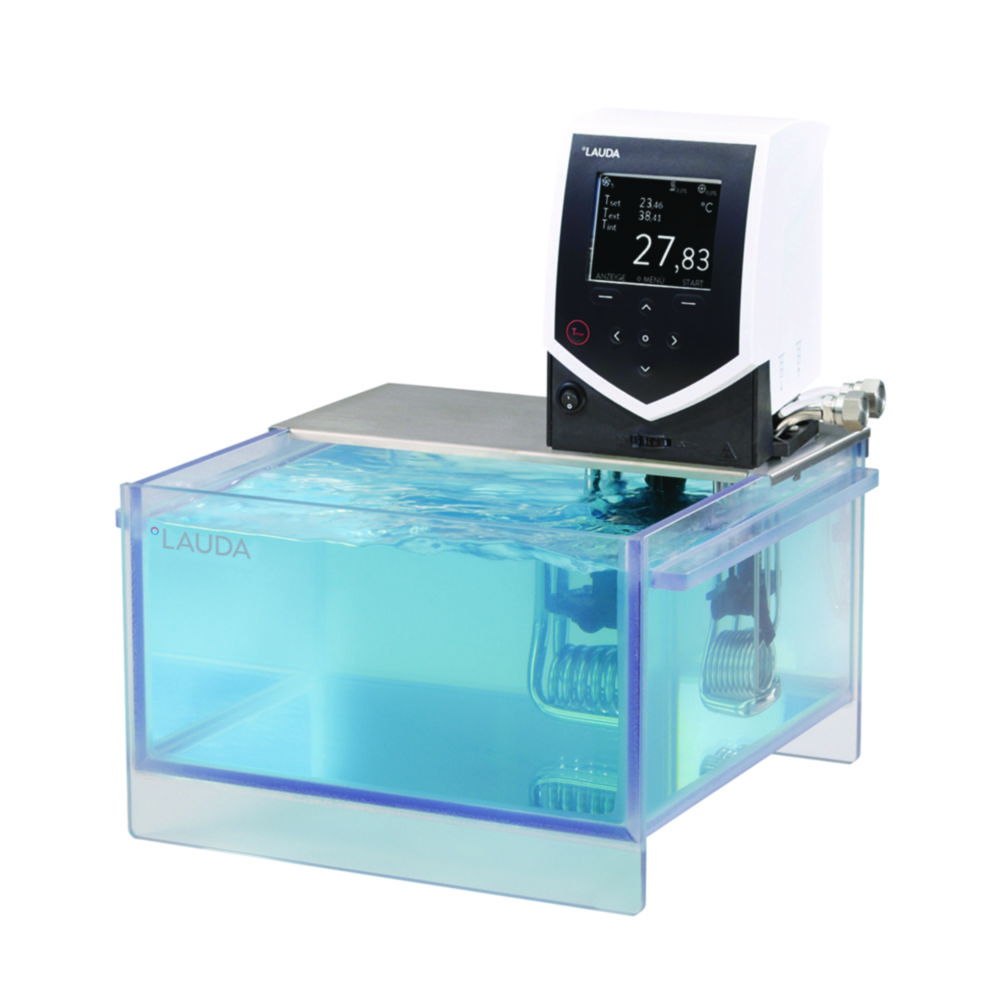

Heating bath circulator ECO ET Gold, with polycarbonate bath tank
Coloured TFT display for simultaneous indication of actual and set values and graphic illustration of the temperature profile
Programmer with 150 temperature/time segments that can be separated into 5 programs
Stainless steel pump connectors (M16x1 thread)
Toote variatsioonid
| Depth opening | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Plug type | Programmable | Temp. Stability | Type | Type of display | Weight | Width opening | With lid | PK | External dimensions (WxDxH) | Power supply | Temperature | Volume bath | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 130 mm | 148 mm | 532 mm | 428 mm | 2.6 kW | IP 21 | PC | 0.6 bar | 100 °C | 230 V | 15.0 l | -20 °C | 13.5 l | 6.259 775 | EU | Yes | ±0,01 K | ET 15 G | TFT | 7 kg | 275 mm | No | 1.00 | 428 x 148 x 532 mm | 230 V, 50...60 Hz | 20 ... 100 °C | 13.5 ... 15.0 l | |||
| 350 mm | 506 mm | 389 mm | 322 mm | 2.6 kW | IP 21 | PC | 0.6 bar | 100 °C | 230 V | 20.0 l | -20 °C | 15.0 l | 6.522 851 | EU | Yes | ±0,01 K | ET 20 G | TFT | 10 kg | 300 mm | No | 1.00 | 322 x 506 x 389 mm | 230 V, 50...60 Hz | 20 ... 100 °C | 15.0 ... 20.0 l | |||
| 175 mm | 331 mm | 389 mm | 322 mm | 2.6 kW | IP 21 | PC | 0.6 bar | 100 °C | 230 V | 12 l | -20 °C | 9.5 l | 6.242 985 | EU | Yes | ±0,01 K | ET 12 G | TFT | 8 kg | 300 mm | No | 1.00 | 322 x 331 x 389 mm | 230 V, 50...60 Hz | 20 ... 100 °C | 9.5 ... 12 l | |||
| 285 mm | 433 mm | 349 mm | 143 mm | 2.6 kW | IP 21 | PC | 0.6 bar | 100 °C | 230 V | 6.0 l | -20 °C | 5.0 l | 6.319 701 | EU | Yes | ±0,01 K | ET 6 G | TFT | 5 kg | 130 mm | No | 1.00 | 143 x 433 x 349 mm | 230 V, 50...60 Hz | 20 ... 100 °C | 5.0 ... 6.0 l |
