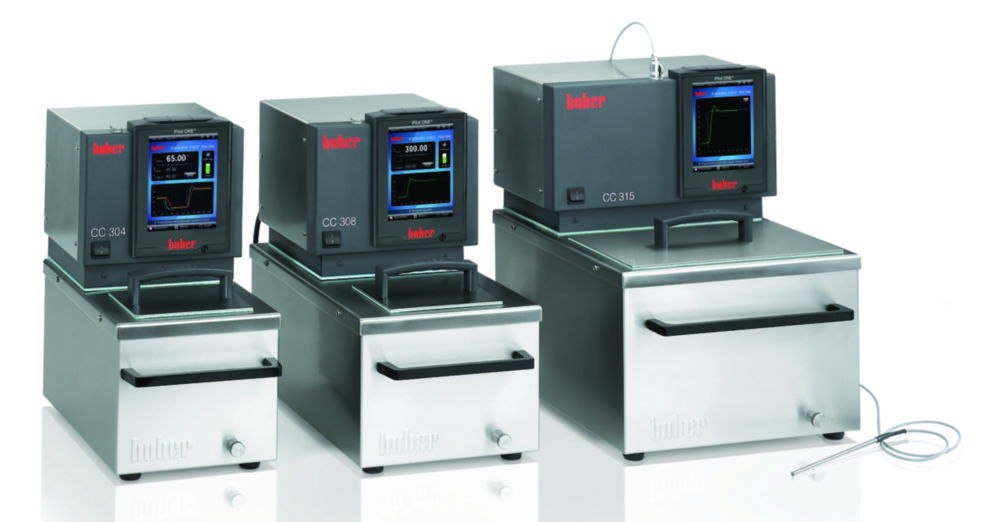

Heating bath circulators CC

Heating bath circulators are suitable for temperatures up to 200 °C or 300 °C. The CC models have a continuously adjustable pressure and suction pump. The pump pressure can be controlled with an optional pressure sensor, e.g. to protect glassware from breakage. The devices are preferably used for temperature control of externally connected applications. Additionally, it is possible to control the temperature of objects directly in the open bath. The devices are equipped with overtemperature and low level protection. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time.

Large and full colour 5.7″ TFT Touchscreen

Simple menu navigation in 13 languages

Programmer with calendar/clock functions

Ethernet, RS232, and USB interface

Pt100 external sensor connection

2-point calibration for control sensors

Safety class III (FL) acc. to DIN 12876

Toote variatsioonid

PK	Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	Catalog number	IP code	Material bath	atr_llg_max_suction_capacity	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Min. voltage	Operation	Power supply	Temp. Stability	Temperature	Type	Type of display	Volume bath	Weight	Width opening
1.00	200 mm	145 mm	335 x 382 x 433 mm	382 mm	433 mm	335 mm	3.5 kW	9.859 224	IP 20	Stainless steel	18.5 l/min	0.4 bar	300 °C	240 V	15.6 l	-28 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	28 ... 300 °C	CC-315B	TFT	15.6 l	22 kg	270 mm
1.00	155 mm	100 mm	210 x 335 x 392 mm	335 mm	392 mm	210 mm	3 kW	9.859 222	IP 20	Stainless steel	18.5 l/min	0.4 bar	300 °C	240 V	5 l	-28 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	28 ... 300 °C	CC-304B	TFT	5 l	14 kg	130 mm
1.00	150 mm	90 mm	178 x 337 x 355 mm	337 mm	355 mm	178 mm	2.1 kW	9.859 221	IP 20	Stainless steel	22 l/min	0.4 bar	200 °C	240 V	4.8 l	-45 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	-45 ... 200 °C	CC-205B	TFT	4.8 l	9 kg	105 mm
1.00	155 mm	110 mm	242 x 404 x 392 mm	404 mm	392 mm	242 mm	3 kW	9.859 223	IP 20	Stainless steel	18.5 l/min	0.4 bar	300 °C	240 V	7.6 l	-28 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	28 ... 300 °C	CC-308B	TFT	7.6 l	18 kg	130 mm
