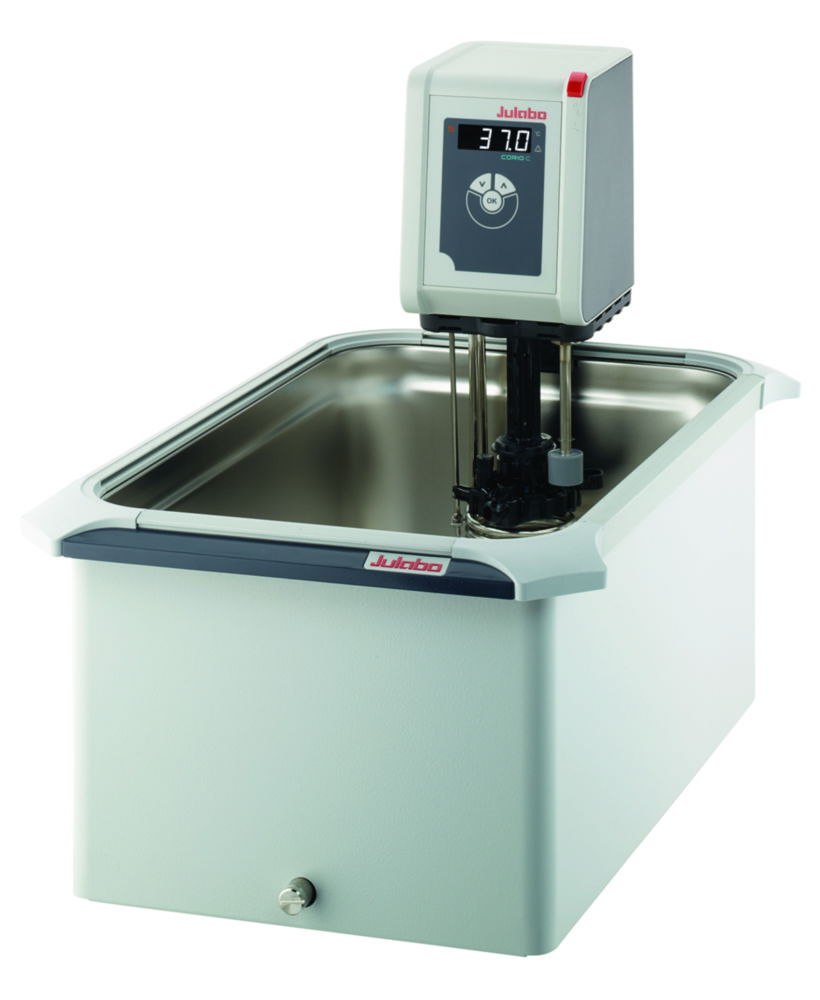

Heating bath circulators CORIO™ C-B, with stainless steel bath tanks
Heating bath circulators for internal temperature applications with stainless steel bath tanks for working temperatures from 20 °C to 100 °C, complete set with bath tanks.
- For internal applications
- Bright, white, easy to read display
- Whisper quiet
- Integrated drain screw (except for B5)
Toote variatsioonid
| Bath depth | Depth opening | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | atr_llg_min_volume_bath | Catalog number | Power supply | Temp. Stability | Temperature | Type | Volume bath | Weight | Width opening | With lid | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 mm | 180 mm | 380 x 400 x 420 mm | 400 mm | 420 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 100 °C | 230 V | 13 l | -20 °C | 9 l | 4.657 990 | 230 V, 50...60 Hz | ±0,03 °C | 20 ... 100 °C | C-B13 | 9 ... 13 l | 8.2 kg | 300 mm | No | Yes | 1.00 | |||
| 200 mm | 180 mm | 380 x 400 x 470 mm | 400 mm | 470 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 100 °C | 230 V | 17 l | -20 °C | 13 l | 4.657 991 | 230 V, 50...60 Hz | ±0,03 °C | 20 ... 100 °C | C-B17 | 13 ... 17 l | 9.3 kg | 300 mm | No | Yes | 1.00 | |||
| 200 mm | 350 mm | 380 x 580 x 470 mm | 580 mm | 470 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 100 °C | 230 V | 27 l | -20 °C | 17 l | 4.657 993 | 230 V, 50...60 Hz | ±0,03 °C | 20 ... 100 °C | C-B27 | 17 ... 27 l | 13.0 kg | 300 mm | No | Yes | 1.00 | |||
| 150 mm | 350 mm | 380 x 580 x 420 mm | 580 mm | 420 mm | 380 mm | 2 kW | IP 21 | Stainless steel | 100 °C | 230 V | 19 l | -20 °C | 14 l | 4.657 992 | 230 V, 50...60 Hz | ±0,03 °C | 20 ... 100 °C | C-B19 | 14 ... 19 l | 10.5 kg | 300 mm | No | Yes | 1.00 | |||
| 150 mm | 150 mm | 230 x 380 x 410 mm | 380 mm | 410 mm | 230 mm | 2 kW | IP 21 | Stainless steel | 100 °C | 230 V | 5 l | -20 °C | 3.5 l | 4.657 989 | 230 V, 50...60 Hz | ±0,03 °C | 20 ... 100 °C | C-B5 | 3.5 ... 5 l | 7.3 kg | 150 mm | No | Yes | 1.00 |
