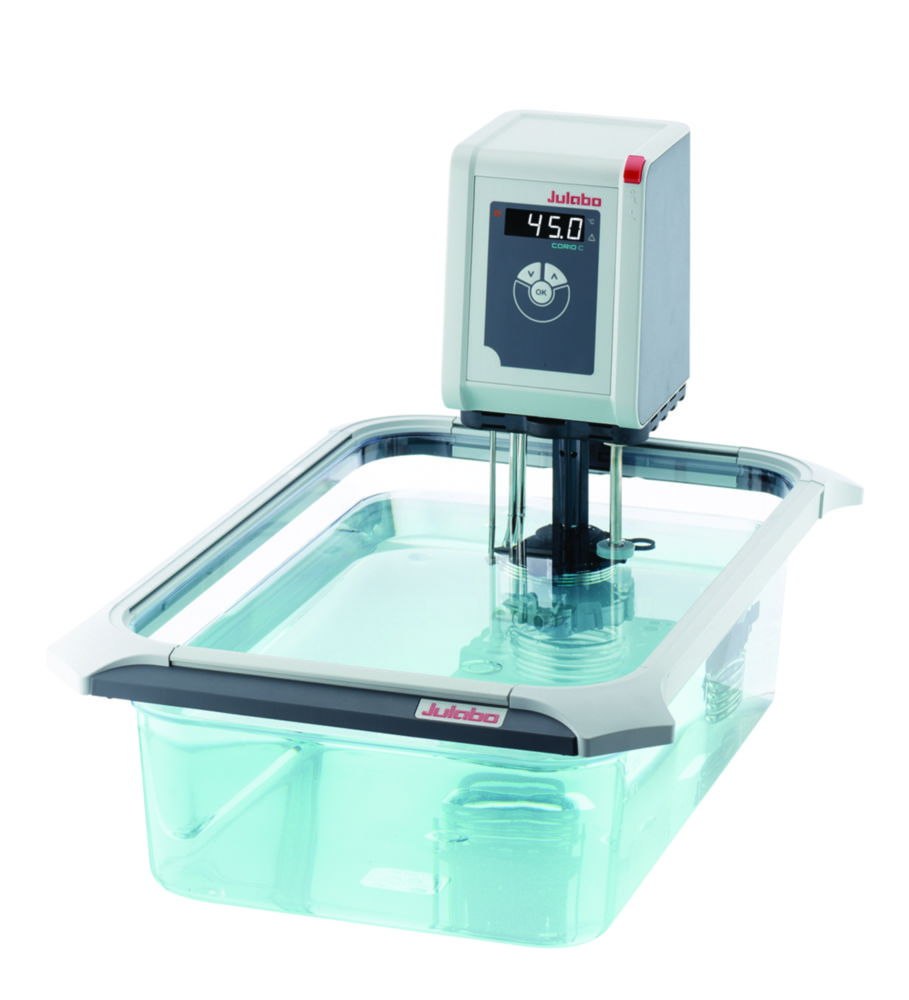

Heating bath circulators CORIO™ C-BT, with transparent bath tanks

Heating bath circulators for internal temperature applications with transparent bath tanks for working temperatures from 20 °C to 100 °C.

Toote variatsioonid

Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	IP code	Material bath	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	atr_llg_min_volume_bath	Catalog number	Power supply	Temp. Stability	Temperature	Type	Volume bath	Weight	Width opening	With lid	With timer	PK
150 mm	150 mm	320 x 380 x 380 mm	380 mm	380 mm	320 mm	2 kW	IP 21	PC	100 °C	230 V	9 l	-20 °C	6 l	4.657 986	230 V, 50...60 Hz	±0,03 °C	20 ... 100 °C	C-BT9	6 ... 9 l	3.9 kg	230 mm	No	Yes	1.00
150 mm	150 mm	230 x 380 x 380 mm	380 mm	380 mm	230 mm	2 kW	IP 21	PC	100 °C	230 V	5 l	-20 °C	3.5 l	4.657 985	230 V, 50...60 Hz	±0,03 °C	20 ... 100 °C	C-BT5	3.5 ... 5 l	4.8 kg	150 mm	No	Yes	1.00
200 mm	350 mm	380 x 580 x 430 mm	580 mm	430 mm	380 mm	2 kW	IP 21	PC	100 °C	230 V	27 l	-20 °C	20 l	4.657 988	230 V, 50...60 Hz	±0,03 °C	20 ... 100 °C	C-BT27	20 ... 27 l	7.2 kg	300 mm	No	Yes	1.00
150 mm	350 mm	380 x 580 x 380 mm	580 mm	380 mm	380 mm	2 kW	IP 21	PC	100 °C	230 V	19 l	-20 °C	14 l	4.657 987	230 V, 50...60 Hz	±0,03 °C	20 ... 100 °C	C-BT19	14 ... 19 l	7.0 kg	300 mm	No	Yes	1.00
