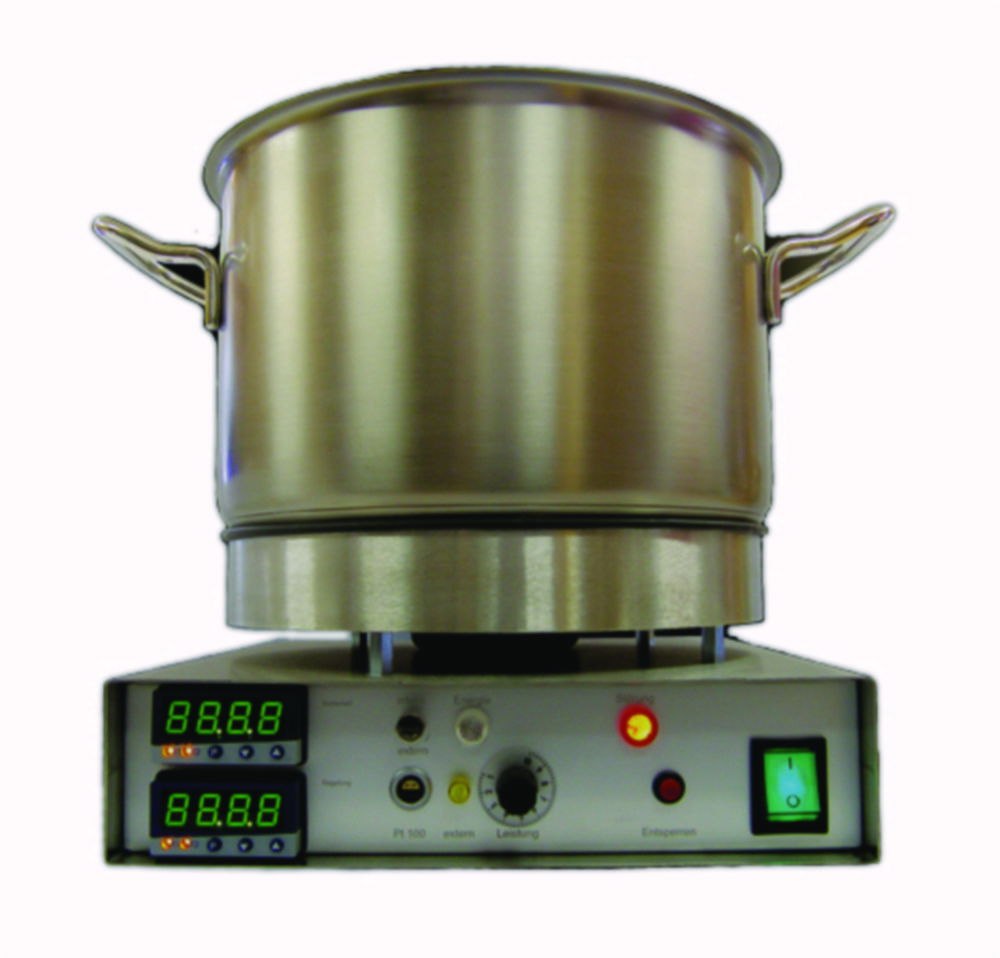

Heating bath HB 1500-S
The heating bath HB 1500-S is developed for varied tasks. The bath can be filled with water, oil or sand. The appliance is equipped with 2 temperature controllers with microprocessor. The upper temperature controller serves as a safety temperature limiter. If the safety temperature is exceeded, the heating is switched off at all poles. The temperature is measured via an internal temperature sensor at the bottom of the pot.
- Microprocessor controller with 4-digit 7-segment display, 10 mm high, green
- Freely configurable
- Self-optimising temperature control
- Measuring and control range up to 260 °C
- Setting of heating power from 2 to 99 %
- Switchable to external sensor
- Material bath/housing stainless steel, front and rear anodised aluminium
Toote variatsioonid
| Display | Ext. depth | Ext. height | Ext. width | Heating capacity | Height int. | Int. Ø | Material bath | Max. temperature | Min. temperature | Nominal capacity | Catalog number | Plug type | Type | Weight | PK | Max. voltage | External dimensions (WxDxH) | Power supply | Temperature | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Digital | 270 mm | 230 mm | 290 mm | 1500 W | 110 mm | 200 mm | Stainless steel | 260 °C | -20 °C | 2 l | 9.234 515 | EU | HB 1500-S | 5.4 kg | 1.00 | 230 V | 290 x 270 x 230 mm | 230 V | 20 ... 260 °C | ||
| Digital | 320 mm | 280 mm | 370 mm | 2000 W | 180 mm | 280 mm | Stainless steel | 260 °C | -20 °C | 8 l | 9.234 513 | EU | HB 1500-S | 8.6 kg | 1.00 | 230 V | 370 x 320 x 280 mm | 230 V | 20 ... 260 °C | ||
| Digital | 290 mm | 255 mm | 360 mm | 1500 W | 150 mm | 240 mm | Stainless steel | 260 °C | -20 °C | 4 l | 9.234 514 | EU | HB 1500-S | 5.8 kg | 1.00 | 230 V | 360 x 290 x 255 mm | 230 V | 20 ... 260 °C |
