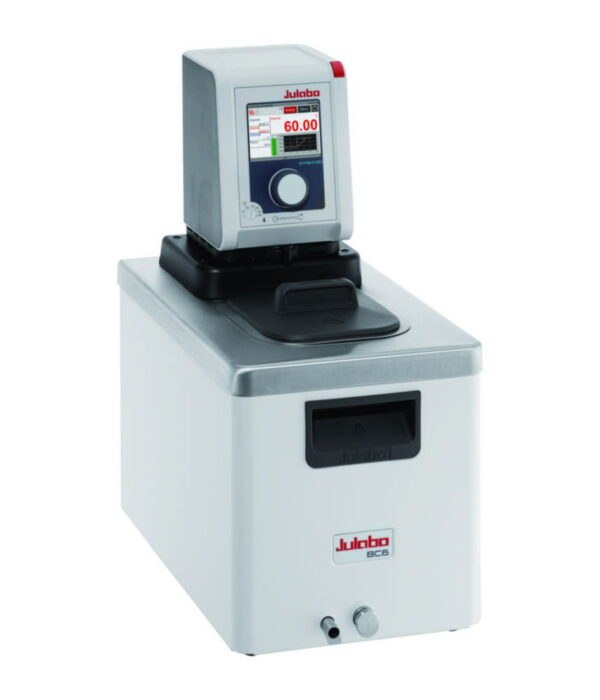

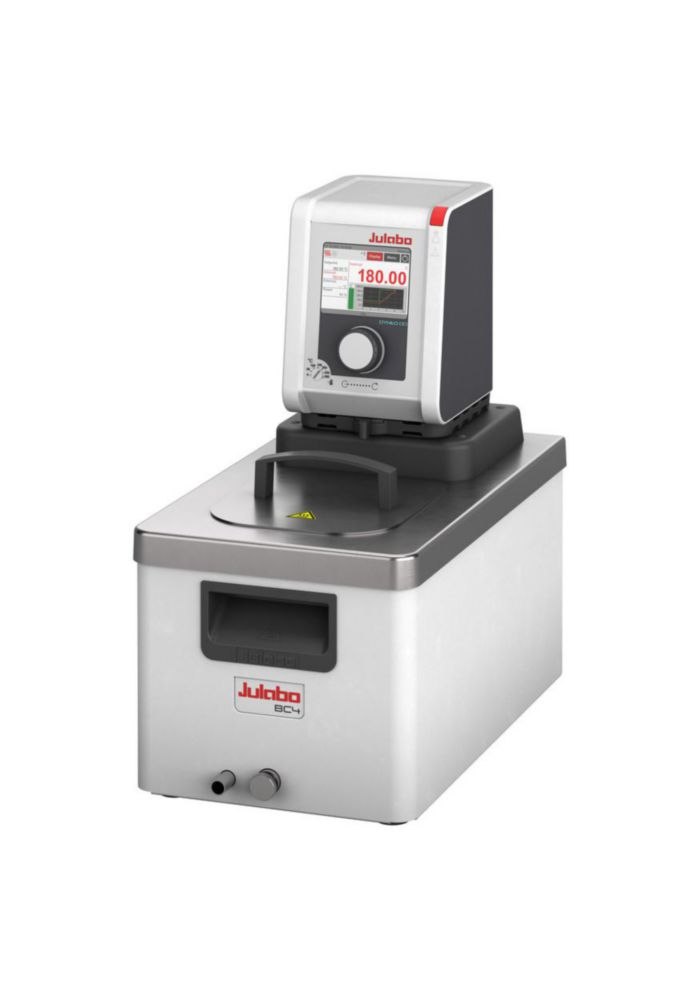

Heating circulator bath DYNEO™ DD-BC.D, with RS232 interface

For internal and external applications. With powerful components and a large, easy-to-read coloured TFT display. Operation is simple and intuitive via the central controller on the front of the device.

  • Easy switching between internal and external circulation

  • Integrated cooling coil for counter-cooling

  • Built-in drain tap

  • Integrated programmer for 8 x 60 program steps

  • Continuously adjustable, powerful pressure pump

  • Pump connections M16 x 1 (outer thread)

  • USB interface

  • External Pt100 sensor connection

  • High-quality bath tanks made of stainless steel

  • Class III (FL) acc. to DIN 12876-1

2 hose connectors for 8 and 12 mm I.W. and bath lid included.

Toote variatsioonid

<th class='Type of
display sortable asc'>Type of
display<th class='Width
opening sortable asc'>Width
opening<td data-title='Type of
display'>TFT<td data-title='Width
opening'>260 mm<td data-title='Type of
display'>TFT<td data-title='Width
opening'>220 mm<td data-title='Type of
display'>TFT<td data-title='Width
opening'>130 mm<td data-title='Type of
display'>TFT<td data-title='Width
opening'>130 mm
Depth openingExt. depthExt. heightExt. widthHeating capacityMaterial bathMax. flow rateMax. temperatureMax. voltageMax. volume bathMin. temperatureMin. voltageatr_llg_min_volume_bathCatalog numberProgrammableTemp. StabilityTypeWeightWith lidPKKogus
350 mm620 mm480 mm390 mm2 kWStainless steel200 °C230 V26 l-20 °C200 V19 l4.663 250Yes±0,01 °CDD-BC26.D18.7 kgYes1.00
150 mm490 mm470 mm330 mm2 kWStainless steel200 °C230 V12 l-20 °C200 V8.5 l4.663 249Yes±0,01 °CDD-BC12.D11.9 kgYes1.00
150 mm410 mm420 mm230 mm2 kWStainless steel200 °C230 V4.5 l-20 °C200 V3 l4.663 247Yes±0,01 °CDD-BC4.D8.5 kgYes1.00
150 mm440 mm470 mm240 mm2 kWStainless steel200 °C230 V6 l-20 °C200 V4.5 l4.663 248Yes±0,01 °CDD-BC6.D9.7 kgYes1.00
