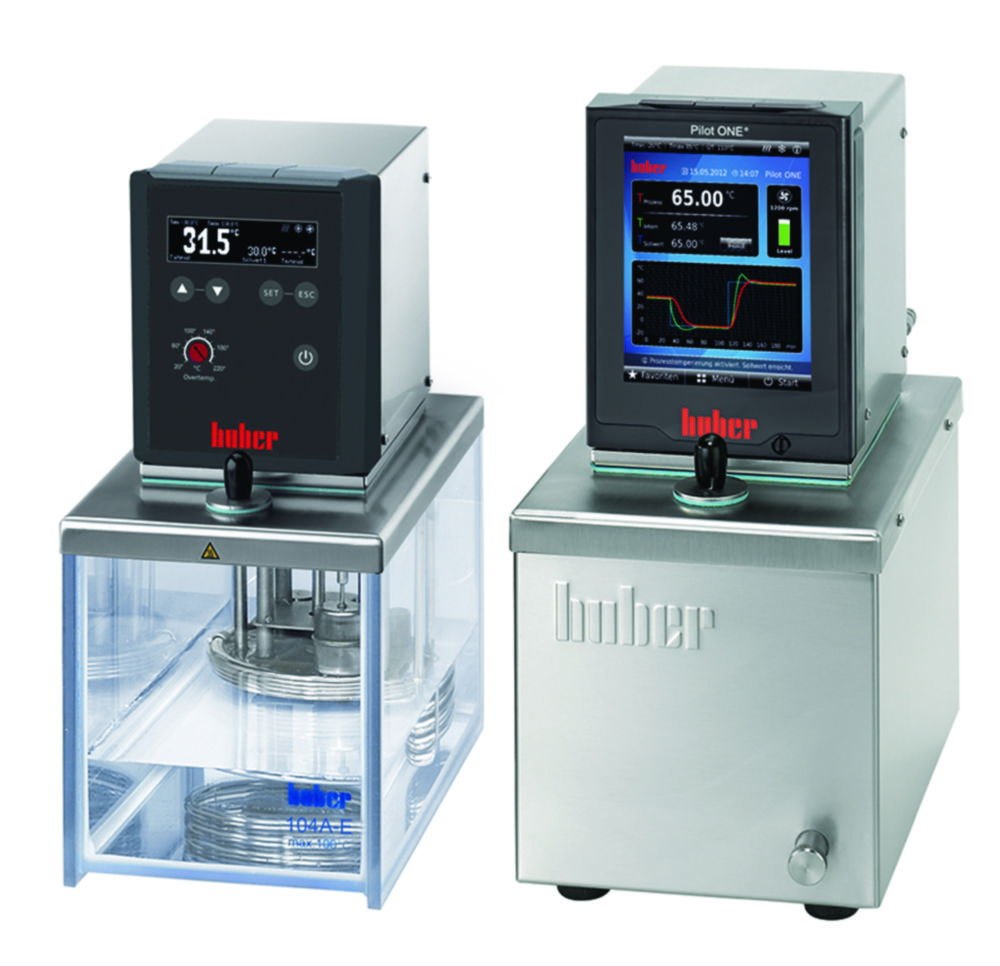

Heating circulator CC-104A, with polycarbonate bath
Thanks to its minimised filling volume, the CC-104A model is particularly well suited for temperature control of small external volumes. The circulation thermostat is equipped with M16 x 1 pump connections on the rear as standard, as well as over-temperature and low-level protection. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time.
- Powerful pressure/suction pump
- Large and full colour 5.7″ TFT Touchscreen
- Simple menu navigation in 13 languages
- Programmer with calendar/clock functions
- Ethernet, RS232, and USB interface
- Pt100 external sensor connection
- 2-point calibration for control sensors
- Safety class III (FL) acc. to DIN 12876
Toote variatsioonid
| Catalog number | PK | Bath depth | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Heating capacity | IP code | Material bath | Max. flow rate | atr_llg_max_suction_capacity | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Max. volume bath | Min. temperature | Min. voltage | Operation | Power supply | Temp. Stability | Temperature | Type | Type of display | Volume bath | Weight | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.859 213 | 1.00 | 150 mm | 147 x 235 x 330 mm | 235 mm | 330 mm | 147 mm | 2.1 kW | IP 20 | PC | 22 l/min | 0.4 bar | 100 °C | 240 V | 3 l | 25 °C | 200 V | Touchscreen | 200 ... 240 V, 50/60 Hz | ±0,02 K | 25 ... 100 °C | CC-104A | TFT | 3 l | 6 kg |
