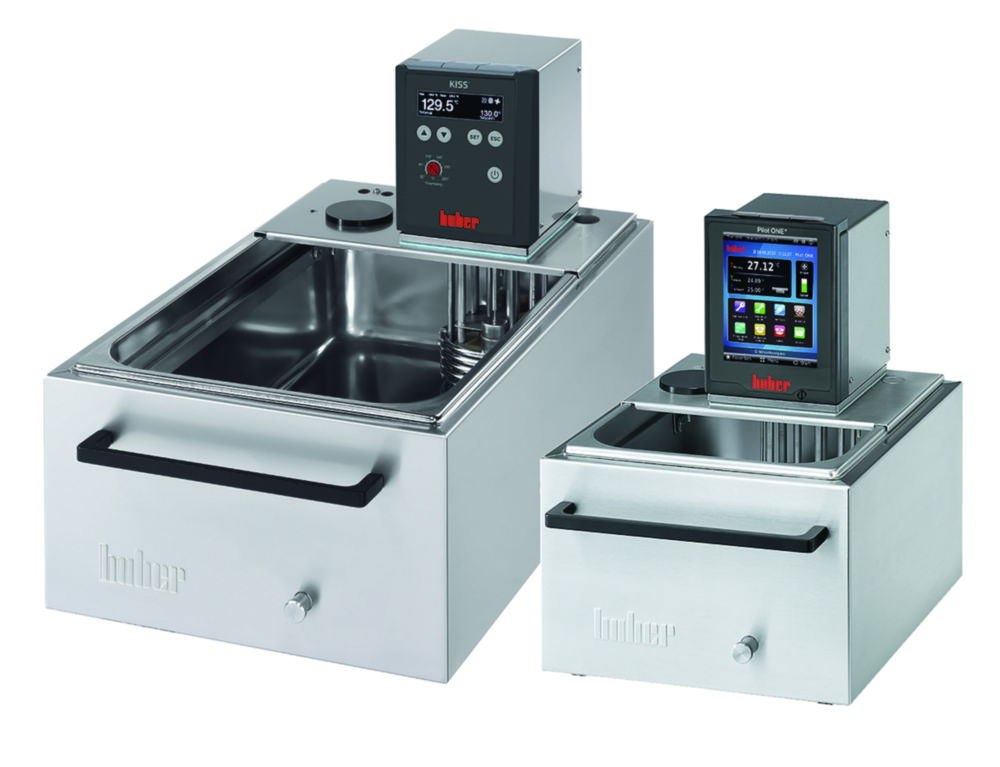

Heating bath thermostats CC, with stainless steel bath

The insulated stainless steel baths are suitable for temperatures up to 200 °C. All models come with a Pilot ONE immersion circulator mounted on a bath bridge. With a pump adapter, the combinations can be used for both externally closed and externally open (with optional level control) temperature applications. The devices are equipped with overtemperature and low level protection. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time.

Powerful pressure/suction pump

Large and full colour 5.7″ TFT Touchscreen

Simple menu navigation in 13 languages

Programmer with calendar/clock functions

Ethernet, RS232, and USB interface

Pt100 external sensor connection

2-point calibration for control sensors

Safety class III (FL) acc. to DIN 12876

Toote variatsioonid

PK	Bath depth	Depth opening	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Heating capacity	Catalog number	IP code	Material bath	atr_llg_max_suction_capacity	atr_llg_max_suction_pressure	Max. temperature	Max. voltage	Max. volume bath	Min. temperature	Min. voltage	Operation	Power supply	Temp. Stability	Temperature	Type	Type of display	Volume bath	Weight	Width opening
1.00	150 mm	127 mm	290 x 350 x 375 mm	350 mm	375 mm	290 mm	2.1 kW	9.859 212	IP 20	Stainless steel	22 l/min	0.4 bar	200 °C	240 V	7.5 l	25 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	25 ... 200 °C	CC-208B	TFT	7.5 l	10 kg	230 mm
1.00	200 mm	329 mm	350 x 555 x 425 mm	555 mm	425 mm	350 mm	2.1 kW	9.859 211	IP 20	Stainless steel	22 l/min	0.4 bar	200 °C	240 V	23.5 l	25 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	25 ... 200 °C	CC-225B	TFT	23.5 l	16 kg	290 mm
1.00	150 mm	152 mm	350 x 375 x 375 mm	375 mm	375 mm	350 mm	2.1 kW	9.859 208	IP 20	Stainless steel	22 l/min	0.4 bar	200 °C	240 V	10.5 l	25 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	25 ... 200 °C	CC-212B	TFT	10.5 l	11 kg	290 mm
1.00	150 mm	329 mm	350 x 555 x 375 mm	555 mm	375 mm	350 mm	2.1 kW	9.859 210	IP 20	Stainless steel	22 l/min	0.4 bar	200 °C	240 V	17 l	25 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	25 ... 200 °C	CC-220B	TFT	17 l	14 kg	290 mm
1.00	200 mm	152 mm	350 x 375 x 425 mm	375 mm	425 mm	350 mm	2.1 kW	9.859 209	IP 20	Stainless steel	22 l/min	0.4 bar	200 °C	240 V	15 l	25 °C	200 V	Touchscreen	200 ... 240 V, 50/60 Hz	±0,02 K	25 ... 200 °C	CC-215B	TFT	15 l	12 kg	290 mm
