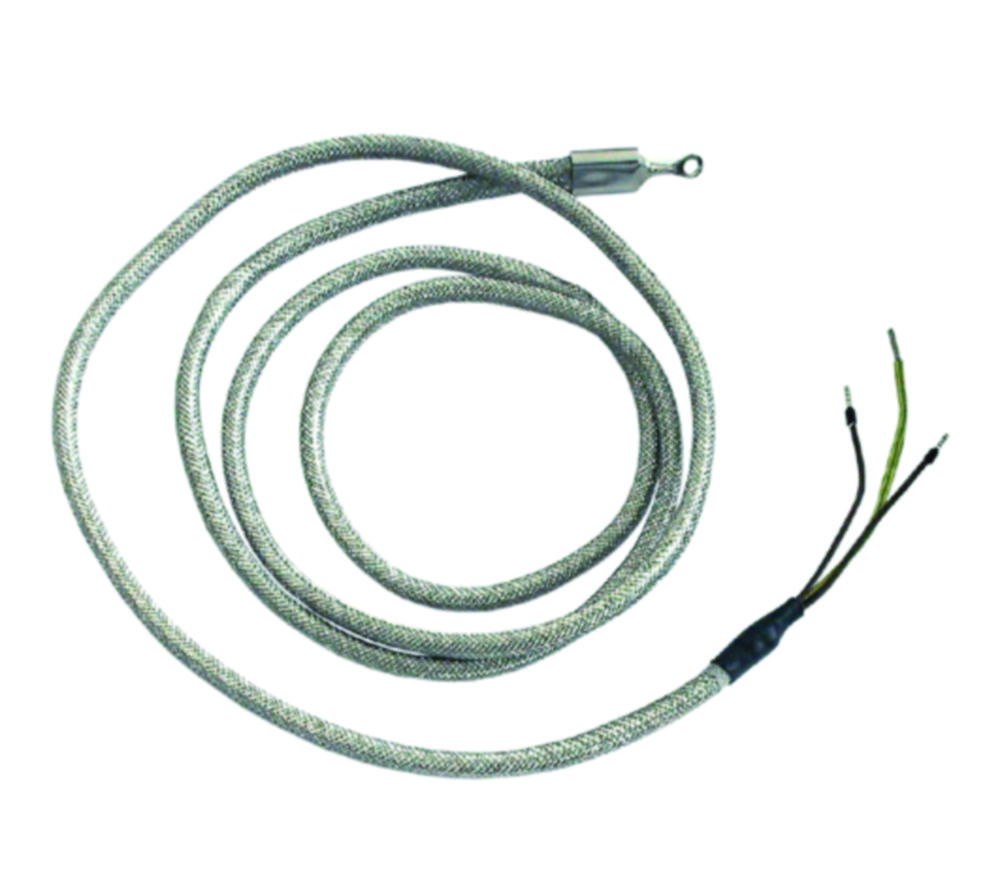

Heating tapes, fibre glass, KM-HT-G series
Not moisture-resistant. With fibre glass protective braiding. Max. surface temperature 450 °C. With nickel-plated copper external braiding as protective earth conductor, 1.0 metre long mains connection cable for permanent connection to a fused outlet. Power loading approximately 200 W/m.
Toote variatsioonid
| IP code | Length | Max. temperature | Max. voltage | Catalog number | Power supply | Rated capacity | Thickness | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| IP 20 | 0.5 m | 450 °C | 230 V·AC | 9.642 710 | 230 V·AC | 100 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 1.5 m | 450 °C | 230 V·AC | 9.642 712 | 230 V·AC | 300 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 3.0 m | 450 °C | 230 V·AC | 9.642 714 | 230 V·AC | 600 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 7.0 m | 450 °C | 230 V·AC | 9.642 716 | 230 V·AC | 1400 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 1.0 m | 450 °C | 230 V·AC | 9.642 711 | 230 V·AC | 200 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 2.0 m | 450 °C | 230 V·AC | 9.642 713 | 230 V·AC | 400 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 5.0 m | 450 °C | 230 V·AC | 9.642 715 | 230 V·AC | 1000 W | 8 mm | 12 mm | 1.00 | ||
| IP 20 | 10.0 m | 450 °C | 230 V·AC | 9.642 717 | 230 V·AC | 2000 W | 8 mm | 12 mm | 1.00 |
