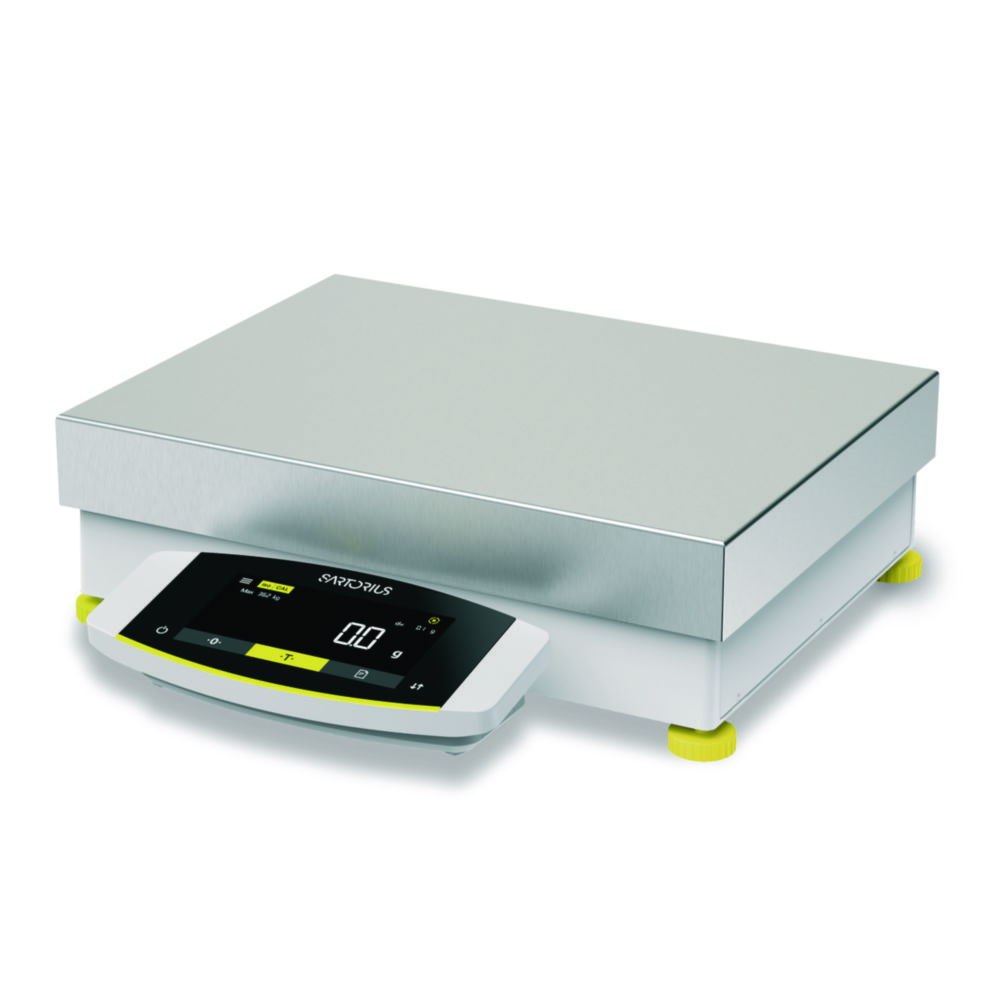

High-Capacity Balances Cubis® II
- Leveling manual
- Without draft shield
Height and weight depending upon weighing pan size, filter weighing pan and draft shield.
Verified balances and other configurations are available online or on request.
Verified balance with EC Type Approval Certificate, for EU except France.
Toote variatsioonid
| Depth | Depth weighing plate | Dimensions (WxDxH) | Height | Max. load | Catalog number | Readability | Type | Weighing plate (WxD) | Weight | Width | Width weighing plate | With draft shield | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 412 mm | 300 mm | 400 x 412 x 126 mm | 126 mm | 20200 g | 4.670 946 | 0,1 g | 20201S. MCE | 400 x 300 mm | 15.8 kg | 400 mm | 400 mm | No | 1.00 | ||
| 412 mm | 233 mm | 400 x 412 x 159 mm | 159 mm | 4200/32200 g | 4.670 929 | 0,01/0,1 g | 32202P. MCA | Ø 233 mm | 15.8 kg | 400 mm | - | No | 1.00 | ||
| 412 mm | 300 mm | 400 x 412 x 126 mm | 126 mm | 36200 g | 4.670 909 | 0,1 g | 36201S. MCA | 400 x 300 mm | 15.8 kg | 400 mm | 400 mm | No | 1.00 | ||
| 412 mm | 300 mm | 400 x 412 x 126 mm | 126 mm | 70200 g | 4.670 940 | 0,1 g | 70201S. MCA | 400 x 300 mm | 15.8 kg | 400 mm | 400 mm | No | 1.00 | ||
| 412 mm | 300 mm | 400 x 412 x 126 mm | 126 mm | 20200 g | 4.670 920 | 0,1 g | 20201S. MCA | 400 x 300 mm | 15.8 kg | 400 mm | 400 mm | No | 1.00 | ||
| 412 mm | 233 mm | 400 x 412 x 159 mm | 159 mm | 4200/32200 g | 4.670 953 | 0,01/0,1 g | 32202P. MCE | Ø 233 mm | 15.8 kg | 400 mm | - | No | 1.00 | ||
| 412 mm | 300 mm | 400 x 412 x 126 mm | 126 mm | 36200 g | 4.670 956 | 0,1 g | 36201S. MCE | 400 x 300 mm | 15.8 kg | 400 mm | 400 mm | No | 1.00 | ||
| 412 mm | 300 mm | 400 x 412 x 126 mm | 126 mm | 36200 g | 4.670 955 | 1 g | 36200S. MCE | 400 x 300 mm | 15.8 kg | 400 mm | 400 mm | No | 1.00 |
