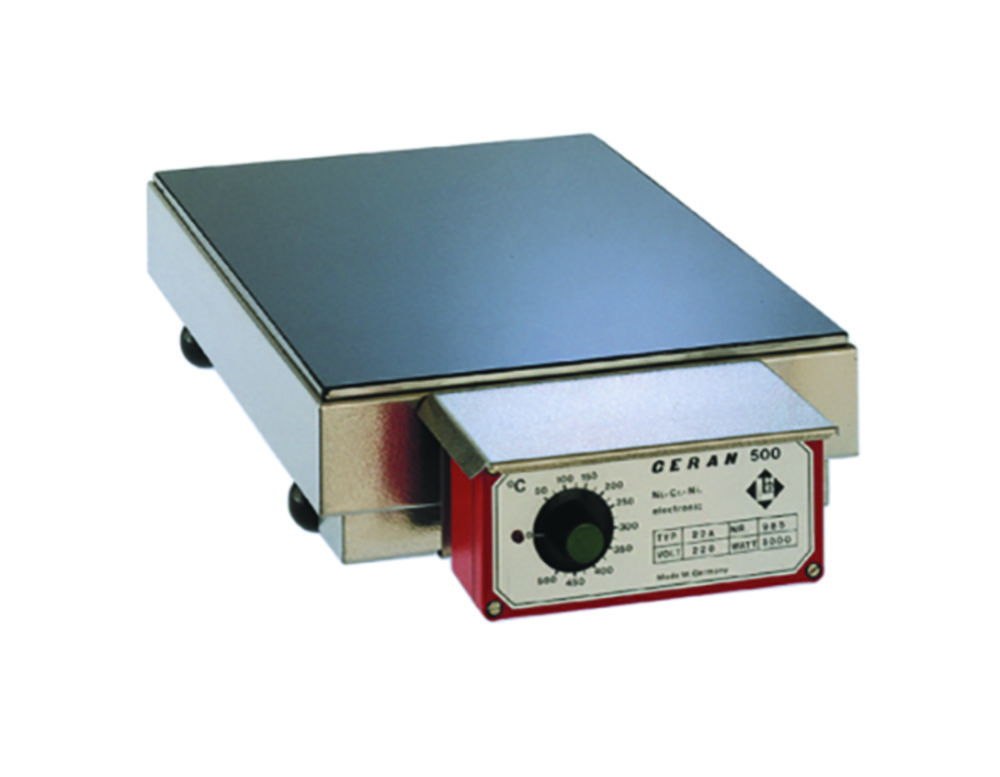

High-performance hotplates CERAN® A series
With thermostatic temperature control. CERAN® glass ceramic material is highly resistant to breakage and changes in temperature, free from distortion, permeable to infrared light and highly acid-resistant. Bench-top instrument with built-in controller.
Toote variatsioonid
| Depth heating area | Depth | Dimensions (WxDxH) | Display | Heating capacity | Height | atr_llg_material_hotplate | Max. temperature | Max. voltage | Min. temperature | atr_llg_no_of_hotplates | Operation | Catalog number | Power supply | Type | Type of display | Weight | Width heating area | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 140 mm | 300 mm | 440 x 300 x 100 mm | Analogue | 1500 W | 100 mm | Glass ceramic | 500 °C | 230 V | -50 °C | 1 | Rotary knob | 7.603 031 | 230 V, 50...60 Hz | 4 A | Without display | 5.0 kg | 430 mm | 440 mm | 1.00 | ||
| 280 mm | 410 mm | 290 x 410 x 100 mm | Analogue | 2000 W | 100 mm | Glass ceramic | 500 °C | 230 V | -50 °C | 1 | Rotary knob | 9.645 711 | 230 V, 50...60 Hz | 11 A | Without display | 5.5 kg | 280 mm | 290 mm | 1.00 | ||
| 430 mm | 560 mm | 290 x 560 x 100 mm | Analogue | 3000 W | 100 mm | Glass ceramic | 500 °C | 230 V | -50 °C | 1 | Rotary knob | 9.645 712 | 230 V, 50...60 Hz | 22 A | Without display | 6.5 kg | 280 mm | 290 mm | 1.00 | ||
| 430 mm | 560 mm | 440 x 560 x 100 mm | Analogue | 4400 W | 100 mm | Glass ceramic | 500 °C | 400 V·3/N/PE | -50 °C | 1 | Rotary knob | 9.645 714 | 400 V·3/N/PE, 50/60 Hz | 33 A | Without display | 9.0 kg | 430 mm | 440 mm | 1.00 | ||
| 430 mm | 560 mm | 590 x 560 x 100 mm | Analogue | 5700 W | 100 mm | Glass ceramic | 500 °C | 400 V·3/N/PE | -50 °C | 1 | Rotary knob | 9.645 715 | 400 V·3/N/PE, 50/60 Hz | 44 A | Without display | 11.5 kg | 580 mm | 590 mm | 1.00 |
