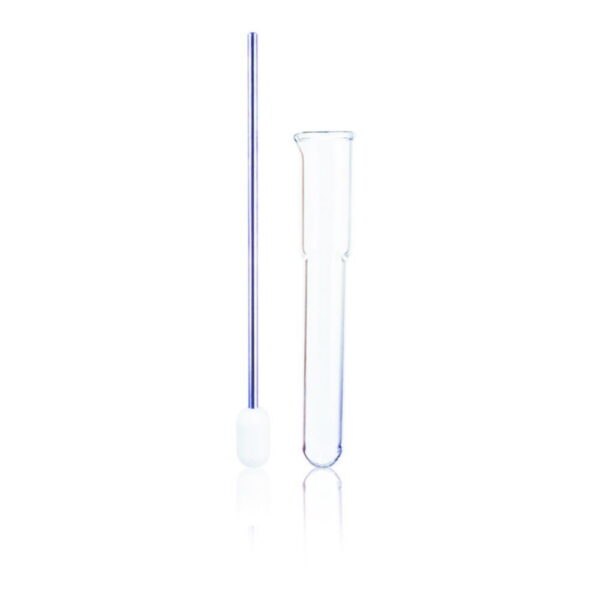

Homogenisers Potter-Elvehjem, with PTFE pestle
With PTFE pestle and glass mortar. Sizes 21 and 24 have notches on the bottom edge of the pestle so that particles can be transported up to the cylindrical part of the mortar for extraction. The space between the pestle and mortar is between 0.1mm to 0.15mm. Spare components are available and are completely interchangeable.
Toote variatsioonid
| Catalog number | PK | Length pestle | Material mortar | Material pestle | Mortar Ø | Nominal capacity | Pestle Ø | Shape (Homogenisers) | With pestle | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.651 692 | 1.00 | 215 mm | Boro 3.3 | PTFE | 15 mm | 5 ml | 6 mm | Acc. to Potter-Elvehjem | Yes | ||
| 9.651 690 | 1.00 | 154 mm | Boro 3.3 | PTFE | 12 mm | 1 ml | 5 mm | Acc. to Potter-Elvehjem | Yes | ||
| 9.651 694 | 1.00 | 266 mm | Boro 3.3 | PTFE | 25 mm | 17 ml | 6 mm | Acc. to Potter-Elvehjem | Yes | ||
| 9.651 691 | 1.00 | 154 mm | Boro 3.3 | PTFE | 12 mm | 3 ml | 5 mm | Acc. to Potter-Elvehjem | Yes | ||
| 9.651 693 | 1.00 | 212 mm | Boro 3.3 | PTFE | 19 mm | 8 ml | 6 mm | Acc. to Potter-Elvehjem | Yes | ||
| 9.651 695 | 1.00 | 269 mm | Boro 3.3 | PTFE | 32 mm | 45 ml | 6 mm | Acc. to Potter-Elvehjem | Yes |
