Hose connectors for Waste Caps
For the connection of tubing on b.safe Waste Caps.
Toote variatsioonid
| Colour | Description | Version | Bore mm | For tubing bore mm | Length mm | Material | Catalog number | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|
| white | Hose connection (NPT 1/8") | Angle 90° | 5 | 6,5 ... 8 | 30 | PP | 4.681 620 | 1.00 | ||
| white | Hose connection (NPT 1/8") | bent | 4 | 6 ... 8 | 45 | PTFE | 4.681 619 | 1.00 | ||
| white | Hose connection (NPT 1/8") | Angle 90° | 7 | 9,5 ... 10,5 | 32 | PP | 4.681 621 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 1.8 | 2 ... 3 | 23 | PP | 4.681 622 | 1.00 | ||

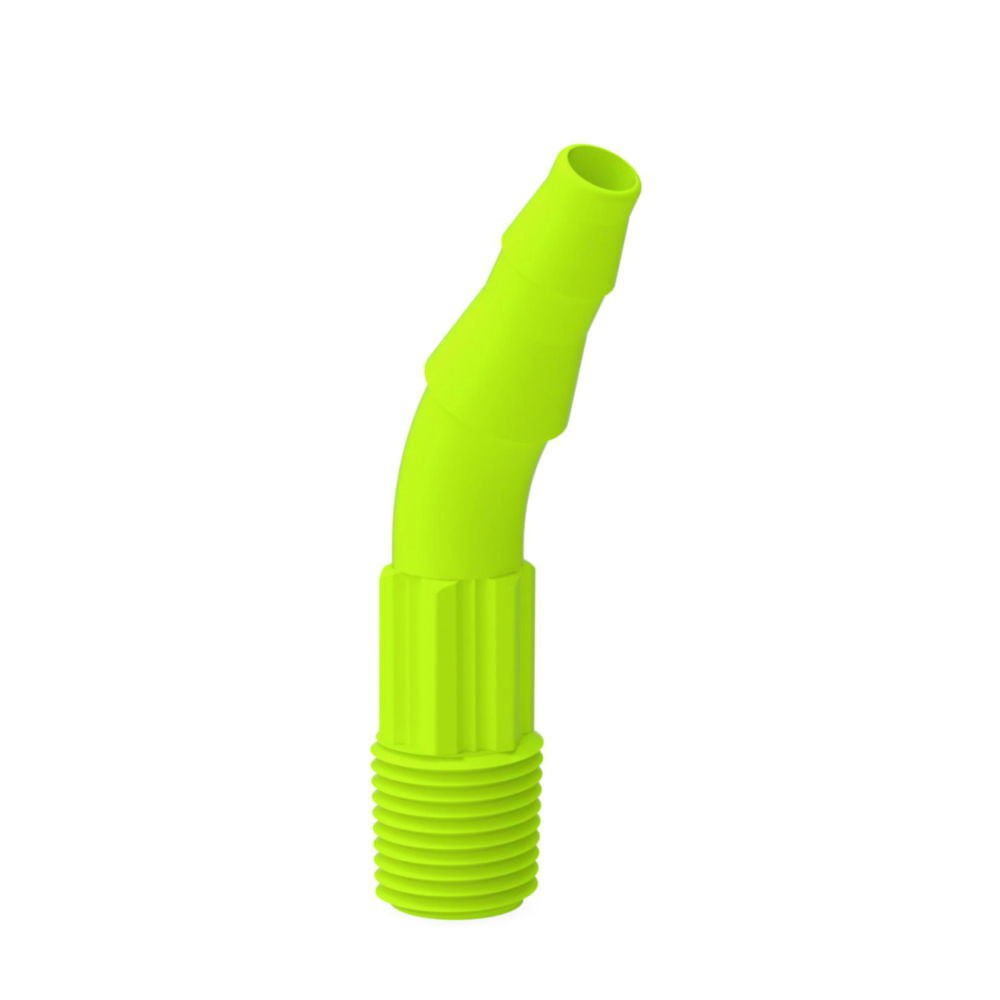

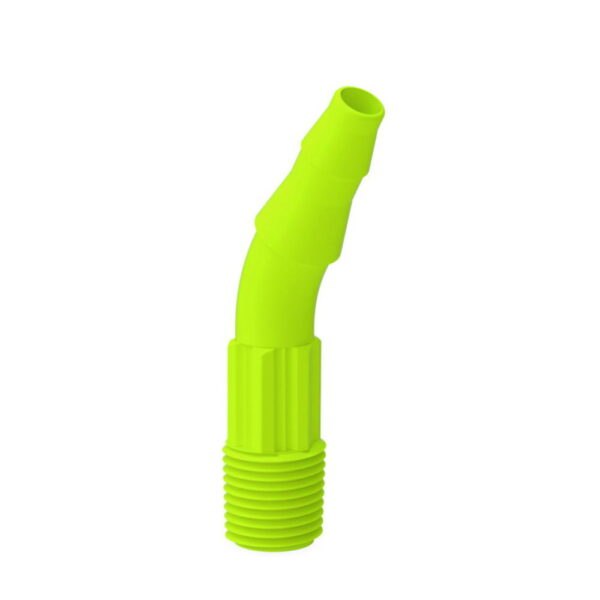

| yellow | Hose connection (NPT 1/8") | bent | 4 | 5,5 ... 8 | 45 | PP | 4.681 618 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 3.5 | 5 ... 6 | 30 | PP | 4.681 625 | 1.00 | ||
| white | NPT 1/4" | Angle 90° | 10 | 12 ... 13,5 | 41 | PP | 4.681 644 | 1.00 | ||
| white | Male luerlock | straight | 3.2 | 4 ... 5 | 21 | PP | 4.681 648 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 7 | 9 ... 10,5 | 40 | PP | 4.681 628 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 2.8 | 4 ... 5 | 26 | PP | 4.681 624 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 4.8 | 6,5 ... 8 | 36 | PP | 4.681 626 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 4 | 6 ... 8 | 45 | PTFE | 4.681 627 | 1.00 | ||
| white | NPT 1/4" | straight | 10 | 12 ... 13,5 | 48 | PP | 4.681 643 | 1.00 | ||
| white | Capillary connection (UNF 1/4") | straight | 3.6 | 6 ... 8 | 30 | PP | 4.681 647 | 1.00 | ||
| white | Hose connection (NPT 1/8") | straight | 2.3 | 3 ... 4 | 26 | PP | 4.681 623 | 1.00 |
