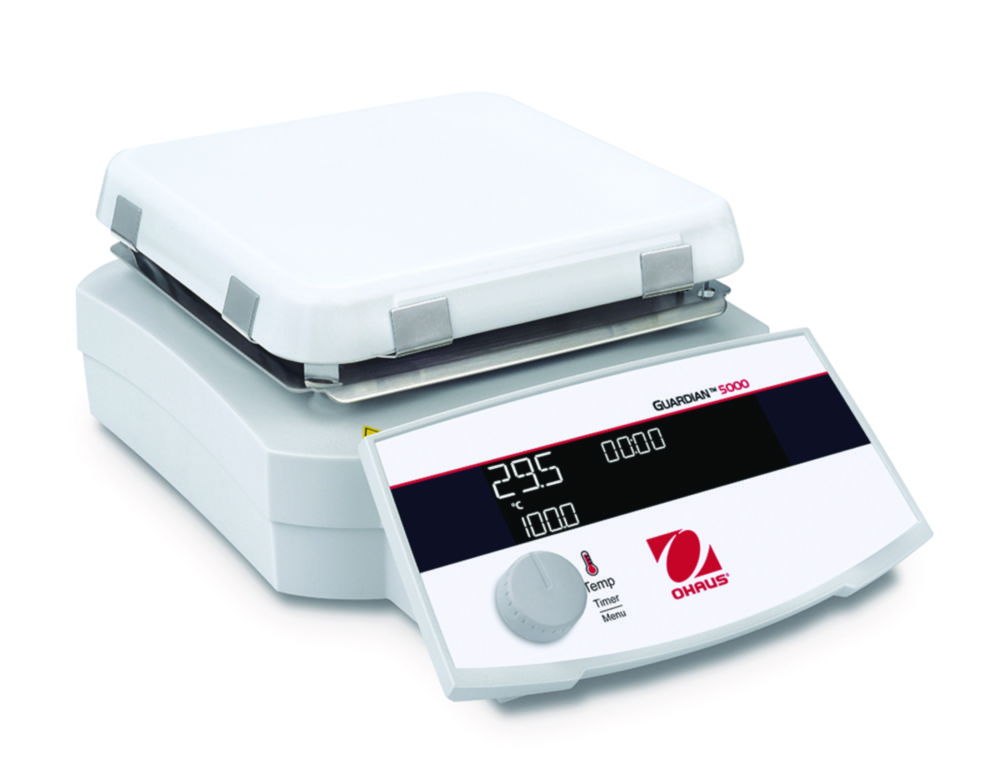

Hotplate Guardian™ 5000
The hotplate is designed for safety and versatility across research, academic and industrial settings. It offers powerful heating with premium hardware and software to support users safely and reliably.
SmartHeat™ safely controls and monitors the maximum temperature
SafetyHeat™ assures safety in heating applications with dual monitoring of system health
With connection for temperature sensor (Pt 100, Pt 1000)
Run dry protection with alarm
Timer from 1 min to 99 h 59 min
With RS232 interface
Toote variatsioonid
| Depth heating area | Depth | Display | Heating capacity | Height | IP code | atr_llg_material_hotplate | Material housing | Max. temperature | Max. voltage | Min. voltage | atr_llg_no_of_hotplates | Operation | Catalog number | Plug type | Type | Type of display | Weight | Width heating area | Width | PK | Dimensions (WxDxH) | Power supply | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 180 mm | 329 mm | Digital | 1050 W | 116 mm | IP 32 | Aluminium/Ceramic | Aluminium | 550 °C | 240 | 220 V | 1 | Rotary knob | 4.702 909 | EU | e-G52HP07C | LCD | 3.9 kg | 180 mm | 221 mm | 1.00 | 221 x 329 x 116 mm | 220 ... 240, 50/60 Hz, 7 A |
