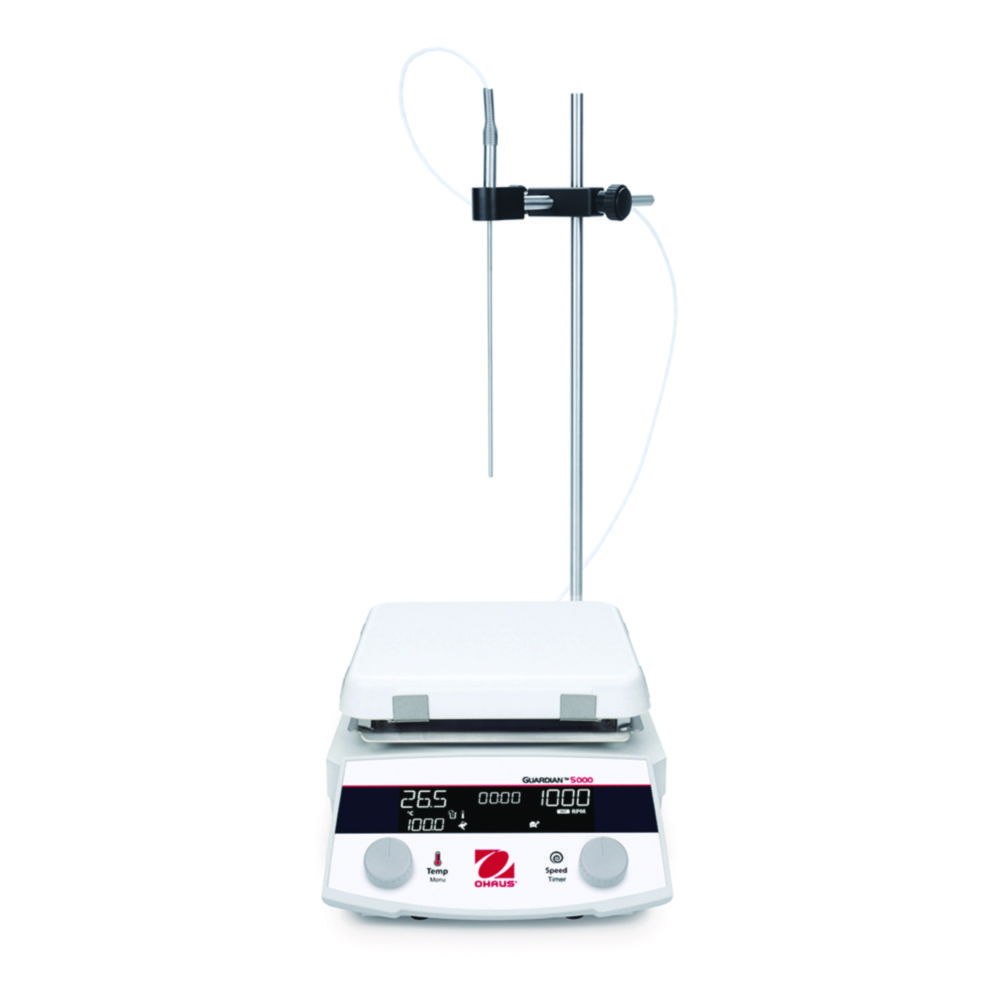

Hotplate stirrers Guardian™ 5000, with square top plate, Sets
SmartRate™ enables to select fast or slow temperature and speed ramp rates
SmartHeat™ safely controls and monitors the maximum temperature
SafetyHeat™ assures safety in heating applications with dual monitoring of system health
With connection for temperature sensor (Pt 100, Pt 1000)
Run dry protection with alarm
Timer from 1 min to 99 h 59 min
With RS232 interface
Scope of supply: Hotplate stirrer, temperature sensor Pt 1000, sensor holder kit
Toote variatsioonid
| Depth | Display | Heating capacity | Height | IP code | Material housing | Max. speed | Max. voltage | Min. speed | Min. voltage | Catalog number | Plug type | Type | Weight | Width | With timer | PK | Dimensions (WxDxH) | Power supply | Speed | Working area (WxD) | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 402 mm | Digital | 2066 W | 118 mm | IP 32 | Aluminium | 1800 1/min | 240 V | 50 1/min | 220 V | 4.702 916 | EU | e-G52HS10C-K1 | 6.7 kg | 287 mm | Yes | 1.00 | 287 x 402 x 118 mm | 220 ... 240 V, 50/60 Hz, 10 A | 50 ... 1800 1/min | 260 x 260 mm | ||
| 329 mm | Digital | 1050 W | 116 mm | IP 32 | Aluminium | 1800 1/min | 240 V | 50 1/min | 220 V | 4.702 915 | EU | e-G52HS07C-K1 | 4.6 kg | 221 mm | Yes | 1.00 | 221 x 329 x 116 mm | 220 ... 240 V, 50/60 Hz, 7 A | 50 ... 1800 1/min | 180 x 180 mm |
