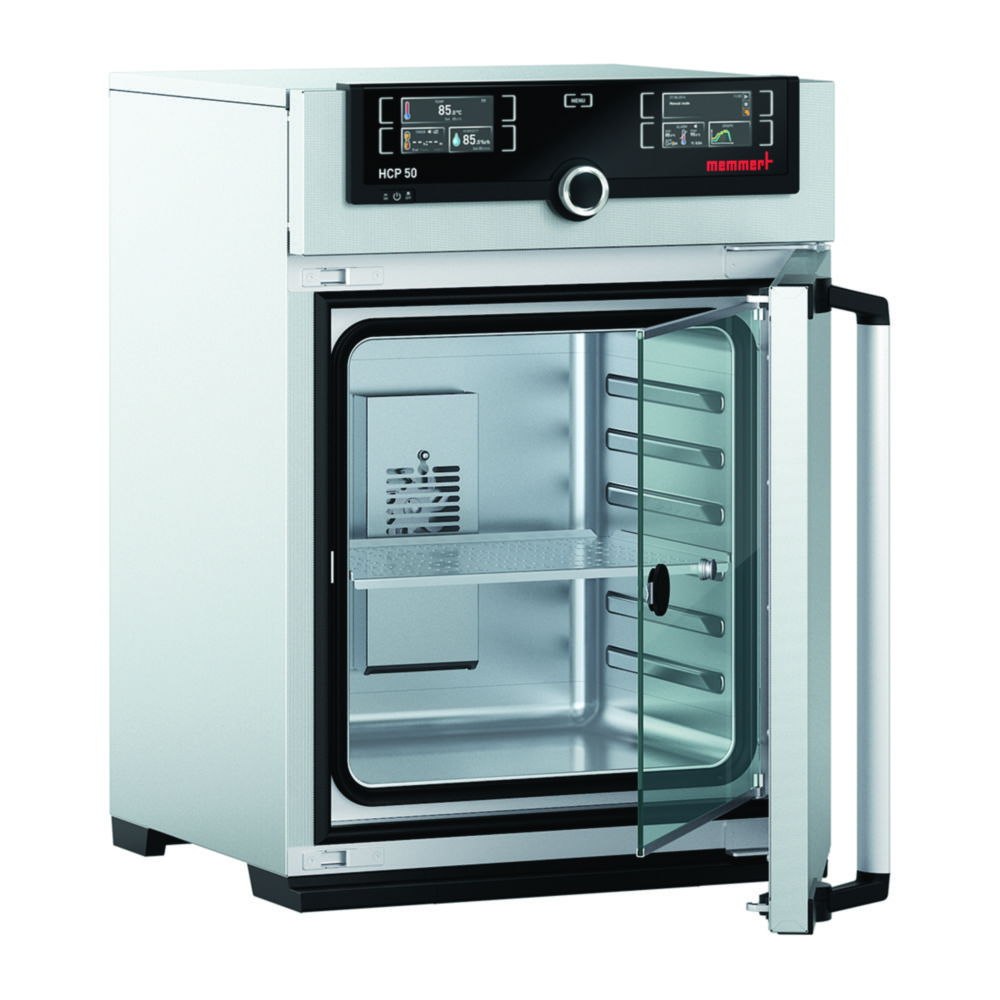

Humidity Chambers HCP

The Memmert humidity chamber HCP – This climate chamber offers a full range of comfort, reliability and safety. This humidity chamber is ideally suited for environmental testing, environmental simulation, accelerated service life tests and 85/85 tests according to IEC 60068-2-67 and IEC 60068-2-78.
The active humidity control is the guarantee for ideal homogeneity of temperature and humidity as well as for short recovery times after opening the door. In combination with heating on all six sides, including heated inner glass door, it also minimises vaporisation in the interior and thus the risk of condensed water dripping onto the test object. An aluminium thermal conductive layer supports optimum temperature distribution and serves as a heat accumulator in case of a temporary power failure.

Model variant TwinDISPLAY: ControlCOCKPIT with two colour displays
You can find a detailed description of the “TwinDISPLAY” model at www.memmert.com

Toote variatsioonid

Depth int.	External dimensions (WxDxH)	Ext. depth	Ext. height	Ext. width	Height int.	Internal dimensions (WxDxH)	Int. width	Material inserts	Material interior	Max. no. of inserts	Max. temperature	Max. voltage	Min. temperature	Nominal capacity	Catalog number	Power supply	Rated capacity	Temperature	Temperature	Type	Weight	With CO2 control	With timer	PK
400 mm	719 x 591 x 1070 mm	591 mm	1070 mm	719 mm	700 mm	560 x 400 x 700 mm	560 mm	Stainless steel	Stainless steel	10	90 °C	230 V	+7 °C	156 l	4.662 065	230 V, 50...60 Hz	1800 W	RT	RT+7 ... 90 °C	HCP150	90 kg	No	Yes	1.00
500 mm	759 x 691 x 1180 mm	691 mm	1180 mm	759 mm	810 mm	600 x 500 x 810 mm	600 mm	Stainless steel	Stainless steel	12	90 °C	230 V	+7 °C	241 l	4.662 066	230 V, 50...60 Hz	1840 W	RT	RT+7 ... 90 °C	HCP240	110 kg	No	Yes	1.00
400 mm	719 x 591 x 850 mm	591 mm	850 mm	719 mm	480 mm	560 x 400 x 480 mm	560 mm	Stainless steel	Stainless steel	6	90 °C	230 V	+7 °C	107 l	4.662 064	230 V, 50...60 Hz	1720 W	RT	RT+7 ... 90 °C	HCP105	75 kg	No	Yes	1.00
330 mm	559 x 521 x 795 mm	521 mm	795 mm	559 mm	425 mm	400 x 330 x 425 mm	400 mm	Stainless steel	Stainless steel	5	90 °C	230 V	+7 °C	56 l	4.662 063	230 V, 50...60 Hz	1520 W	RT	RT+7 ... 90 °C	HCP50	55 kg	No	Yes	1.00
