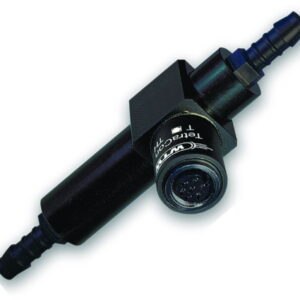

IDS conductivity cell probe LR 925/01
For connection to WTW IDS measuring instruments.
Intelligent digital 2-pole cell with integral temperature sensor and flowthrough cell D 01/T for measuring of low conductivity values (<1 µS/cm) e.g. in boiler feed water or ion exchange water. Automatical transfer of the cell constant. Min./max. immersion depth 35/110 mm.
Toote variatsioonid
| Cable length | Cell constant | Conductivity | Connection plug | Shaft length | Material shaft | Max. pressure | Max. temperature | Min. temperature | Catalog number | Shaft Ø | Temperature | Temperature sensor | Type | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.5 m | 0.100 1/cm | Digital | 120 mm | Stainless steel | 2 bar | 100 °C | 5 °C | 7.656 781 | 12 mm | -5 ... 100 °C | NTC 30 kOhm | LR 925/01 | 1.00 |
