IDS pH electrodes SenTix® Micro 900

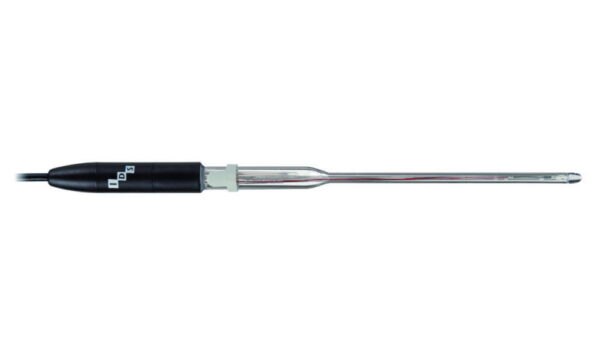

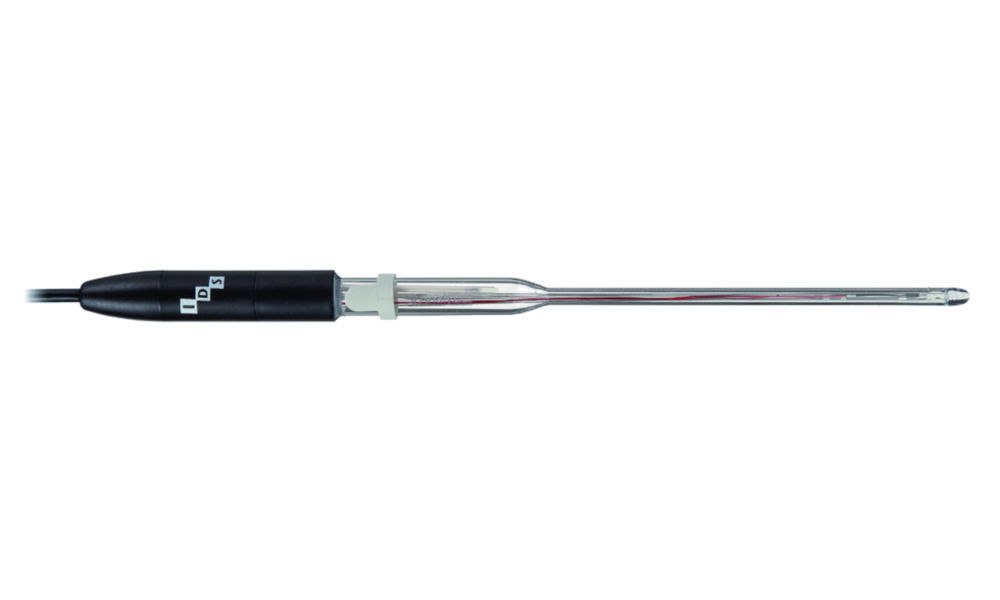

Precision pH electrode, lower shaft and diaphragm diameter 5 mm, for measurement in small vessels. With glass shaft, polymer liquid electrolyte. Shaft length 65/130 mm.
Toote variatsioonid
| Connection plug | Diaphragm | Electrolyte | Material shaft | Max. pH value | Max. temperature | Min. pH value | Min. temperature | Catalog number | pH range | Shape membrane | Temperature | Temperature sensor | Type | PK | Cable length | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Plug head | Platinum wire | KCl 3 mol/l | Glass | 14 | 100 °C | 139459 | 0 °C | 6.291 084 | 0 ... 14 | Cylinder | 0 ... 100 °C | NTC 30 kOhm | SenTix® Micro 900-P | 1.00 | - | ||
| Digital | Platinum wire | KCl 3 mol/l | Glass | 14 | 100 °C | 139459 | 0 °C | 7.940 530 | 0 ... 14 | Cylinder | 0 ... 100 °C | NTC 30 kOhm | SenTix® Micro 900 | 1.00 | 1.5 m |
