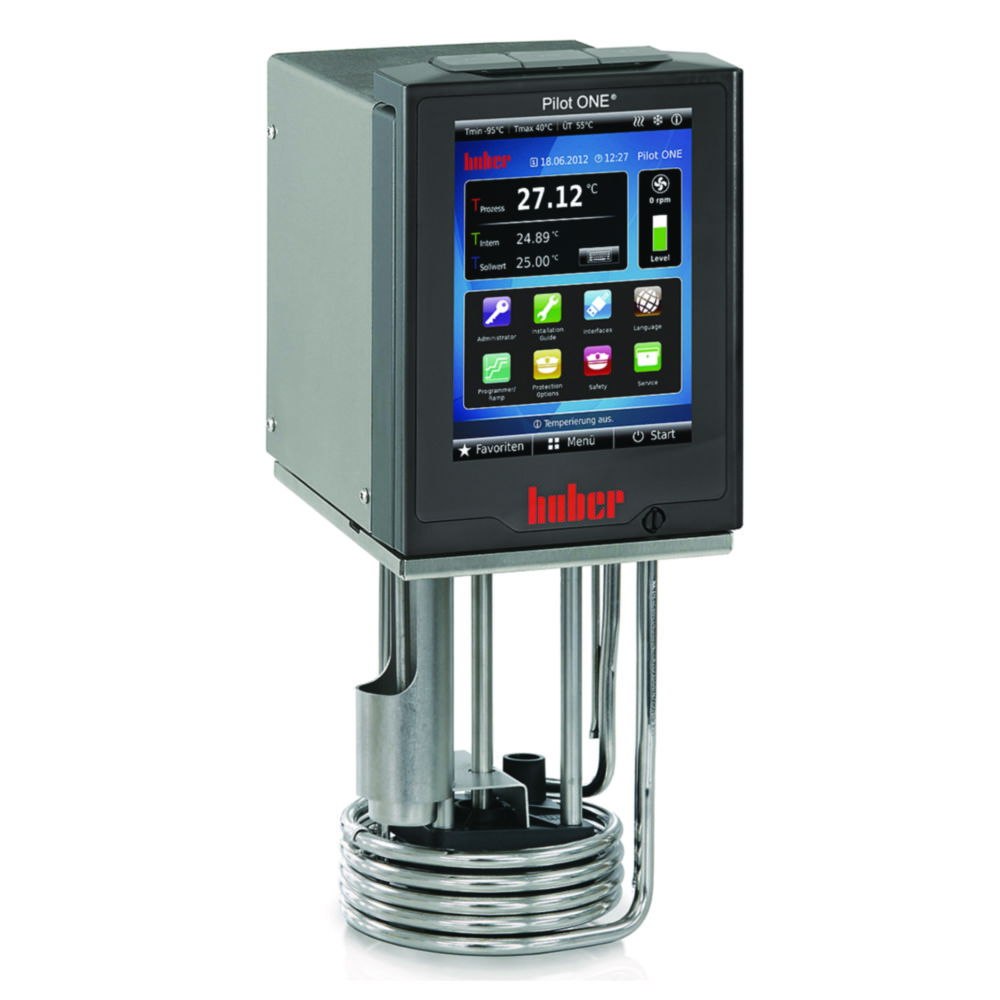

Immersion circulator CC-E
Immersion circulator with powerful pressure/suction pump and Pilot ONE controller with Plug & Play technology. The device is equipped with overtemperature and low level protection. The scope of supply includes a screw clamp, which allows the thermostats to be mounted very easily on any type of vessel. The electronic upgrade function “E-grade” allows a simple and cost-effective functional expansion at any time.
- Large and full colour 5.7″ TFT touchscreen
- Simple menu navigation in 13 languages
- Programmer with calendar/clock functions
- Ethernet, RS232 and USB interface
- Pt100 external sensor connection
- 2-point calibration for control sensors
- Safety class III (FL) acc. to DIN 12876
Toote variatsioonid
| Depth | Heating capacity | Height | IP code | Max. flow rate | Max. immersion depth | atr_llg_max_suction_capacity | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Operation | Catalog number | Programmable | Temp. Stability | Type | <th class='Type ofWeight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 159 mm | 2 kW | 360 mm | IP 20 | 195 mm | 17 l/min | 0.25 bar | 200 °C | 240 V | 25 °C | 200 V | Touchscreen | 6.313 816 | No | ±0,01 K | CC-E xd | <td data-title='Type of5 kg | 132 mm | 1.00 | |||
| 159 mm | 2 kW | 315 mm | IP 20 | 150 mm | 22 l/min | 0.4 bar | 200 °C | 240 V | 25 °C | 200 V | Touchscreen | 9.859 201 | No | ±0,01 K | CC-E | <td data-title='Type of4 kg | 132 mm | 1.00 |
