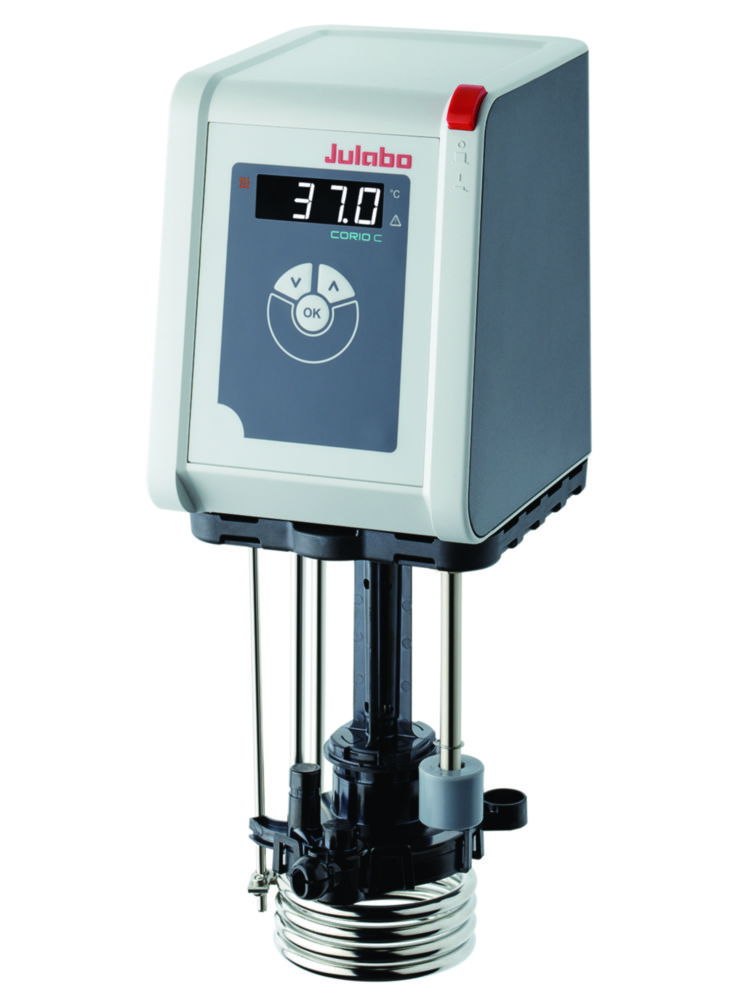

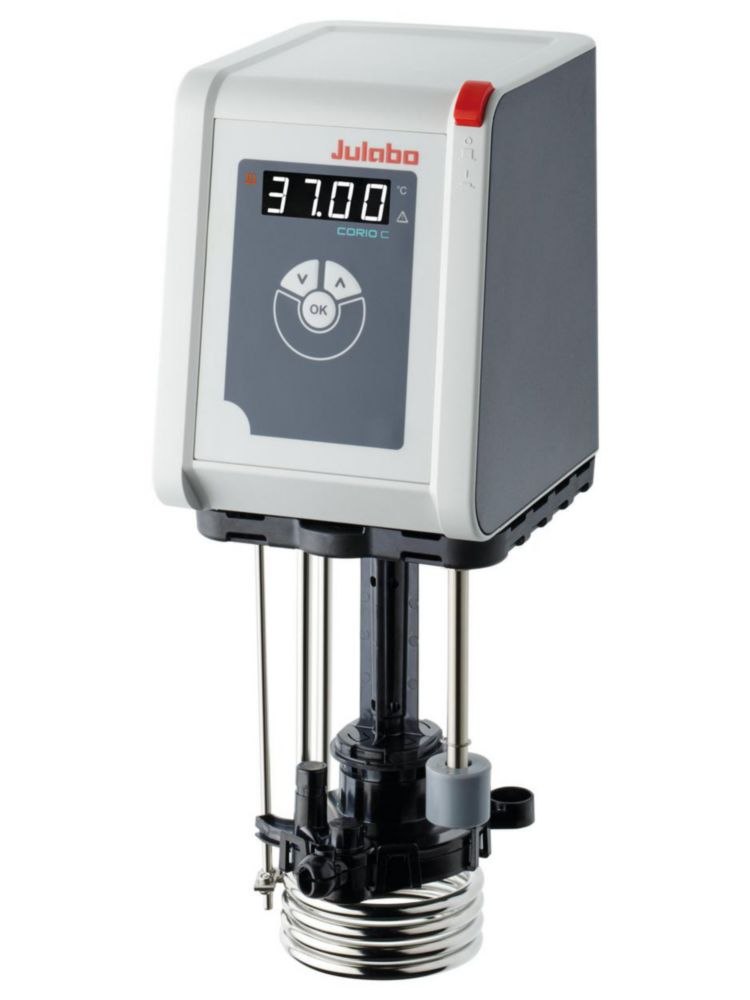

Immersion circulator CORIO™ C
The immersion circulator CORIO™ C is the basic model of the CORIO™ circulator portfolio. The bath attachment clamp is included in delivery and facilitates mounting of the circulator on any bath tank up to 30 litres.
- Precise temperature control
- For internal standard applications
- Bright, white, easy-to-read display
- Easy operation
- For bath tank up to 30 litres
- Timer: 0 to 999 min
- Class I (NFL) according to DIN 12876-1
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Heating capacity | Height | IP code | Max. flow rate | Max. immersion depth | Max. temperature | Max. voltage | Min. temperature | Operation | Catalog number | Plug type | Power supply | Temp. Stability | Temperature | Type | Type of display | Weight | Width | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 160 mm | 132 x 160 x 362 mm | 2 kW | 362 mm | IP 21 | 166 mm | 100 °C | 230 V | -20 °C | Membrane keyboard | 7.673 349 | EU | 230 V, 50 Hz, 9 A | ±0,03 °C | 20 ... 100 °C | CORIO™ C | LED | 1.9 kg | 132 mm | Yes | 1.00 |
