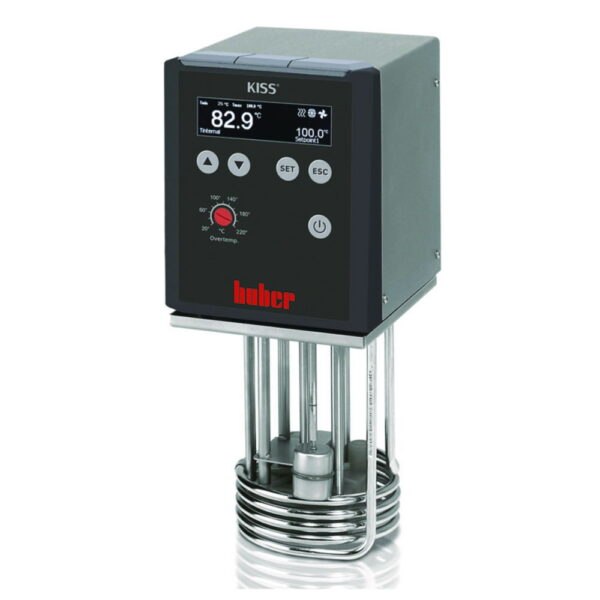

Immersion circulator KISS E
Immersion circulator with powerful pressure/suction pump and KISS controller. Ideally suited for a variety of typical laboratory applications, such as sample temperature control, analytics, material testing, as well as for external temperature control of measuring devices or test set-ups. The device is equipped with overtemperature and low level protection. The scope of supply includes a screw clamp, which allows the thermostats to be mounted very easily on any type of vessel.
- Large, bright OLED display
- Simple operation with menu navigation
- Simultaneous display of setpoint, actual temperature, Tmin, Tmax
- Status displays for pump, cooling and heating
- RS232 and USB interface
- Autostart function for power failure
- Safety class III (FL) acc. to DIN 12876
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Heating capacity | Height | IP code | Max. flow rate | Max. immersion depth | atr_llg_max_suction_capacity | atr_llg_max_suction_pressure | Max. temperature | Max. voltage | Min. temperature | Min. voltage | Catalog number | Power supply | Programmable | Temp. Stability | Temperature | Type | Type of display | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 163 mm | 132 x 163 x 312 mm | 2 kW | 312 mm | IP 20 | 150 mm | 10.5 l/min | 0.17 bar | 200 °C | 240 V | 25 °C | 200 V | 6.272 332 | 200 ... 240 V, 50/60 Hz | No | ±0,05 K | 25 ... 200 °C | KISS E | OLED | 4 kg | 132 mm | 1.00 |
