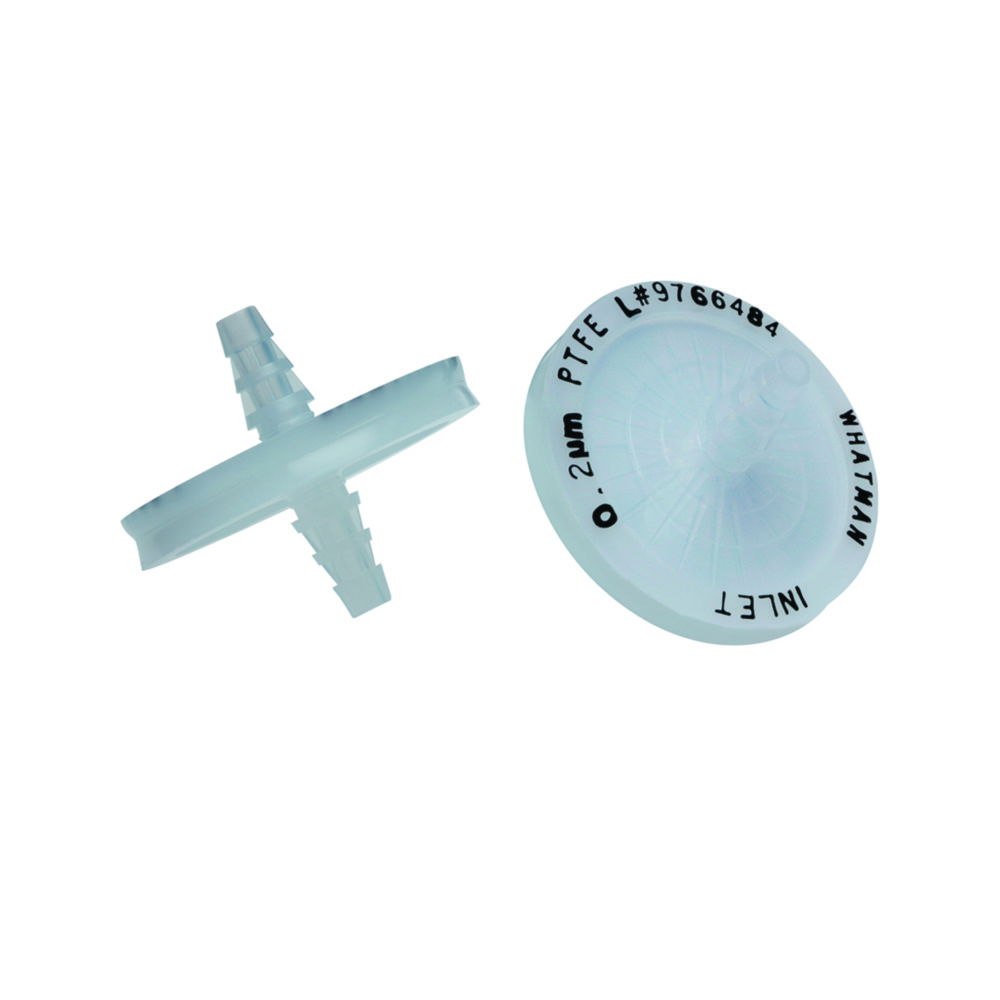

In-Line-Filter, disposable, Polydisc TF™
Mounted in a robust PP housing. All have a low hold-up volume. Dimensions: (diameter x length) 53 x 46mm.
Connections: For 6mm to 10mm diameter bore tubing. Also accept male luer slip.
- Hydrophobic PTFE membrane
- Pore sizes 0.1µm, 0.2µm, 0.45µm, 1.0µm
- 1µm pore size unit has a PP prefilter
- Autoclavable at 131°C for 20 minutes
- Maximum operating pressure 4.0 bar
Suitable for chemically aggressive solutions, reagents and organic solvents. Ideal for protective venting, in-line filtration and isolation applications. Non-sterile.
Toote variatsioonid
| Autoclavable | Feature | Material housing | Material membrane | Catalog number | Pore size | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|
| Yes | Hydrophobic | PP | PTFE | 9.951 096 | 0,1 µm | 10.00 | ||
| Yes | Hydrophobic | PP | PTFE | 9.951 097 | 0,2 µm | 10.00 | ||
| Yes | Hydrophobic | PP | PTFE | 9.951 098 | 0,45 µm | 10.00 | ||
| Yes | Hydrophobic | PP | PTFE | 9.951 099 | 1 µm | 10.00 |
