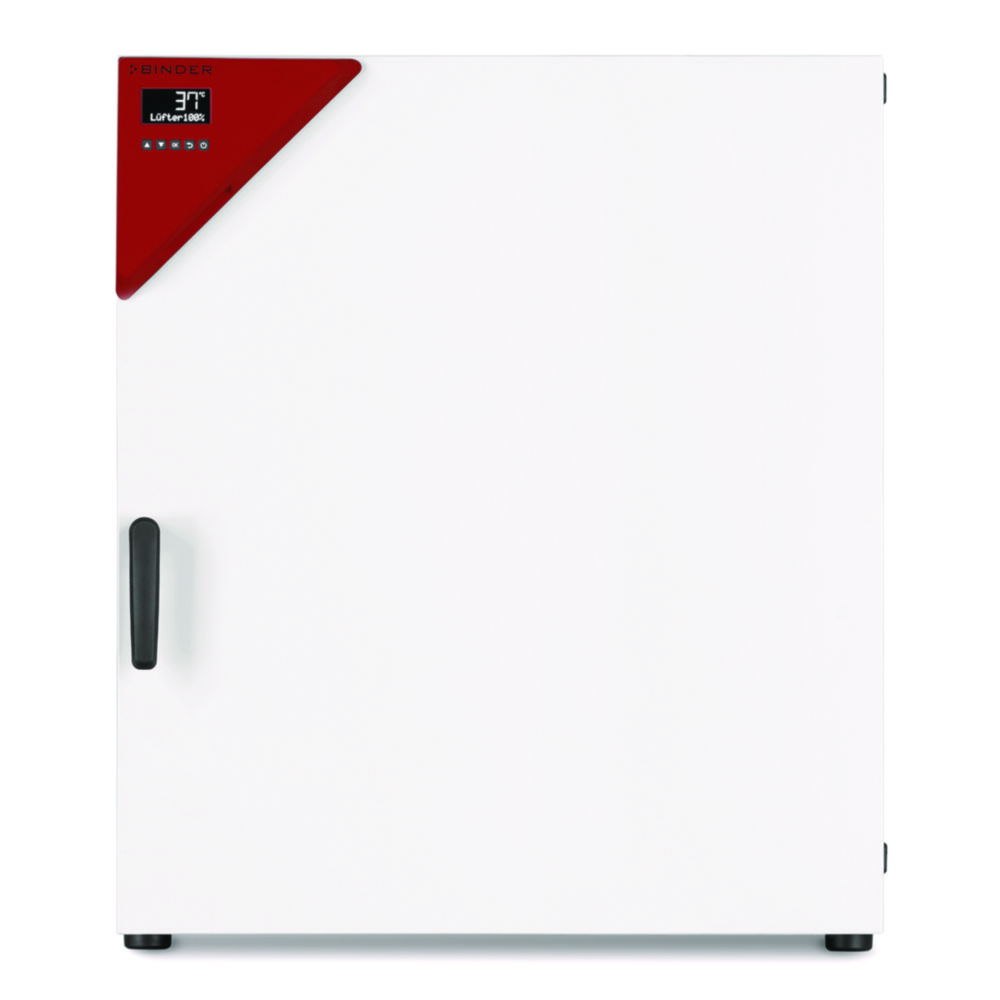

Incubators BD Avantgarde.Line
- Incubators with natural convection
Toote variatsioonid
| Depth int. | External dimensions (WxDxH) | Ext. depth | Ext. height | Ext. width | Height int. | Internal dimensions (WxDxH) | Int. width | IP code | Max. no. of inserts | Max. temperature | Max. voltage | Min. temperature | Nominal capacity | Catalog number | Plug type | Power supply | Rated capacity | Temp. Stability | Temperature | Temperature | Type | Weight | With timer | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 mm | 1,165 x 870 x 1590 mm | 870 mm | 1590 mm | 1165 mm | 1280 mm | 960 x 600 x 1280 mm | 960 mm | IP 20 | 16 | 100 °C | 240 V | 5 °C | 737 l | 4.705 504 | US | 240 V, 50/60 Hz | 1.75 kW | ±0,1 K (37 °C) | RT | RT+5 ... 100 °C | BD 720UL | 169 kg | Yes | 1.00 | ||
| 380 mm | 560 x 565 x 625 mm | 565 mm | 625 mm | 560 mm | 420 mm | 360 x 380 x 420 mm | 360 mm | IP 20 | 4 | 100 °C | 120 V | 5 °C | 57 l | 4.705 500 | US | 120 V, 60 Hz | 0.3 kW | ±0,1 K (37 °C) | RT | RT+5 ... 100 °C | BD 56UL | 39 kg | Yes | 1.00 | ||
| 545 mm | 810 x 760 x 940 mm | 760 mm | 940 mm | 810 mm | 760 mm | 610 x 545 x 760 mm | 610 mm | IP 20 | 8 | 100 °C | 120 V | 5 °C | 253 l | 4.705 502 | US | 120 V, 60 Hz | 0.95 kW | ±0,2 K (37 °C) | RT | RT+5 ... 100 °C | BD 260UL | 85 kg | Yes | 1.00 | ||
| 420 mm | 710 x 605 x 705 mm | 605 mm | 705 mm | 710 mm | 530 mm | 510 x 420 x 530 mm | 510 mm | IP 20 | 5 | 100 °C | 120 V | 5 °C | 112 l | 4.705 501 | US | 120 V, 60 Hz | 0.35 kW | ±0,1 K (37 °C) | RT | RT+5 ... 100 °C | BD 115UL | 54 kg | Yes | 1.00 | ||
| 600 mm | 1,165 x 870 x 1590 mm | 870 mm | 1590 mm | 1165 mm | 1280 mm | 960 x 600 x 1280 mm | 960 mm | IP 20 | 16 | 100 °C | 230 V | 5 °C | 737 l | 6.274 532 | EU | 230 V, 50...60 Hz | 1.65 kW | ±0,1 K (37 °C) | RT | RT+5 ... 100 °C | BD 720 | 169 kg | Yes | 1.00 | ||
| 380 mm | 560 x 565 x 625 mm | 565 mm | 625 mm | 560 mm | 420 mm | 360 x 380 x 420 mm | 360 mm | IP 20 | 4 | 100 °C | 230 V | 5 °C | 57 l | 6.280 269 | EU | 230 V, 50...60 Hz | 0.3 kW | ±0,1 K (37 °C) | RT | RT+5 ... 100 °C | BD 56 | 39 kg | Yes | 1.00 | ||
| 420 mm | 710 x 605 x 705 mm | 605 mm | 705 mm | 710 mm | 530 mm | 510 x 420 x 530 mm | 510 mm | IP 20 | 5 | 100 °C | 230 V | 5 °C | 112 l | 6.280 290 | EU | 230 V, 50...60 Hz | 0.35 kW | ±0,1 K (37 °C) | RT | RT+5 ... 100 °C | BD 115 | 54 kg | Yes | 1.00 | ||
| 545 mm | 810 x 760 x 940 mm | 760 mm | 940 mm | 810 mm | 760 mm | 610 x 545 x 760 mm | 610 mm | IP 20 | 8 | 100 °C | 230 V | 5 °C | 253 l | 6.280 291 | EU | 230 V, 50...60 Hz | 0.85 kW | ±0,2 K (37 °C) | RT | RT+5 ... 100 °C | BD 260 | 85 kg | Yes | 1.00 |
