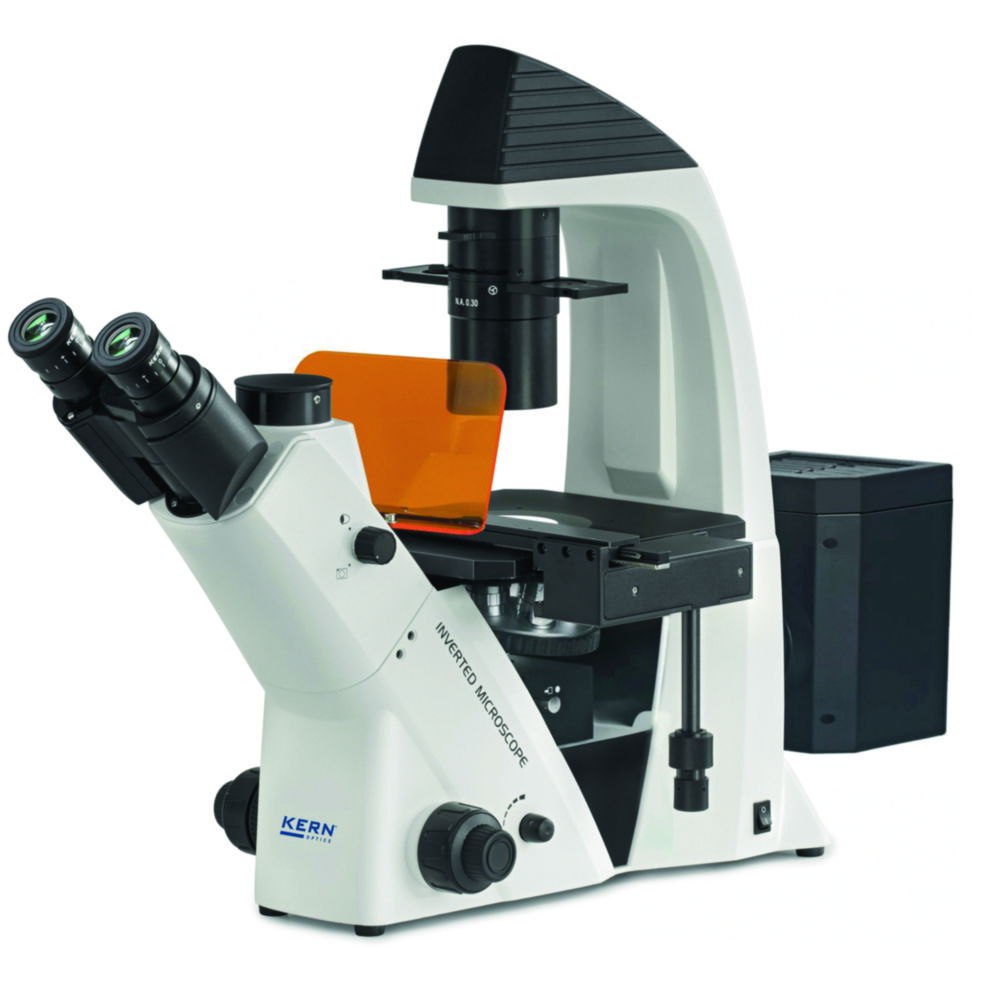

Inverted microscope Lab Line OCM
This design, with its large working distance of 72 mm, is particularly suitable for viewing samples in culture vessels (flasks, petri dishes, microtiter plates) and for translucent, thin, low-contrast, challenging samples (immunofluorescence, FISH, DAPI staining etc.).
- Diopter adjustment: both-sided
- Objective quality: Infinity Plan
- Mechanical stage, including specimen holder
- Abbe N.A. 0.3 condenser with aperture diaphragm
- OCM 161: 30 W halogen illumination
- OCM 162: 5W LED illumination
- OCM 165: 30 W halogen illumination and 100 W Epi fluorescence illumination unit
- Dust cover and manual instruction included
Toote variatsioonid
| Condenser | Depth | Dimensions (WxDxH) | Height | Light type | Catalog number | Revolving nosepiece | Tube | Type | Width | PK | Depth stage | Max. voltage | Min. voltage | Plug type | Power supply | Stage (WxD) | Weight | Width stage | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Abbe 0,3 | 304 mm | 782 x 304 x 530 mm | 530 mm | Halogen | 6.312 435 | 5-fold | Trinocular | OCM 165 | 782 mm | 1.00 | 241 mm | 240 V | 100 V | EU | 100 ... 240 V, 50/60 Hz | 210 x 241 mm | 22 kg | 210 mm | ||
| Abbe 0,3 | 335 mm | 660 x 335 x 600 mm | 600 mm | Halogen | 6.289 585 | 5-fold | Trinocular | OCM 161 | 660 mm | 1.00 | 241 mm | 240 V | 100 V | EU | 100 ... 240 V, 50/60 Hz | 210 x 241 mm | 15 kg | 210 mm |
