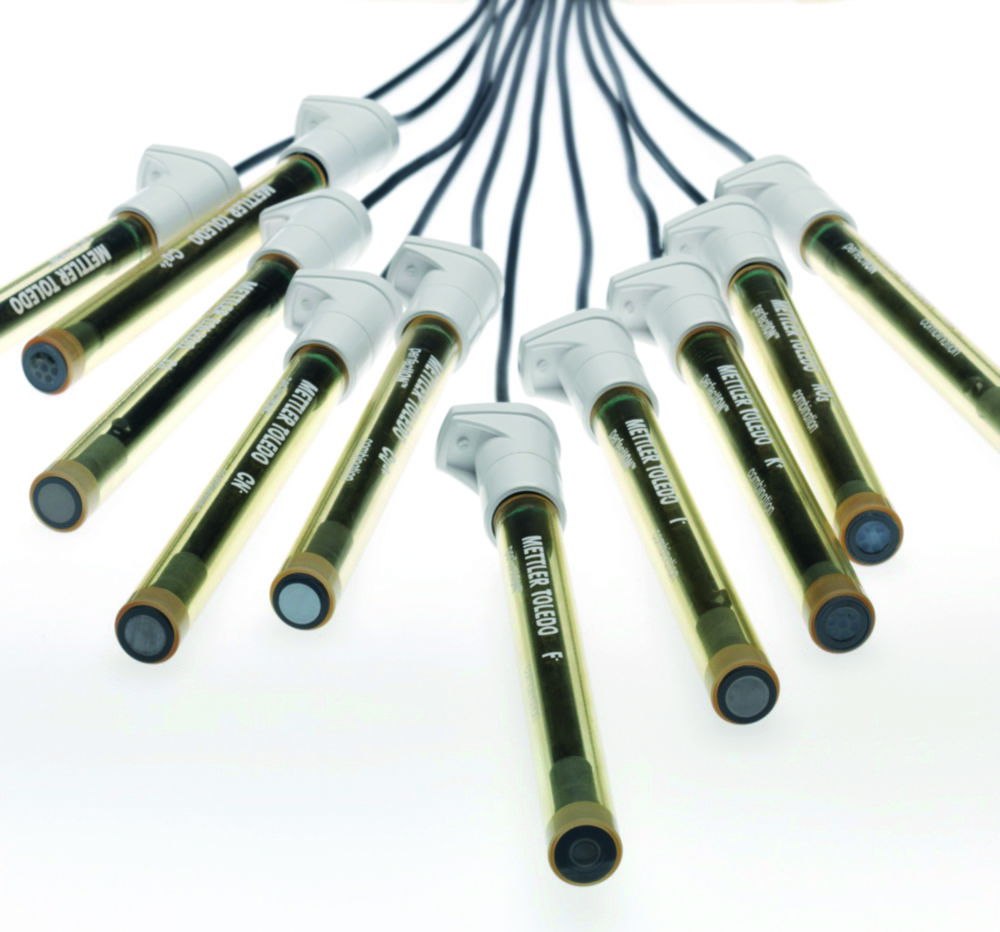

Ion selective combination electrodes perfectION™

With integrated reference electrode. Easy cleaning of the diaphragm between measurements with Click & Clear™ (except Na electrode): by pressing the electrode head, the electrolyte solution flows through the diaphragm. The electrolyte can be easily emptied and refilled. Optimum contact between sample and electrolyte solution is always guaranteed.

Scope of supply: Sensor with permanently connected 1.2 m cable with BNC connection, 60 ml reference electrolyte, operating instructions

Scope of supply Na-electrode: Sensor with S7 plug head, diaphragm made of glass with higher sensitivity to sodium, 25 ml reference electrolyte, operating instructions

Toote variatsioonid

Cable length	Connection plug	Shaft length	Material shaft	Max. temperature	Membrane	Catalog number	Shaft Ø	Temperature	Type	PK
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	9.041 175	12 mm	0 ... 80 °C	perfectION™ comb Pb	1.00
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	9.041 170	12 mm	0 ... 80 °C	perfectION™ comb Ag/S	1.00
1.2 m	BNC	120 mm	Epoxy	40 °C	Polymer	9.041 174	12 mm	0 ... 40 °C	perfectION™ comb K	1.00
-	S7 plug head	120 mm	Glass	80 °C	Glass	6.239 927	12 mm	0 ... 80 °C	perfectION™ comb Na	1.00
1.2 m	BNC	120 mm	Epoxy	40 °C	Polymer	9.041 169	12 mm	0 ... 40 °C	perfectION™ comb Ca	1.00
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	9.041 173	12 mm	0 ... 80 °C	perfectION™ comb I	1.00
1.2 m	BNC	120 mm	Epoxy	40 °C	Polymer	6.251 376	12 mm	0 ... 40 °C	perfectION™ comb NO3	1.00
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	9.041 172	12 mm	0 ... 80 °C	perfectION™ comb Cu	1.00
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	6.240 856	12 mm	0 ... 80 °C	perfectION™ comb Cl	1.00
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	9.041 171	12 mm	0 ... 80 °C	perfectION™ comb CN	1.00
1.2 m	BNC	120 mm	Epoxy	80 °C	Solid state	6.239 828	12 mm	0 ... 80 °C	perfectION™ comb F	1.00
