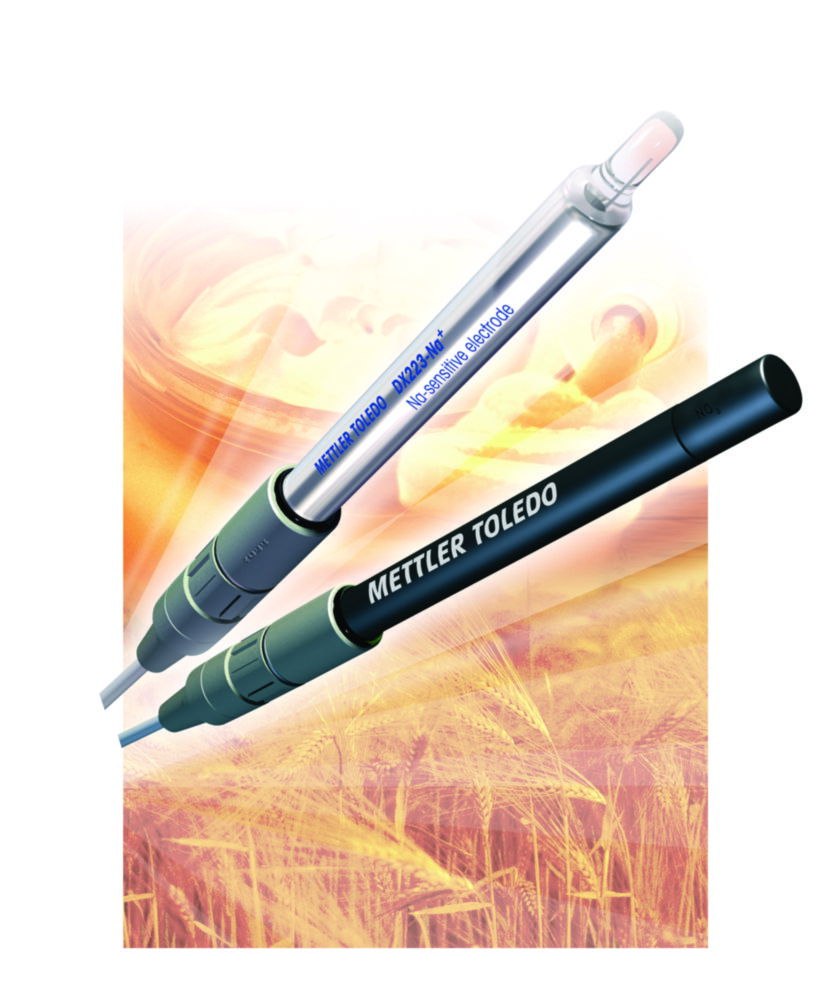

Ion selective, gas-sensitive electrodes
Modular half cell with exchangeable diaphragm and S-7 plug head for determining the concentration of individual ions in aqueous solutions. Easy to use and require comparatively low expenditure on apparatus thereby offering advantages over wet chemistry and instrument analysis methods. Ion selective electrodes must be used in conjunction with a suitable reference electrode (InLab® Reference, cat no. 9.041 590 or InLab® Reference Plus, cat no. 9.041 591).
Toote variatsioonid
| Connection plug | Shaft length | Max. temperature | Membrane | Min. temperature | Catalog number | Shaft Ø | Temperature | Type | PK | Material shaft | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S7 plug head | 120 mm | 50 °C | Polymer | 0 °C | 9.041 733 | 12 mm | 0 ... 50 °C | DX218-NH4 | 1.00 | - | ||
| S7 plug head | 120 mm | 50 °C | Polymer | 0 °C | 9.041 731 | 12 mm | 0 ... 50 °C | DX239-K | 1.00 | - | ||
| S7 plug head | 120 mm | 50 °C | Polymer | 0 °C | 9.041 730 | 12 mm | 0 ... 50 °C | DX240-Ca | 1.00 | - | ||
| S7 plug head | 120 mm | 80 °C | Solid state | 0 °C | 9.041 736 | 12 mm | 0 ... 80 °C | DX264-Cu | 1.00 | POM | ||
| S7 plug head | 120 mm | 50 °C | Polymer | 0 °C | 9.041 732 | 12 mm | 0 ... 50 °C | DX262-NO3 | 1.00 | - | ||
| S7 plug head | 120 mm | 50 °C | Polymer | 0 °C | 9.041 745 | 12 mm | 0 ... 50 °C | GSE NH3 | 1.00 | PPS | ||
| S7 plug head | 120 mm | 80 °C | Solid state | 0 °C | 9.041 725 | 12 mm | 0 ... 80 °C | DX219-F | 1.00 | POM | ||
| S7 plug head | 120 mm | 80 °C | Glass | 0 °C | 9.041 735 | 12 mm | 0 ... 80 °C | DX223-Na | 1.00 | Glass | ||
| S7 plug head | 120 mm | 80 °C | Solid state | 0 °C | 9.041 723 | 12 mm | 0 ... 80 °C | DX235-Cl | 1.00 | POM |
