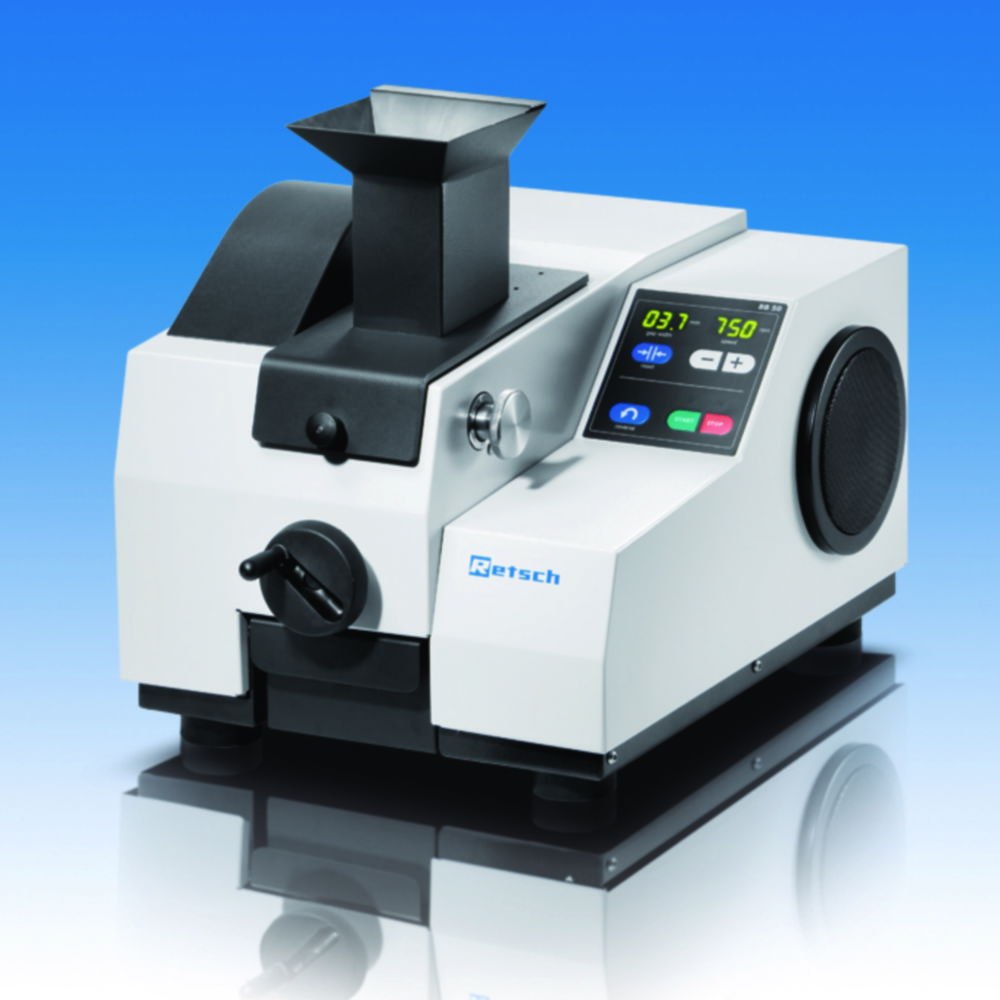

Jaw Crusher, BB 50
Benchtop Jaw Crusher for the rapid and gentle, coarse and preliminary size reduction of hard, brittle and ductile materials. Continuous digital gap width adjustment with scale, enhanced ultimate fineness up to 0.5 mm.
- Large fold-back hopper
- Removable crusher arm for easy cleaning
- Adjustable speed allows adaptation to sample characteristics
- Convenient operating keypad with digital display
- Memory for gap width setting
- Wear compensation with zero-point adjustment
- Throughput/charge: single items, charges to 3000 ml
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Gap adjustment | Height | IP code | atr_llg_max_final_fineness | atr_llg_max_gap_adjustment | Max. voltage | atr_llg_min_gap_adjustment | Min. voltage | Catalog number | Plug type | Power supply | Rated capacity | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 560 mm | 420 x 560 x 460 mm | 0 ... 11 mm | 460 mm | IP 20 | 0.5 mm | 11 mm | 240 V | 0 mm | 200 V | 9.738 774 | EU | 200 ... 240 V, 50/60 Hz | 1.1 kW | 79 kg | 420 mm | 1.00 | ||
| 560 mm | 420 x 560 x 460 mm | 0 ... 11 mm | 460 mm | IP 20 | 0.5 mm | 11 mm | 240 V | 0 mm | 200 V | 9.738 772 | EU | 200 ... 240 V, 50/60 Hz | 1.1 kW | 79 kg | 420 mm | 1.00 | ||
| 560 mm | 420 x 560 x 460 mm | 0 ... 11 mm | 460 mm | IP 20 | 0.5 mm | 11 mm | 240 V | 0 mm | 200 V | 9.738 773 | EU | 200 ... 240 V, 50/60 Hz | 1.1 kW | 79 kg | 420 mm | 1.00 | ||
| 560 mm | 420 x 560 x 460 mm | 0 ... 11 mm | 460 mm | IP 20 | 0.5 mm | 11 mm | 240 V | 0 mm | 200 V | 9.738 770 | EU | 200 ... 240 V, 50/60 Hz | 1.1 kW | 79 kg | 420 mm | 1.00 | ||
| 560 mm | 420 x 560 x 460 mm | 0 ... 11 mm | 460 mm | IP 20 | 0.5 mm | 11 mm | 240 V | 0 mm | 200 V | 9.738 771 | EU | 200 ... 240 V, 50/60 Hz | 1.1 kW | 79 kg | 420 mm | 1.00 |
