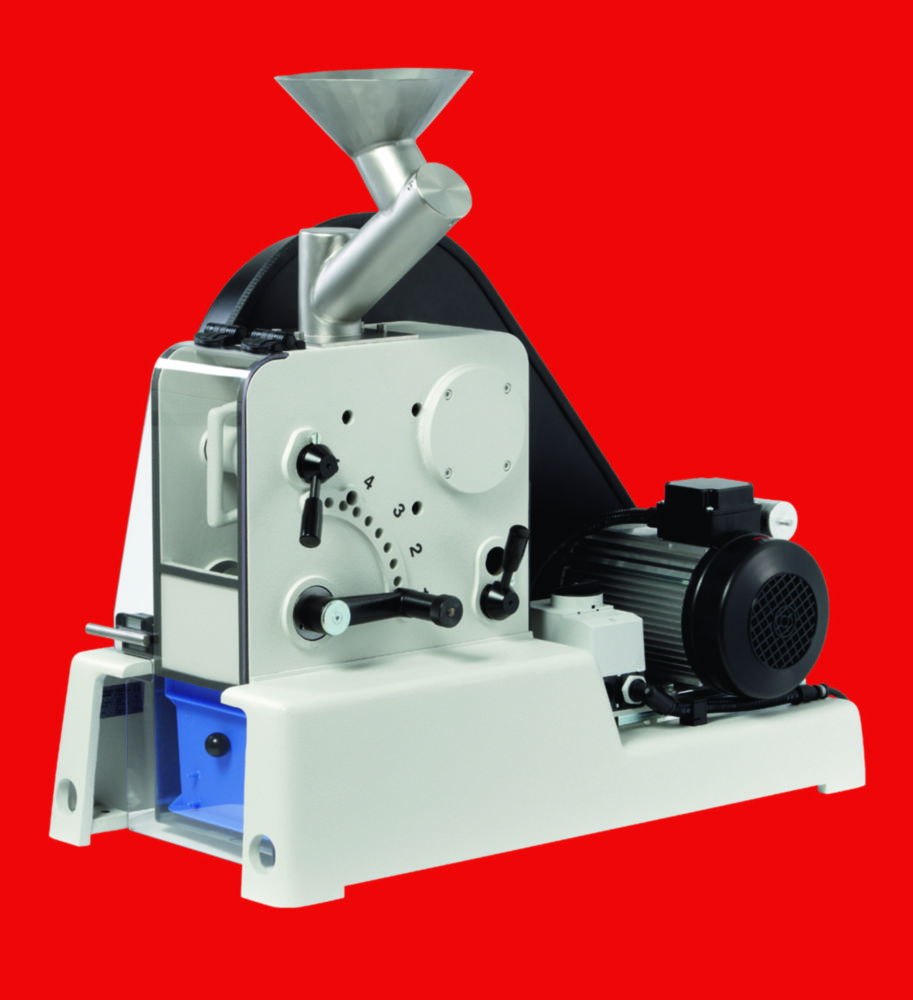

Jaw crushers PULVERISETTE 1 classic line
Ideal for fast batchwise or continuous pre-crushing of very hard to medium-hard, brittle and tough materials in the areas of mining and metallurgy, chemistry, geology and mineralogy, glass industry, ceramics industry, rocks and soils. The final fineness can be easily set from the outside (10 different stages are possible).
Scope of supply: Jaw crusher, crushing jaws, support walls made of tempered steel.
Crushers are also available in other voltages and with crushing jaws and lateral support walls made of stainless steel, chromium-free steel, hardmetal, tungsten carbide, zirconium oxide and manganese steel.
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Height | IP code | atr_llg_max_final_fineness | Max. throughput | Max. voltage | Catalog number | Power supply | Rated capacity | Type | Weight | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 800 mm | 500 x 800 x 800 mm | 800 mm | IP 54 | 1 mm | 200 kg/h | 400 V·3P+N+E | 9.519 223 | 400 V·3P+N+E, 50 Hz | 2600 W | PULVERISETTE 1 classic line, Modell II | 205 kg | 500 mm | 1.00 | ||
| 800 mm | 400 x 800 x 800 mm | 800 mm | IP 54 | 1 mm | 140 kg/h | 400 V·3P+N+E | 9.519 213 | 400 V·3P+N+E, 50 Hz | 1340 W | PULVERISETTE 1 classic line, Modell I | 177 kg | 400 mm | 1.00 |
