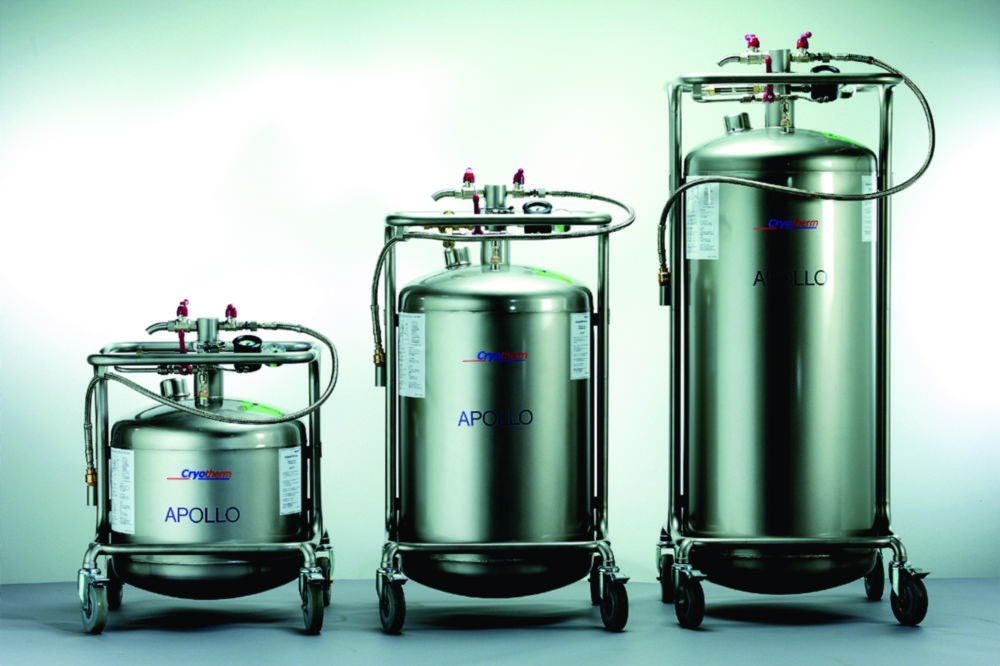

KGW Vacuum-insulated stainless steel container Type APOLLO
Liquid nitrogen container made of stainless steel for storage and transport of liquid nitrogen.
High mechanical stability, the container is made of stainless steel. Low evaporation rate by multi-layer superinsolation in the vacuum space. Very durable by robust constructive design, production and choice of material. Long holding time by the use of adsorption and getter materials.
Standard equipment:
- Integrated safety devices at the container neck Vacuum lock with safety valve
- Easy running castors
- Mini-flange-joint NW 50 KF
- Transfer siphon with transfer hose covered with metallic tissue
- Hand and protection ring Contents gauge
- Pressure attachment by fluid removal without external power supply
Toote variatsioonid
| Ø | Dimensions (ØxH) | Static evaporation rate | Height | Material container | Nominal capacity | Catalog number | Specimen storage | Type | Weight | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 70 mm | 70 x 117 mm | 0.6 %/24h | 117 mm | Stainless steel | 198 l | 6.235 694 | No | Apollo 200 | 100 kg | 1.00 | ||
| 70 mm | 70 x 165 mm | 0.5 %/24h | 165 mm | Stainless steel | 348 l | 6.258 210 | No | Apollo 350 | 160 kg | 1.00 | ||
| 50 mm | 50 x 80 mm | 2.0 %/24h | 80 mm | Stainless steel | 49.5 l | 6.237 295 | No | Apollo 50 | 44 kg | 1.00 | ||
| 50 mm | 50 x 146 mm | 1.0 %/24h | 146 mm | Stainless steel | 149.5 l | 6.236 079 | No | Apollo 150 | 79 kg | 1.00 | ||
| 50 mm | 50 x 114 mm | 1.2 %/24h | 114 mm | Stainless steel | 99.2 l | 6.234 109 | No | Apollo 100 | 62 kg | 1.00 |
