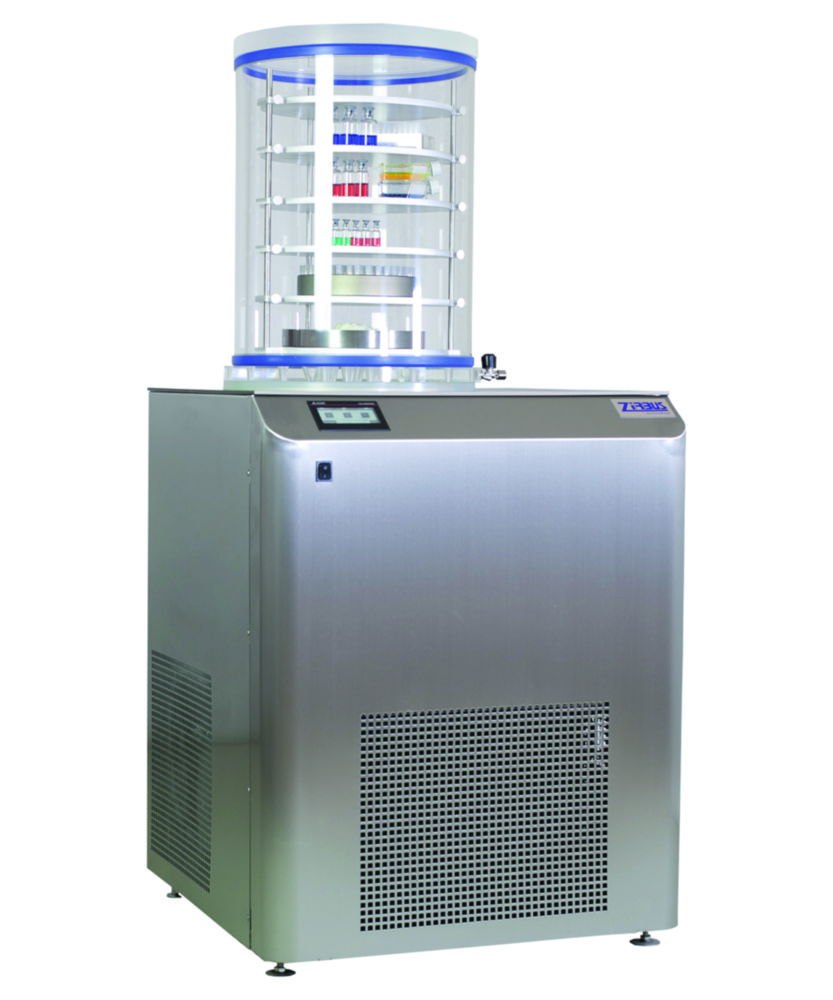

Laboratory freeze dryer VaCo 10
- Ice condenser (Ø x H): 400 x 400 mm
- Adjustable parameters for each drying stage: Hold-up time, vacuum setpoint, (shelf space temperature (with the option heated shelf spaces)
- Automatic defrosting of the ice condenser
- Variable shelf space
The perfectly matched single parts of the modular system can be combined individually. All required parts of the optional accessories must be ordered separately.
Toote variatsioonid
| Catalog number | PK | atr_llg_capacitor_volume | atr_llg_capacity_condensor | Depth | Dimensions (WxDxH) | Height | atr_llg_max_ice_capacity | Max. voltage | Power supply | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.863 451 | 1.00 | 50 l | 15 kg/24h | 750 mm | 750 x 750 x 900 mm | 900 mm | 20 kg | 400 V | 400 V, 50/60 Hz | VaCo 10 | 90 kg | 750 mm | ||
| 9.863 450 | 1.00 | 50 l | 15 kg/24h | 750 mm | 750 x 750 x 900 mm | 900 mm | 20 kg | 230 V | 230 V, 50...60 Hz | VaCo 10 | 75 kg | 750 mm |
