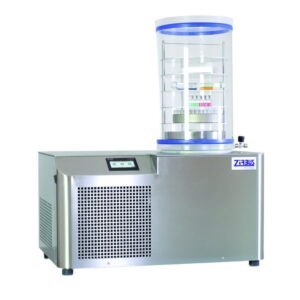

Laboratory freeze dryer VaCo 5
-Adjustable parameters for each drying stage: Hold-up time, vacuum setpoint, shelf space temperature (with the option heated shelf spaces)
The perfectly matched single parts of the modular system can be combined individually. All required parts of the optional accessories must be ordered separately.
- Specifications
- Ice condenser
- Temperature: -50 °C or -80 °C
- Ice condensor capacity: 5 kg / 24 h
- max. ice capacity: 8 kg
- Volume: 16 l
- Cooling system: one-stage (-50 °C) / two-stage (-80 °C)
- Material: Stainless steel 1.4404/AiSi316L
- Dimensions (Ø x H ): 270 x 280 mm
- Basic unit
- Weight: 60 or 75 kg (depending on the version ice condenser)
- Dimensions (W x D x H): 800 x 530 x 400 mm
- Power supply: 230 V, 50/60 Hz
Toote variatsioonid
| Type | Catalog number | PK | Kogus | |
|---|---|---|---|---|
| Sublimator VaCo 5 - Ice condenser -80 °C | 9.863 441 | 1.00 | ||
| Sublimator VaCo 5 - Ice condenser -50 °C | 9.863 440 | 1.00 | ||
| Basic unit VaCo 5 | 4.672 316 | 1.00 | ||
| Ice condenser -80 °C | 4.672 318 | 1.00 | ||
| Ice condenser -50 °C | 4.672 317 | 1.00 |
