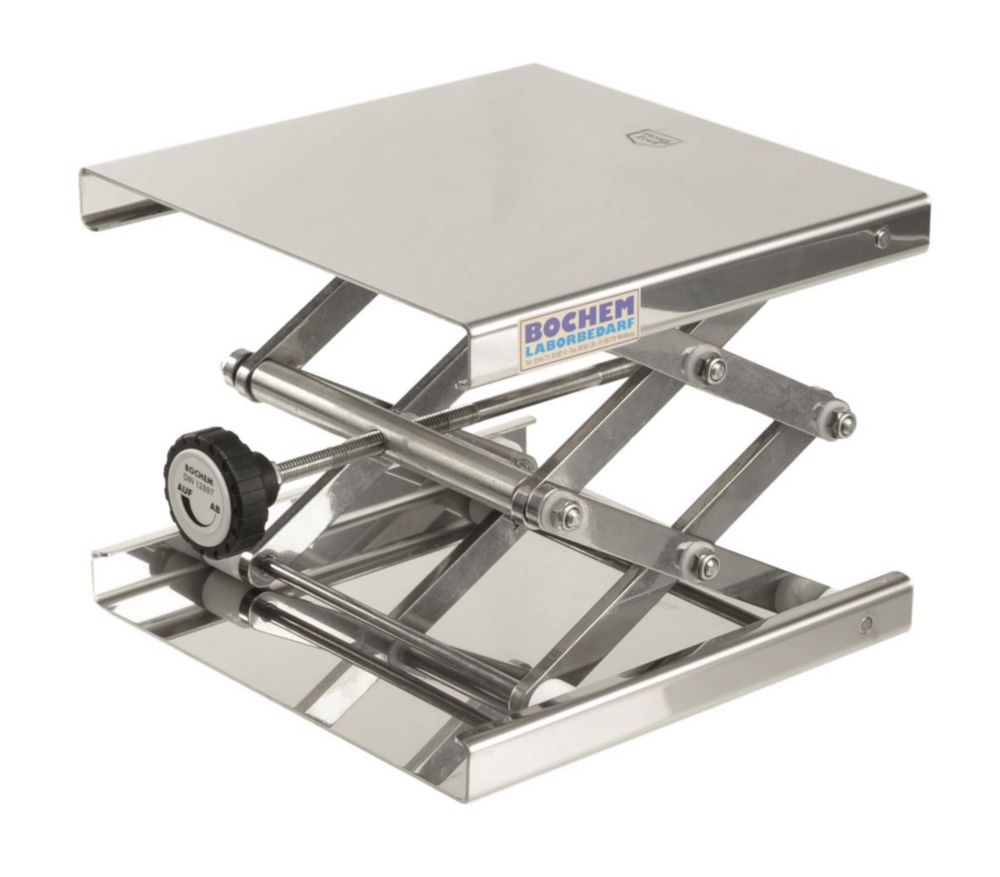

Laboratory jacks, 18/10-stainless steel
For the operating load a distinction is made between the maximal dynamic operating load (Kg max. dyn.) and the maximal static operating load (Kg max. stat.) of the lab jack.
- All models are manufactured according to DIN 12897
- Scissor technology with reduced tolerances
- Scissor-construction made of 18/10-stainless steel
- Ergonomic knob, rounded and user friendly
- With simple adjusting wheel, which can be operated by hand
Toote variatsioonid
| Depth | Dimensions (WxD) | Material | Catalog number | Width | PK | Kogus | |
|---|---|---|---|---|---|---|---|
| 100 mm | 100 x 100 mm | Stainless steel 1.4301 | 9.118 923 | 100 mm | 1.00 | ||
| 240 mm | 240 x 240 mm | Stainless steel 1.4301 | 9.118 926 | 240 mm | 1.00 | ||
| 200 mm | 200 x 200 mm | Stainless steel 1.4301 | 9.118 925 | 200 mm | 1.00 | ||
| 160 mm | 130 x 160 mm | Stainless steel 1.4301 | 9.118 924 | 130 mm | 1.00 |
