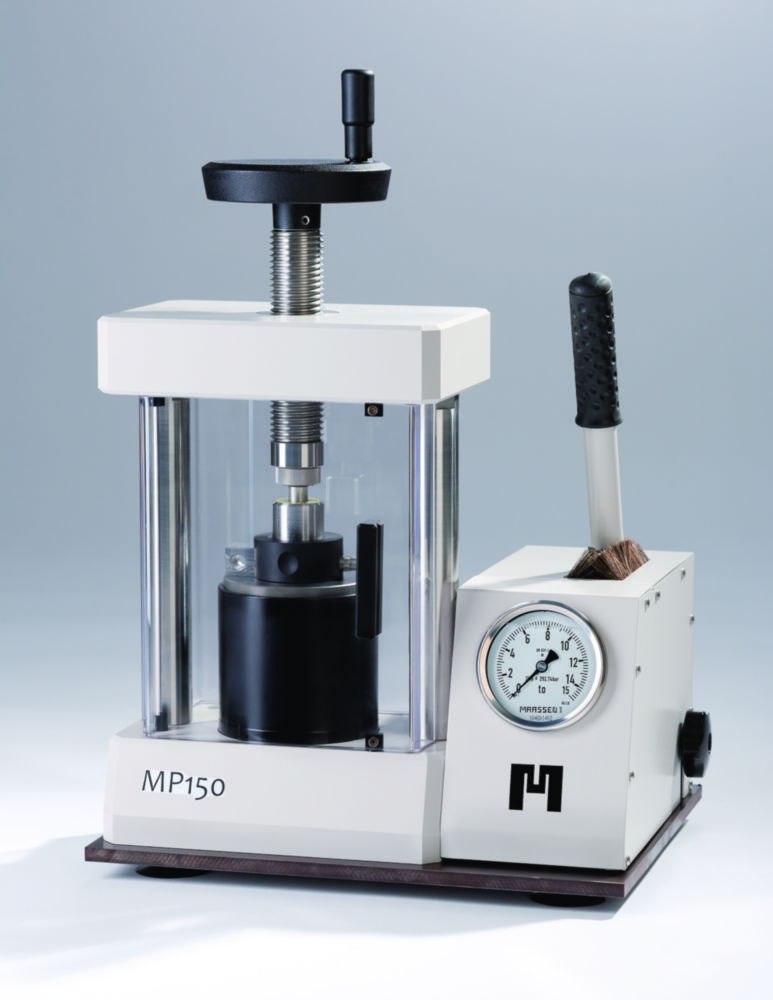

Laboratory presses MP150
With pressure gauge (MP150) or digital pressure display (MP150D). Press for up to 15 tons pressure. Recommended for press dies up to 18 mm. Please order press dies separately.
Toote variatsioonid
| Catalog number | PK | Cylinder Ø | Depth | Dimensions (WxDxH) | Display | Height | Max. clearance height | Max. pressure | Max. voltage | Min. pressure | Power supply | Pressure | Resolution | Type | Weight | Width | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6.290 215 | 1.00 | 105 mm | 400 mm | 360 x 400 x 497 mm | Digital | 497 mm | 142 mm | 15 t | 12 V | 1 t | 12 V | 1 ... 15 t | 0.01 t | MP150D | 43 kg | 360 mm | ||
| 6.290 214 | 1.00 | 105 mm | 400 mm | 360 x 400 x 497 mm | Analogue | 497 mm | 142 mm | 15 t | - | 1 t | - | 1 ... 15 t | 0.5 t | MP150 | 43 kg | 360 mm |
