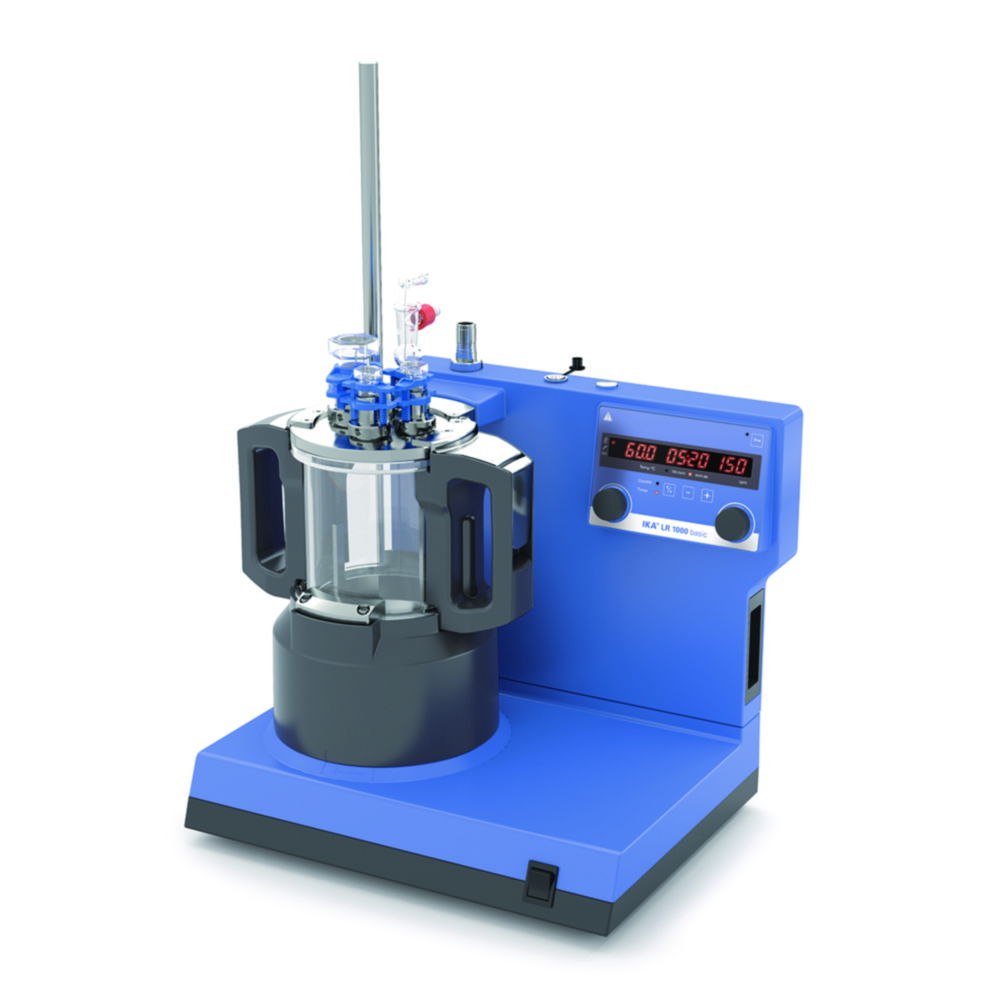

Laboratory reactor LR 1000 basic System
Scope of supply: Basic device, laboratory reactor vessel LR 1000.1, sensor receptacle LR 1000.61, temperature sensor PT 100.30, support rod, 2 hose connectors for cooling hoses
Toote variatsioonid
| Depth | Dimensions (WxDxH) | Heating capacity | Height | IP code | Max. speed | Max. vacuum | Max. Viscosity | Max. voltage | Min. speed | Catalog number | Power supply | Speed | Type | Weight | Width | Working volume | PK | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 295 mm | 443 x 295 x 360 mm | 1000 W | 360 mm | IP 21 | 150 1/min | 25 mbar | 100000 mPa·s | 230 V | 10 1/min | 4.691 532 | 230 V, 50...60 Hz | 10 ... 150 1/min | LR 1000 basic System | 16 kg | 443 mm | 300 ... 1,000 ml | 1.00 |
