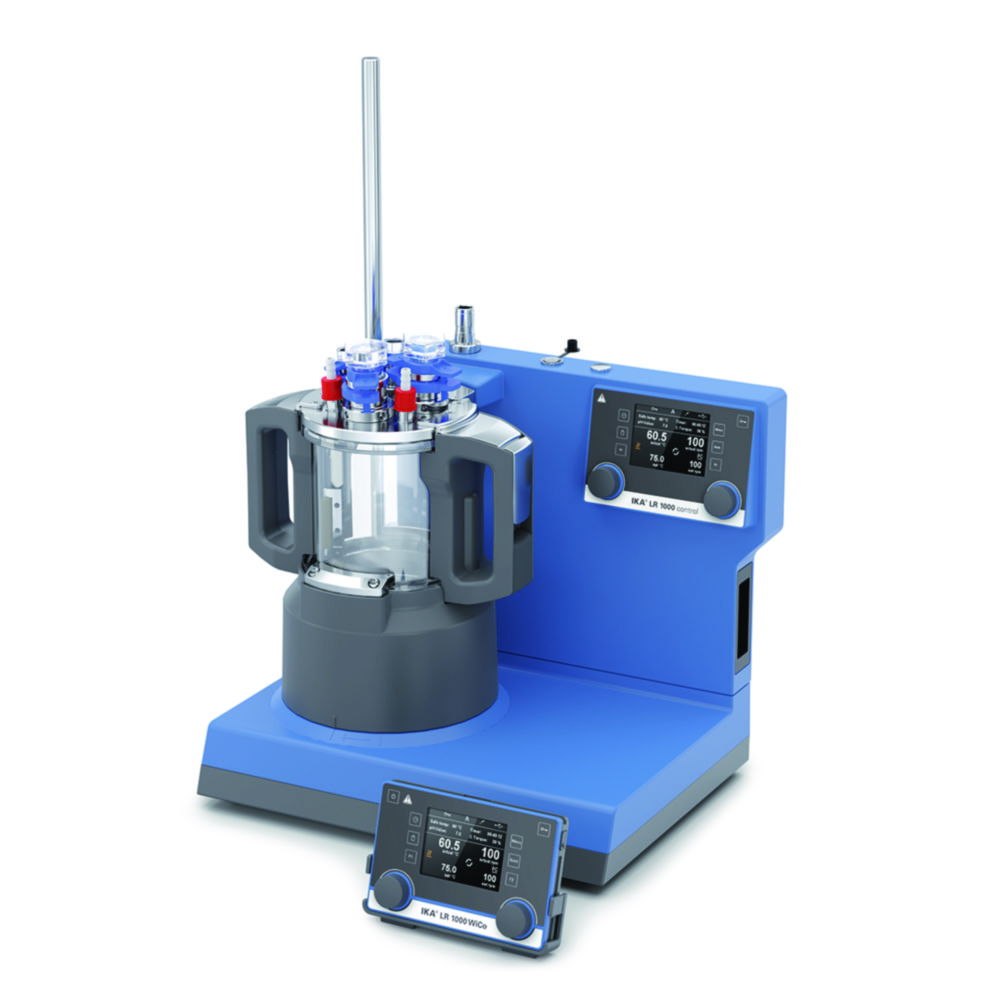

Laboratory reactor LR 1000 control System
Prominent features are its intuitive menu navigation, integrated pH and temperature sensor connection as well as several interfaces that allow display and storage of process-relevant data on a PC. By using the optional laboratory software labworldsoft® it is possible to even control the reactor via PC and make further settings. In addition, a control valve connection to attach an optional magnetic valve for program-based cooling water control is integrated.
Scope of supply: Basic device, laboratory reactor vessel LR 1000.3, anchor stirrer LR 1000.10, sensor receptacle LR 1000.62, temperature sensor PT 100.30, flow breaker, support rod, 2 hose connectors, USB cable
Toote variatsioonid
| Catalog number | Type | PK | Depth | Heating capacity | Height | IP code | Max. speed | Max. vacuum | Max. Viscosity | Max. voltage | Min. speed | Weight | Width | Dimensions (WxDxH) | Power supply | Speed | Working volume | Kogus | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 9.729 969 | LR 1000 control System | 1.00 | 295 mm | 1000 W | 360 mm | IP 21 | 150 1/min | 25 mbar | 100000 mPa·s | 230 V | 10 1/min | 16 kg | 443 mm | 443 x 295 x 360 mm | 230 V, 50...60 Hz | 10 ... 150 1/min | 300 ... 1,000 ml |
