Laboratory threaded joints, GL 14

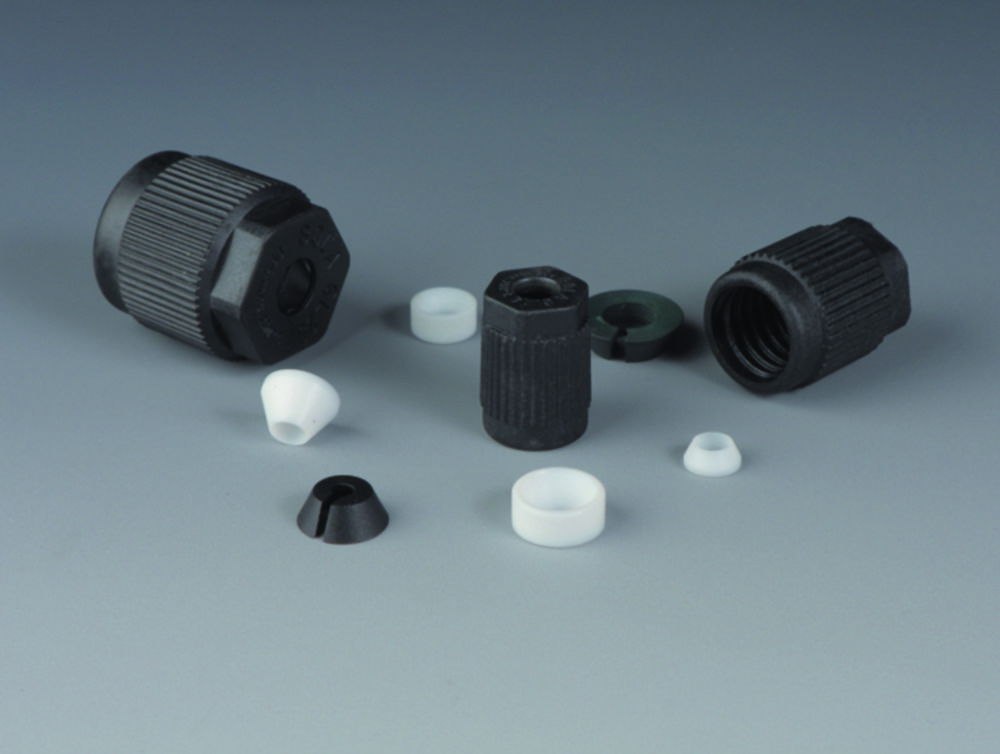

Connecting equipment and fittings with GL threads with hard-walled tubing or tubes made of glass, plastic or metal. Fixing probes, thermometers, dip tubes or cables in reaction vessels. Black screw caps made of PPS, inner parts consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE) as well as an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). Good chemical resistance, the medium is only exposed to PTFE. Temperature resistant from -50 to 250 °C, pressure stable up to 10 bar, suitable for vacuum.
Toote variatsioonid
| Colour | Material | Catalog number | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|
| Black | PPS | 6.084 147 | GL 14 | 1.00 | ||
| Black | PPS | 7.603 089 | GL 14 | 1.00 | ||
| Black | PPS | 6.304 933 | GL 14 | 1.00 | ||
| Black | PPS | 6.237 145 | GL 14 | 1.00 | ||
| Black | PPS | 6.900 068 | GL 14 | 1.00 | ||
| Black | PPS | 6.307 187 | GL 14 | 1.00 | ||
| Black | PPS | 6.901 758 | GL 14 | 1.00 | ||
| Black | PPS | 6.303 128 | GL 14 | 1.00 | ||
| Black | PPS | 7.601 156 | GL 14 | 1.00 | ||
| Black | PPS | 6.307 933 | GL 14 | 1.00 |
