Laboratory threaded joints, GL 18

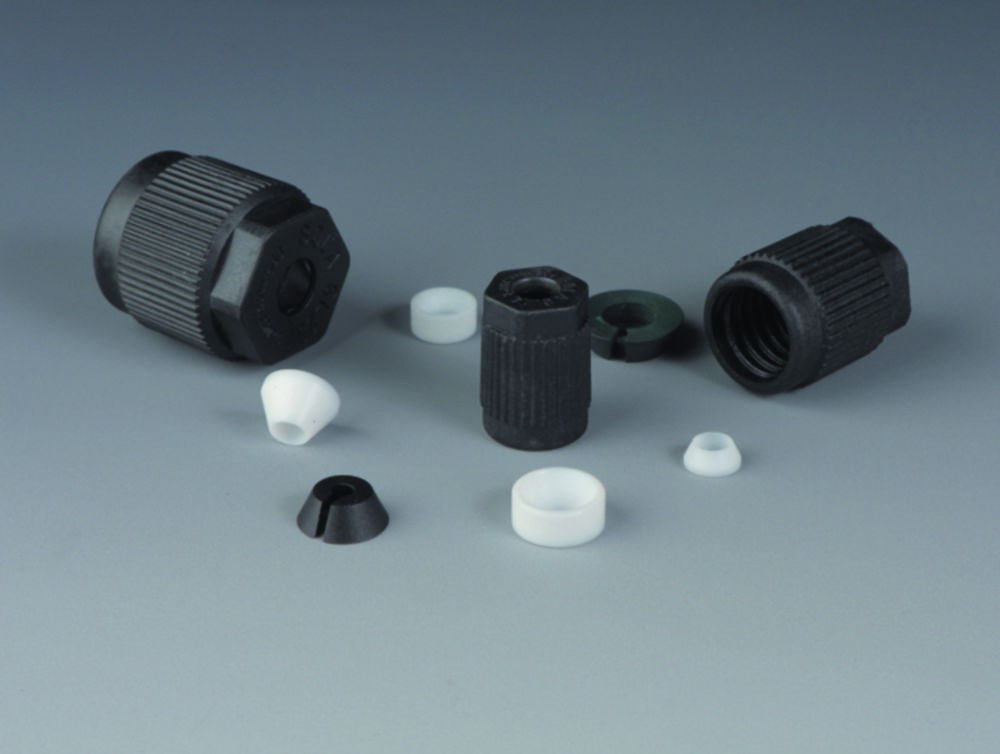

Connecting equipment and fittings with GL threads with hard-walled tubing or tubes made of glass, plastic or metal. Fixing probes, thermometers, dip tubes or cables in reaction vessels. Black screw caps made of PPS, inner parts consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE) as well as an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). Good chemical resistance, the medium is only exposed to PTFE. Temperature resistant from -50 to 250 °C, pressure stable up to 10 bar, suitable for vacuum.
Toote variatsioonid
| Colour | Material | Catalog number | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|
| Black | PPS | 6.900 008 | GL 18 | 1.00 | ||
| Black | PPS | 6.088 255 | GL 18 | 1.00 | ||
| Black | PPS | 6.203 275 | GL 18 | 1.00 | ||
| Black | PPS | 7.603 090 | GL 18 | 1.00 | ||
| Black | PPS | 6.800 812 | GL 18 | 1.00 | ||
| Black | PPS | 6.800 813 | GL 18 | 1.00 | ||
| Black | PPS | 6.900 009 | GL 18 | 1.00 | ||
| Black | PPS | 6.401 350 | GL 18 | 1.00 | ||
| Black | PPS | 6.800 818 | GL 18 | 1.00 | ||
| Black | PPS | 7.603 086 | GL 18 | 1.00 |
