Laboratory threaded joints, GL 45

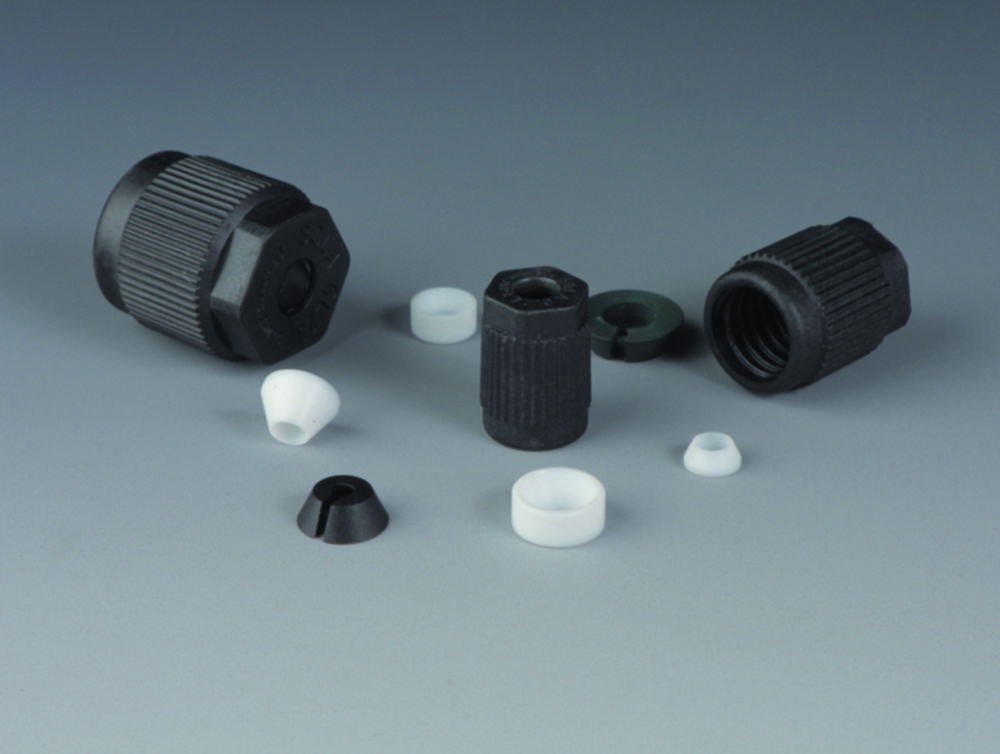

Connecting equipment and fittings with GL threads with hard-walled tubing or tubes made of glass, plastic or metal. Fixing probes, thermometers, dip tubes or cables in reaction vessels. Black screw caps made of PPS, inner parts consisting of a v-ring (PPS), a tapered ring and a sealing ring (both PTFE) as well as an o-ring (FKM) for tubing diameters under 3 mm (not exposed to the medium). Good chemical resistance, the medium is only exposed to PTFE. Temperature resistant from -50 to 250 °C, pressure stable up to 10 bar, suitable for vacuum.
Toote variatsioonid
| Colour | Material | Catalog number | Thread | PK | Kogus | |
|---|---|---|---|---|---|---|
| Black | PPS | 9.209 901 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 902 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 904 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 908 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 905 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 914 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 906 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 913 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 903 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 912 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 911 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 909 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 907 | GL 45 | 1.00 | ||
| Black | PPS | 9.209 910 | GL 45 | 1.00 |
